Wiring Diagram - SHIFT -

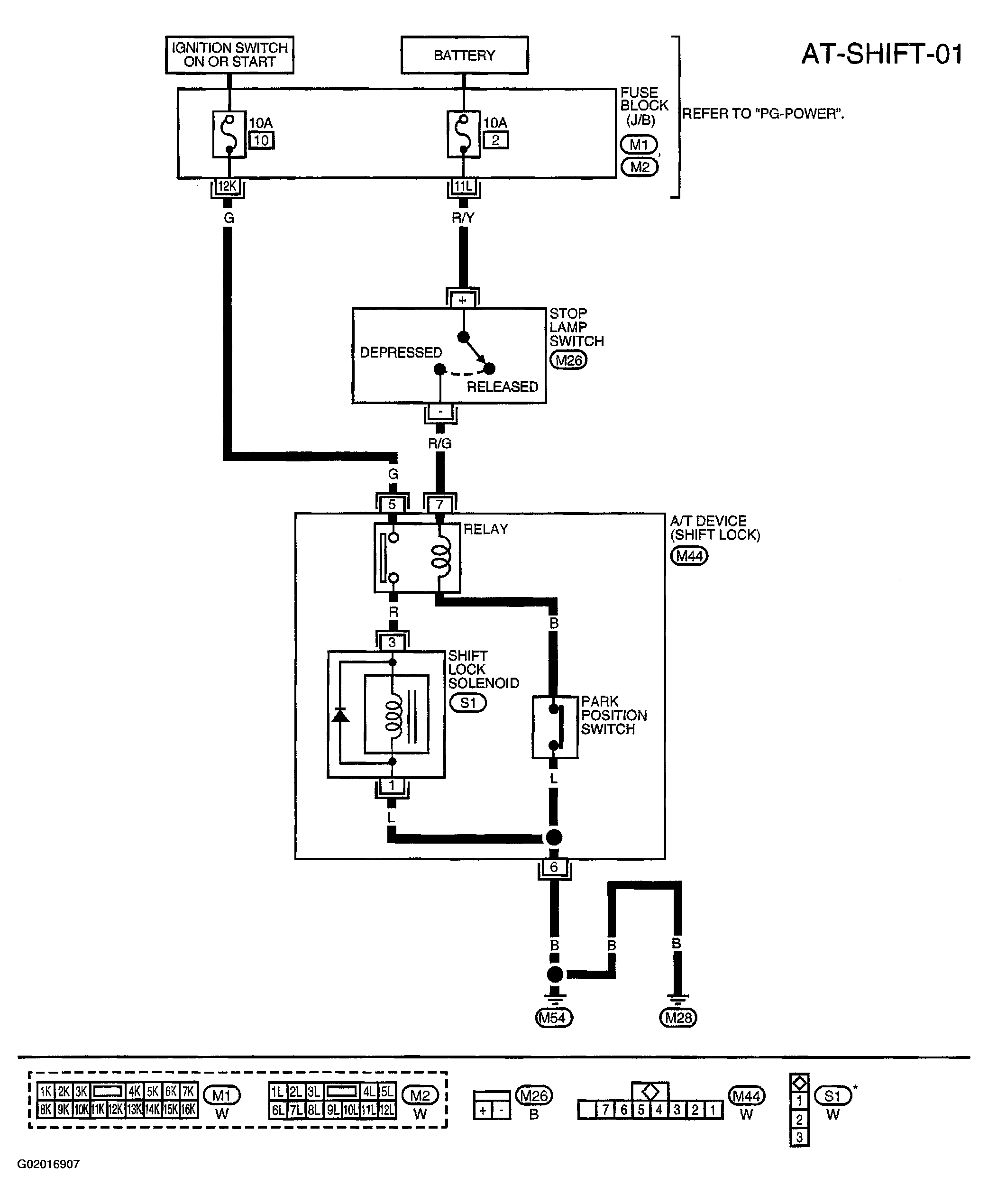

Fig 1: Shift Lock System Circuit And Identifying Connectors

G02016907

Courtesy of NISSAN MOTOR CO., U.S.A.
