Steering Wheel

  1. Remove air bag module. See DRIVER-SIDE AIR BAG MODULE & SPIRAL CABLE .
  2. Remove steering wheel mounting nut.

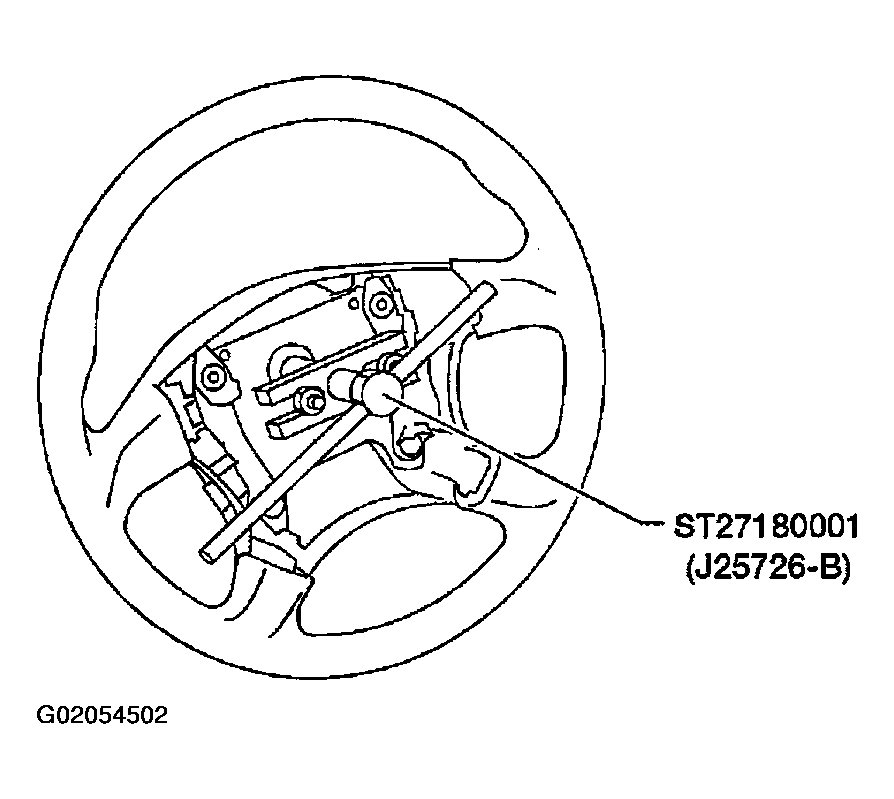

    3. Fig 1: Removing Steering Wheel Mounting Nut
    G02054502Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove steering wheel with tool.
  4. Installation is in the reverse order of removal.
