Removal And Installation

Fig 1: Identifying Power Steering Gear Assembly
G02054513Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
  • The rotation of the spiral cable (SRS "Air bag" component part) is limited. If the steering gear must be removed, set the front wheels in the straight-ahead direction. Do not rotate the steering column while the steering gear is removed.
  • Remove the steering wheel before removing the steering lower joint to avoid damaging the SRS spiral cable. See DRIVER-SIDE AIR BAG MODULE & SPIRAL CABLE .
  1. Detach tie-rod outer sockets.

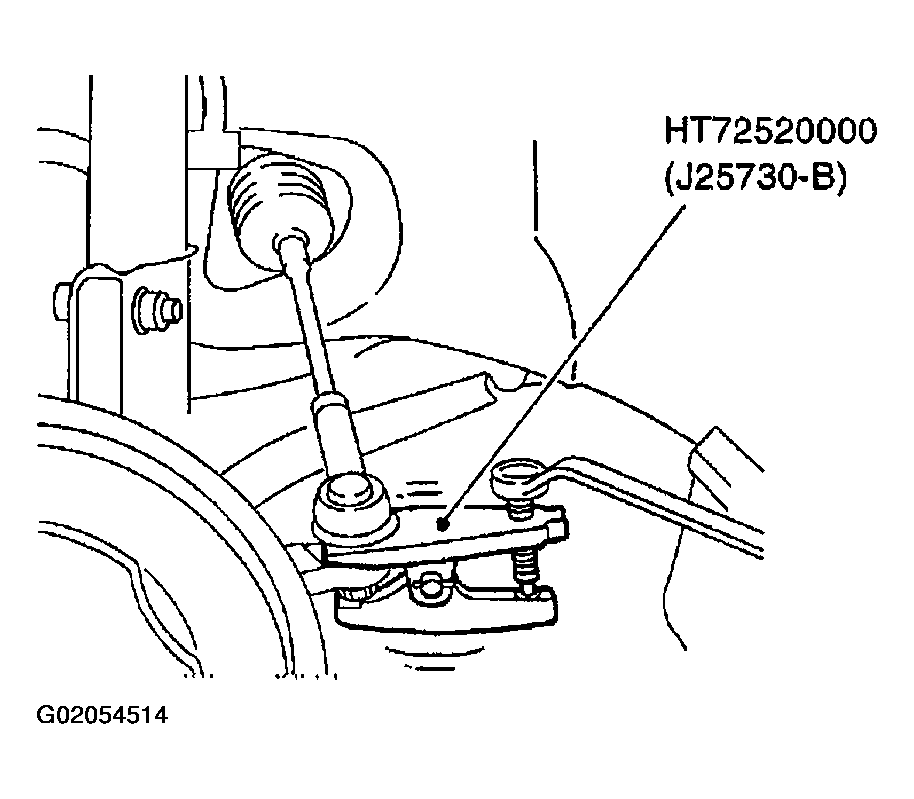

    Fig 2: Detaching Tie-Rod Outer Sockets
    G02054514Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Disconnect the power steering lines.
  3. Disconnect the steering gear lower joint.
  4. Position the bracket for the hoses and harness aside.
  5. Remove the return line fitting.
  6. Remove the steering gear mounting bolts.

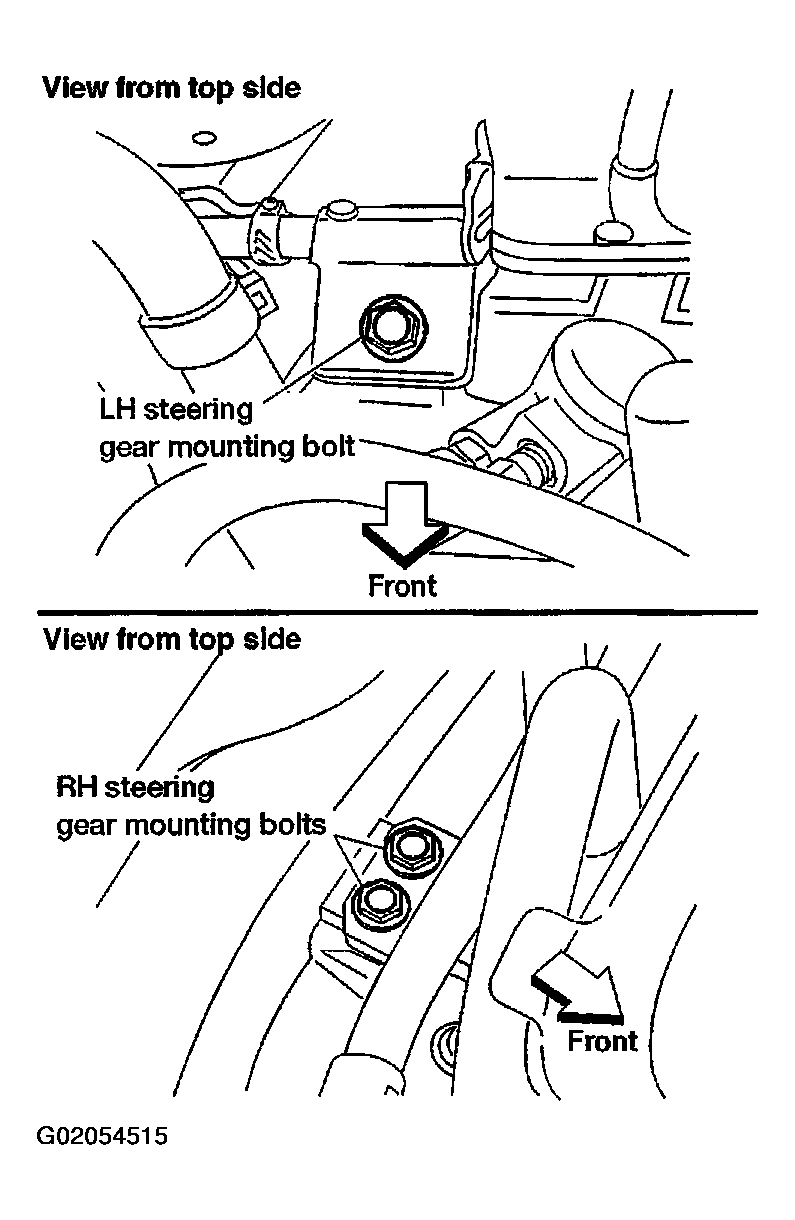

    7. Fig 3: View Of LH & RH Of Steering Gear Mounting Bolts
    G02054515Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Remove the steering gear through the passenger side.
  8. Installation is the reverse order of removal.
    • Install power steering line connector.
      Fig 4: Installing Power Steering Line Connector
      G02054516Courtesy of NISSAN MOTOR CO., U.S.A.
    • Observe specified tightening torque when tightening high-pressure and low-pressure line connectors. Excessive tightening will damage threads of connector or O-ring.

      Connector tightening torque:

      1. 1 Low-pressure side: 28 - 39 N.m (2.8 - 4.0 kg-m, 21 - 28 ft-lb)
      2. 2 High-pressure side: 15 - 25 N.m (1.5 - 2.5 kg-m, 11 - 18 ft-lb)

    • The O-ring in low-pressure pipe connector is larger than that in high-pressure connector. Take care to install the proper O-ring.
      • CAUTION: Tightening torque must not exceed 49 N.m (5 kg-m, 36 ft-lb).

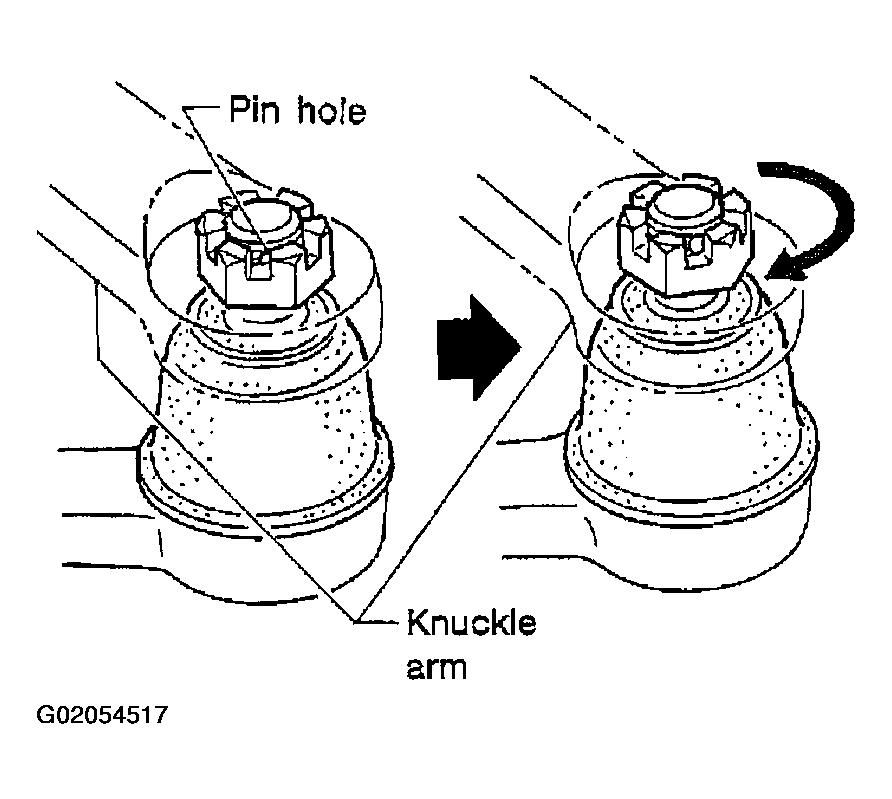

      Fig 5: Tightening Nut On Tie-Rod Outer Socket And Knuckle Arm
      G02054517Courtesy of NISSAN MOTOR CO., U.S.A.
    • Initially, tighten nut on tie-rod outer socket and knuckle arm to 29 to 39 N.m (3 to 4 kg-m, 22 to 28 ft-lb). Then tighten further to align nut groove with first pin hole so that cotter pin can be installed.
    • Before removing lower joint from gear, set gear in neutral (wheels in straight-ahead position). After removing lower joint, put matching mark on pinion shaft and pinion housing to record neutral position.
    • To install, set left and right dust boots to equal deflection. Attach lower joint by aligning matching marks of pinion shaft and pinion housing.
      Fig 6: Match Marking In Pinion Shaft
      G02054518Courtesy of NISSAN MOTOR CO., U.S.A.
    • Tighten gear housing mounting bracket bolts and nut in the order shown.
      Fig 7: Identifying Tightening Sequence For Gear Housing Mounting Bracket
      G02054519Courtesy of NISSAN MOTOR CO., U.S.A.
