Commercial Service Tools

WARNING: This page is about a different variant/trim than selected.

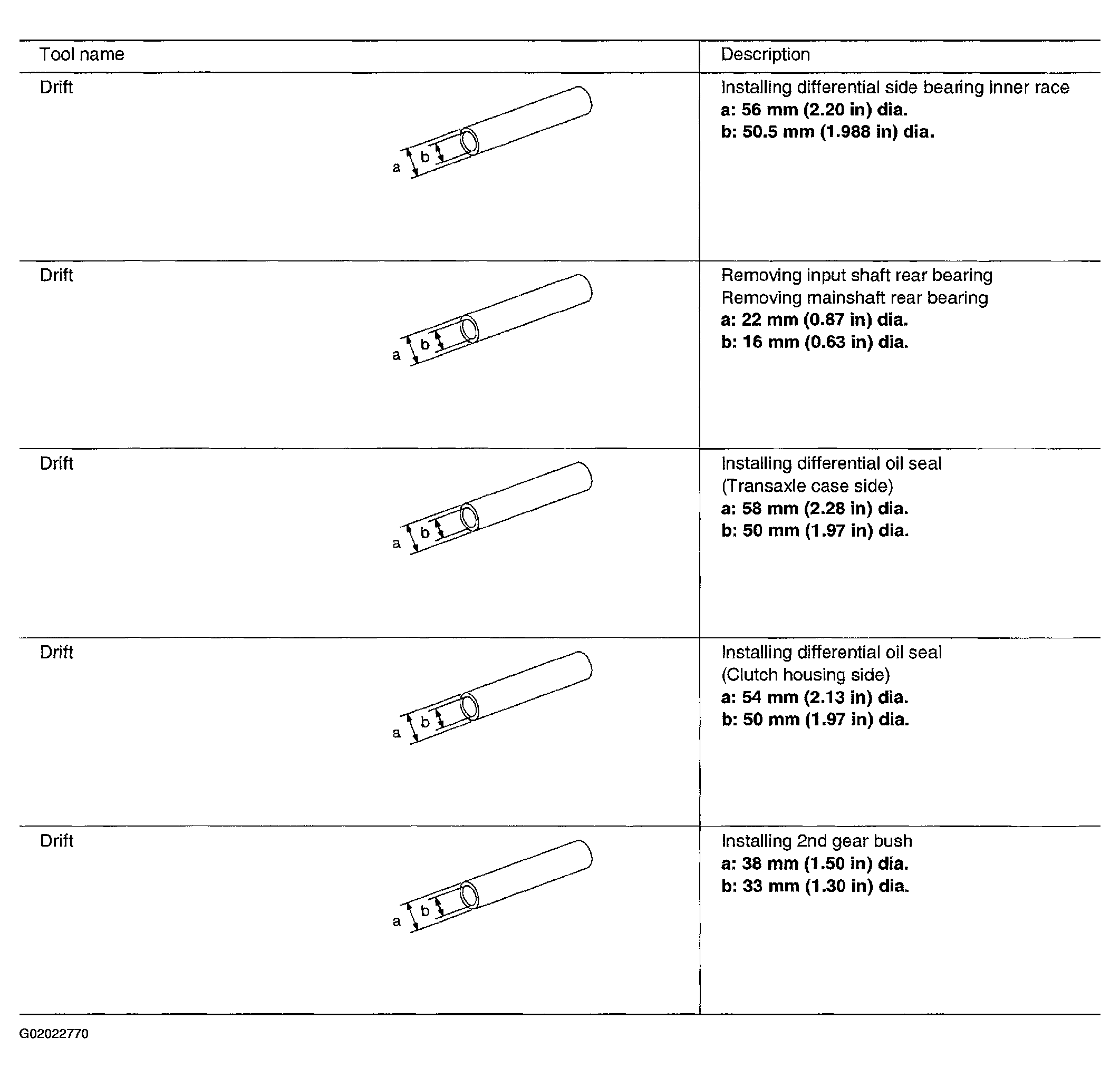

Fig 1: Identifying Commercial Service Tools (1 Of 2)
G02022770Courtesy of NISSAN MOTOR CO., U.S.A.

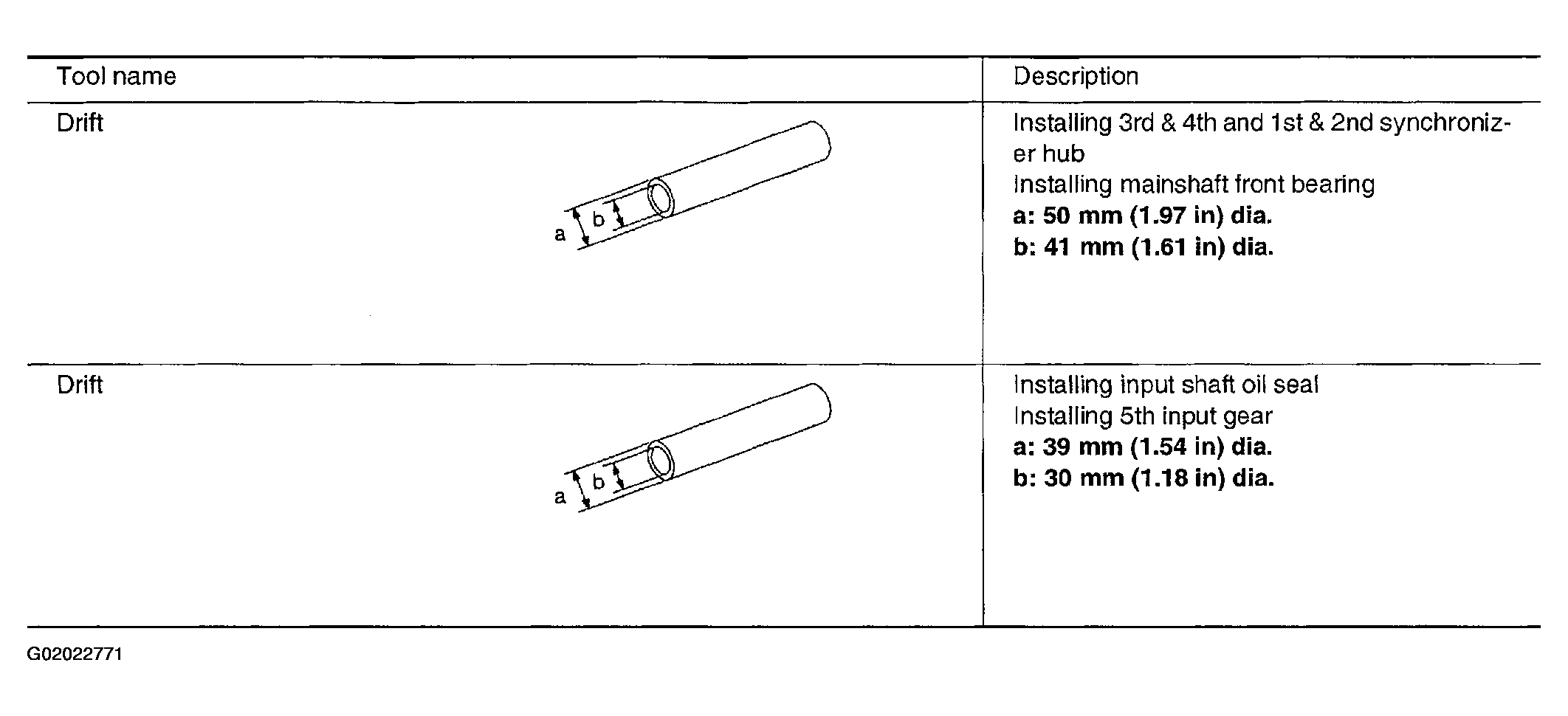

Fig 2: Commercial Service Tools (2 Of 2)
G02022771Courtesy of NISSAN MOTOR CO., U.S.A.
