Section 7 (Manual Transaxle RS5F70A)
>>
Position Switch
>>
Position Switch Check
>>
PNP Switch
PNP Switch
WARNING:
This page is about a different variant/trim than selected.
Check continuity.

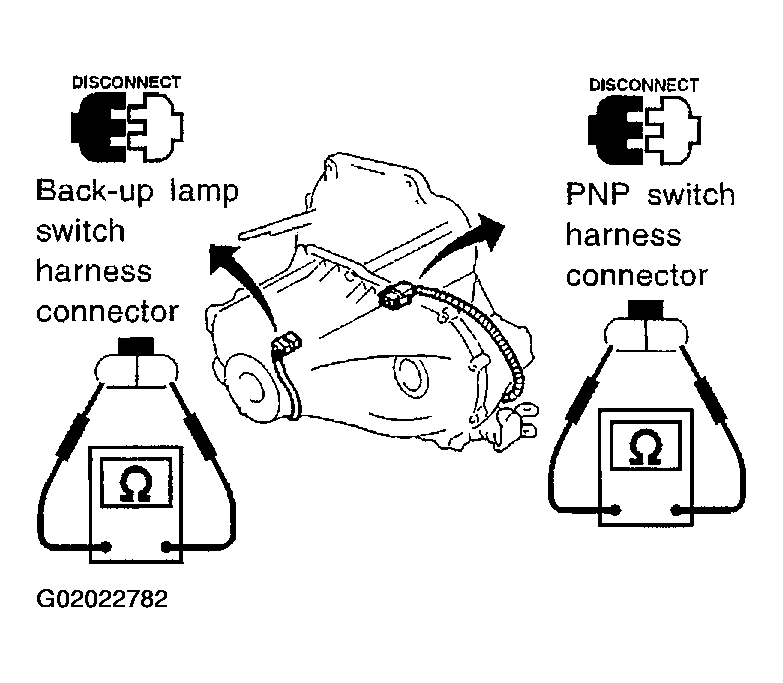

Fig 1: PNP Switch Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
