Removal and Installation: Removal
WARNING: This page is about a different variant/trim than selected.
- Drain engine coolant. Refer to COOLING SYSTEM BLEEDING .
- Remove the air duct and air cleaner assembly.
- Disconnect the A/T oil cooler hoses (if equipped) and install a blind plug in the hoses to prevent A/T oil loss.
- Disconnect the upper and lower radiator hoses and mounting bracket.

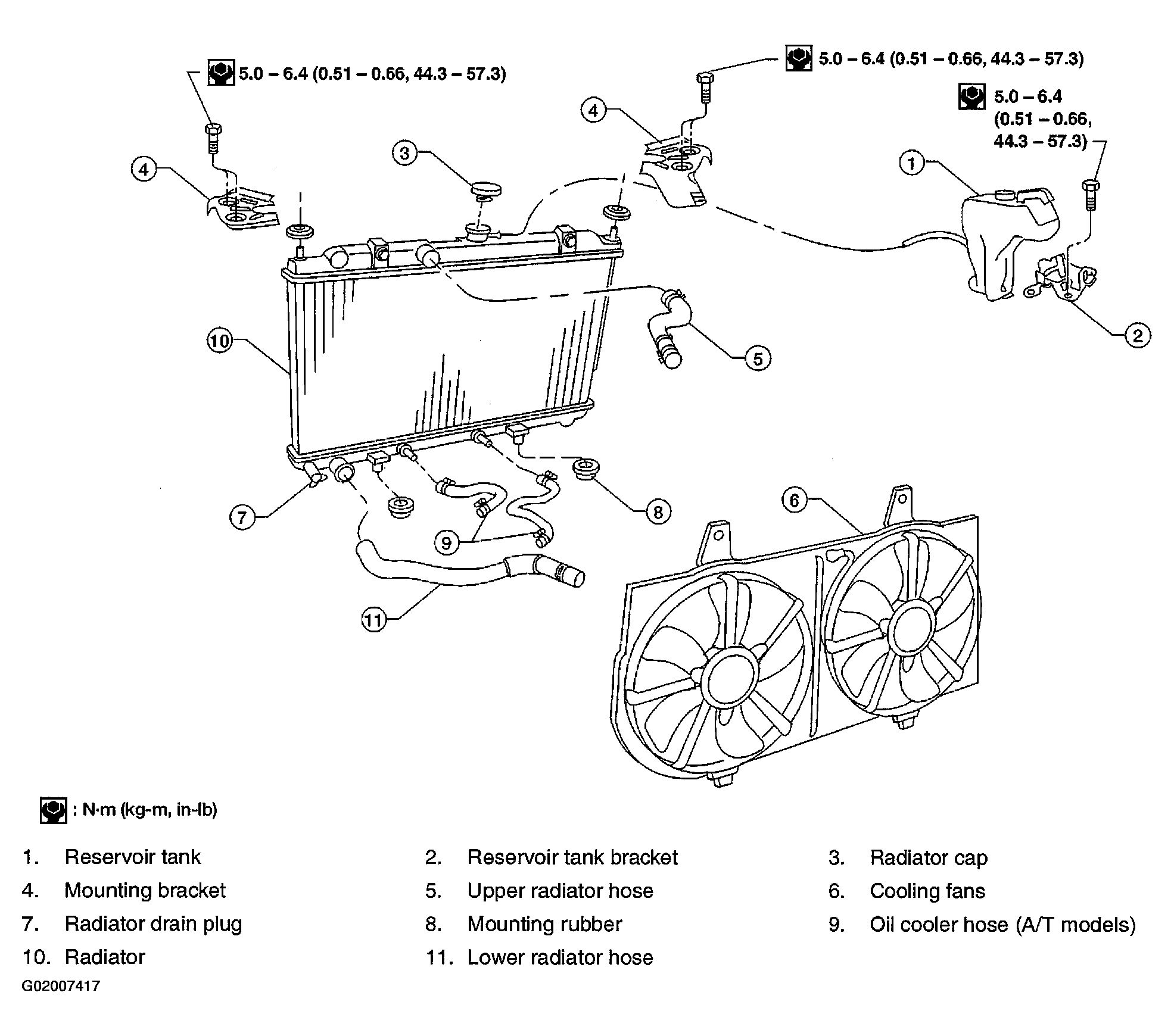

- Remove the radiator and radiator fan assembly as one unit.
CAUTION:
Do not damage or scratch the radiator core when removing.
