Flywheel RUNOUT

WARNING: This page is about a different variant/trim than selected.

Runout (Total indicator reading)

Flywheel (M/T models): Less than 0.15 mm (0.0059 in)

CAUTION:

Do not allow any magnetic materials to contact the ring gear teeth and rear plate.
Do not resurface flywheel. Replace as necessary.

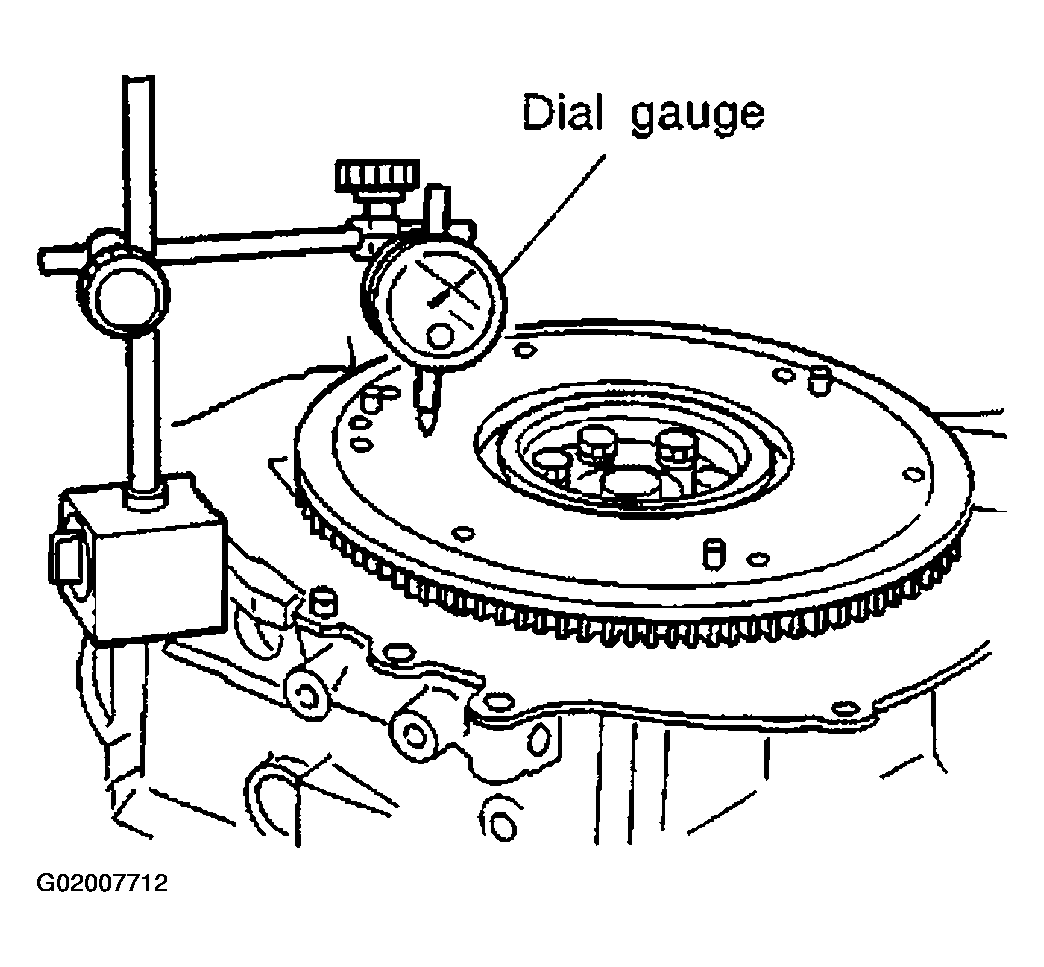

Fig 1: Checking Fly Wheel Runout
Courtesy of NISSAN MOTOR CO., U.S.A.
