TCM Inspection Table

WARNING: This page is about a different variant/trim than selected.

(Data are reference values.)

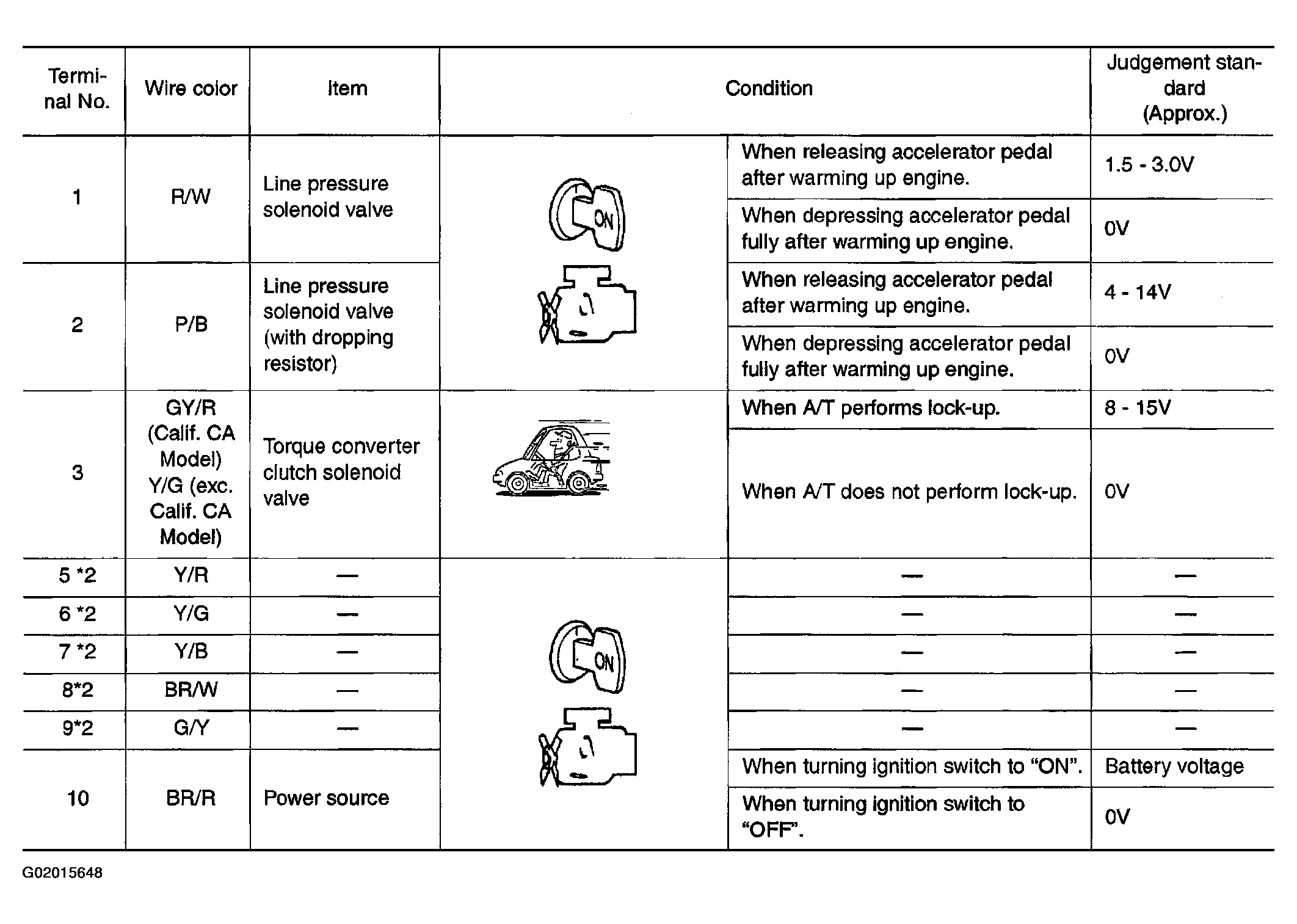

Fig 1: TCM Terminals Voltage Specifications (Terminal 1 To 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

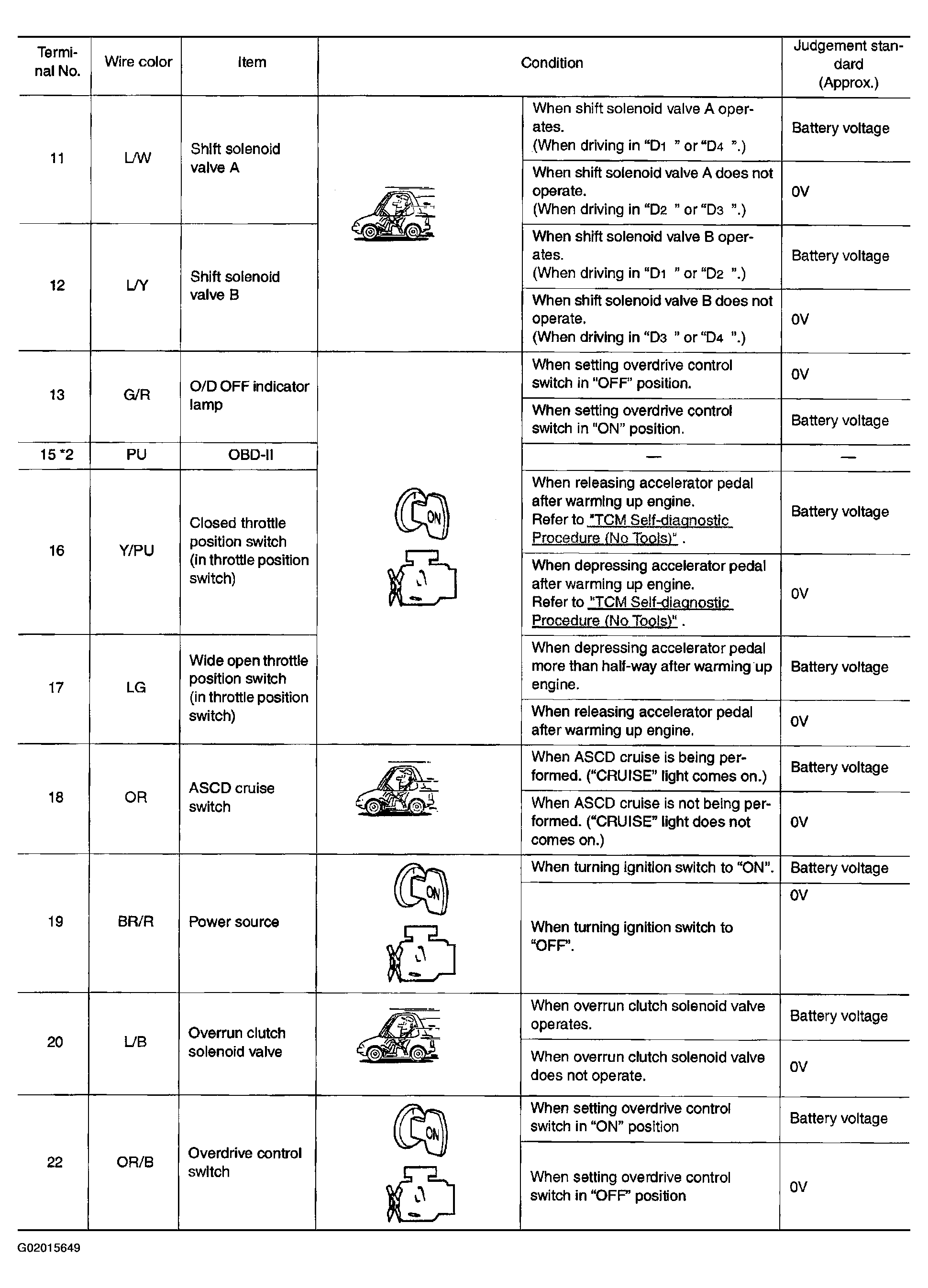

Fig 2: TCM Terminals Voltage Specifications (Terminal 11 To 22)

Courtesy of NISSAN MOTOR CO., U.S.A.

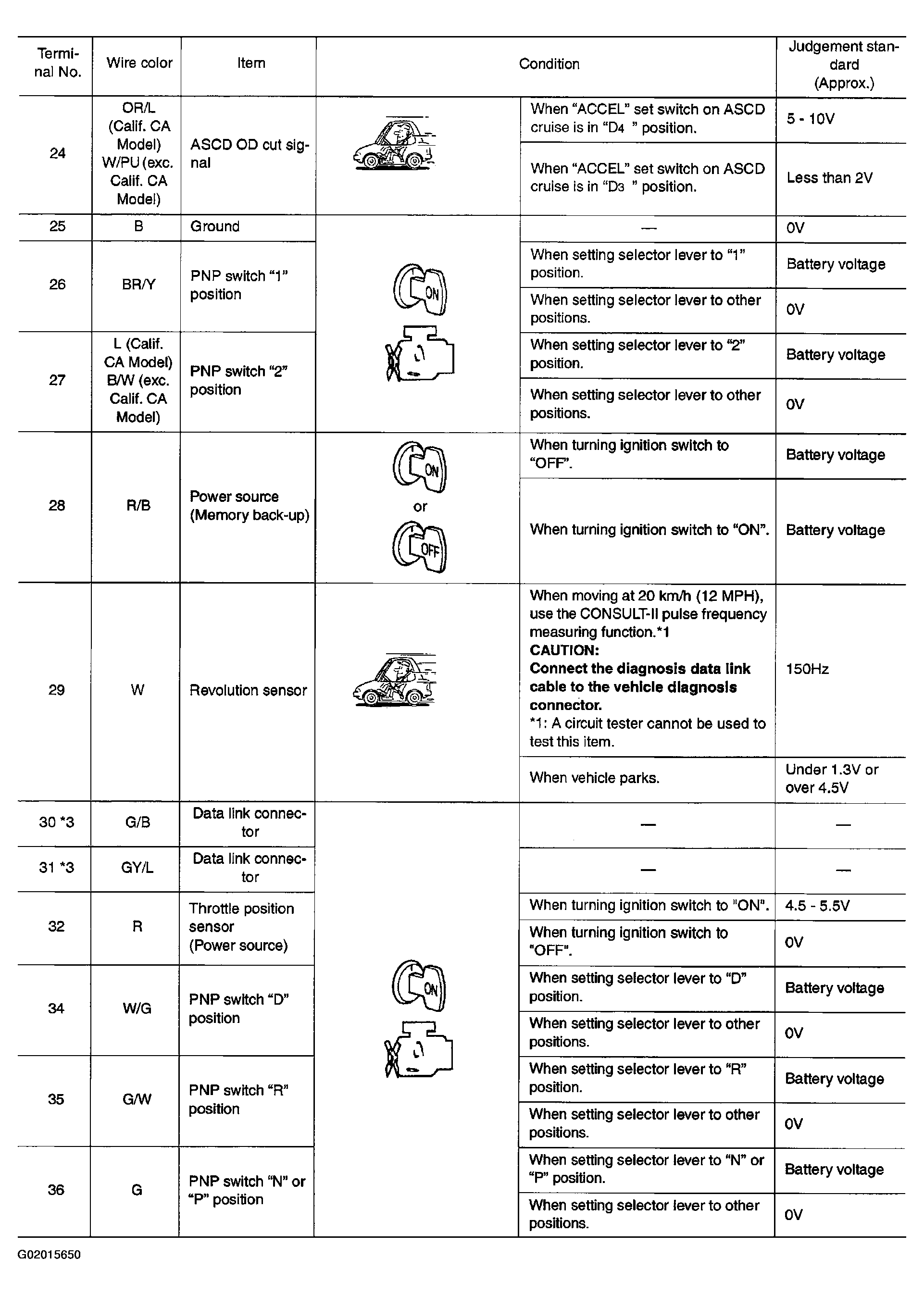

Fig 3: TCM Terminals Voltage Specifications (Terminal 24 To 36)

Courtesy of NISSAN MOTOR CO., U.S.A.

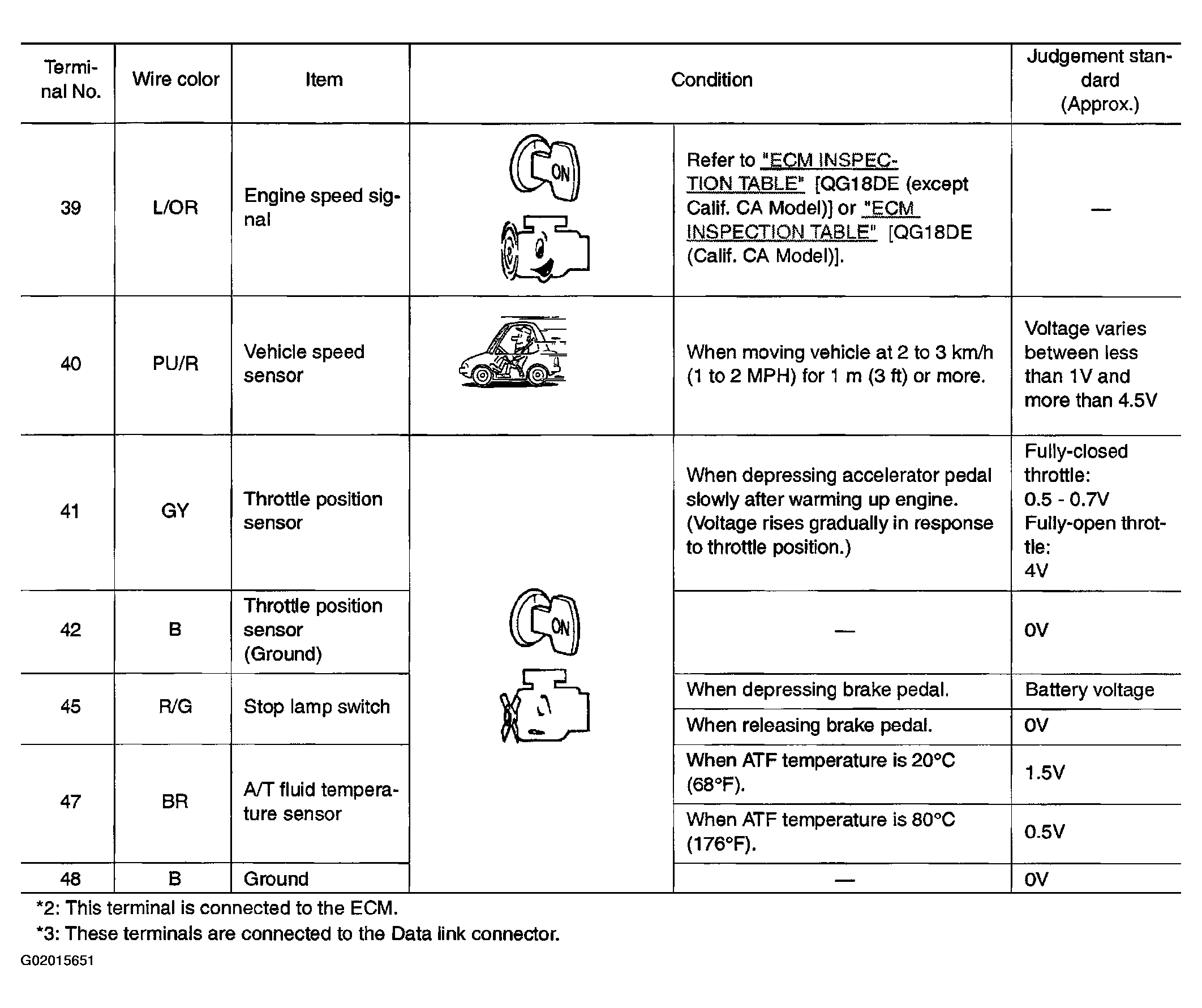

Fig 4: TCM Terminals Voltage Specifications (Terminal 39 To 48)

Courtesy of NISSAN MOTOR CO., U.S.A.
