Line Pressure Test Ports

Location of line pressure test ports are shown in Fig 1.

• Always replace pressure plugs as they are self-sealing bolts  .

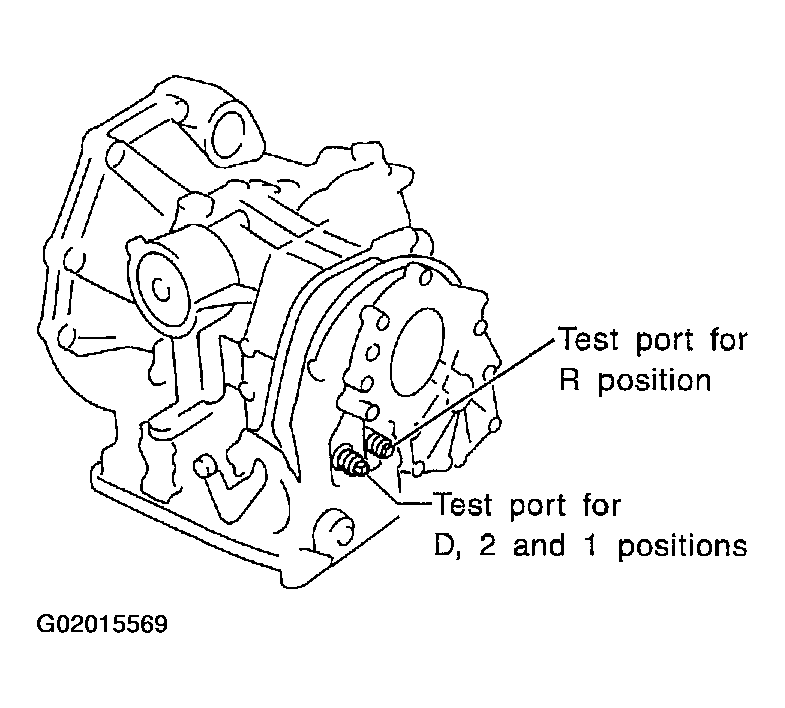

  Fig 1: Locating Line Pressure Test Ports

  Courtesy of NISSAN MOTOR CO., U.S.A.
