Judgement Of Line Pressure Test

WARNING: This page is about a different variant/trim than selected.

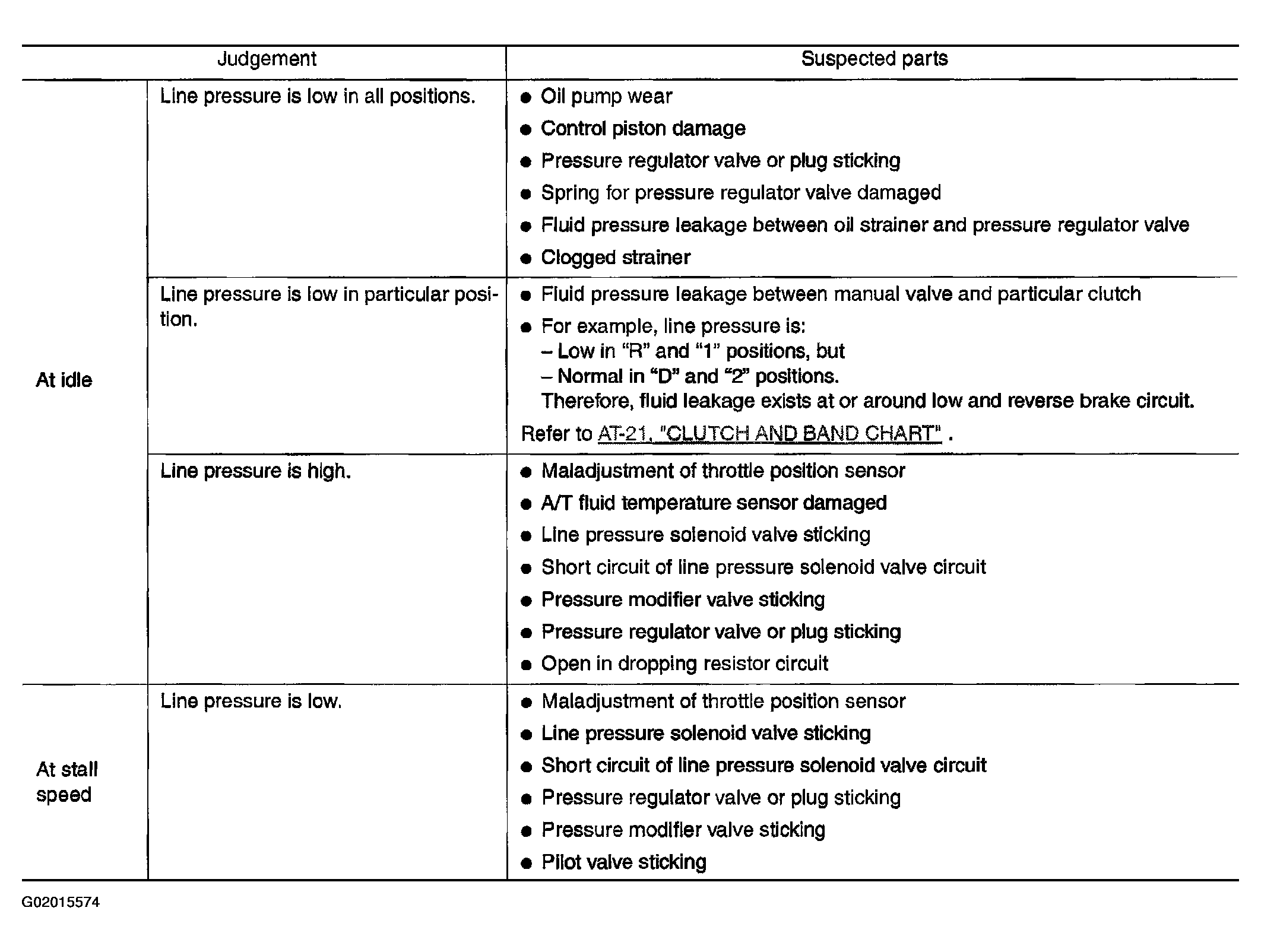

Fig 1: Identifying Suspected Components Isolated By Line Pressure Test
G02015574Courtesy of NISSAN MOTOR CO., U.S.A.
