Differential Side Oil Seal Replacement

WARNING: This page is about a different variant/trim than selected.
  1. Remove drive shaft assemblies using Tool. Refer to REMOVAL, OVERHAUL & INSTALLATION .
  2. Remove oil seals.

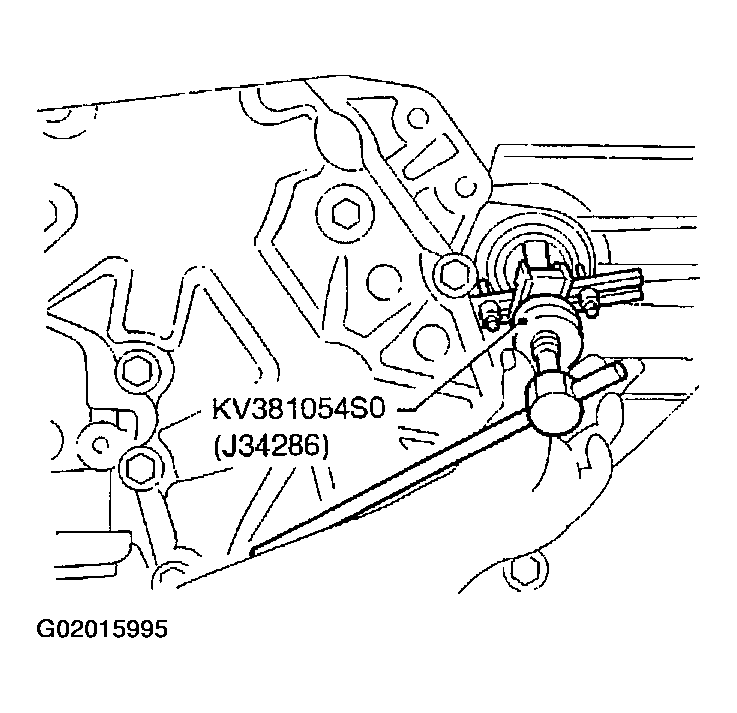

    Fig 1: Removing Oil Seal
    G02015995Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Install oil seals using Tool.
    • Apply ATF to oil seal surface before installing  .

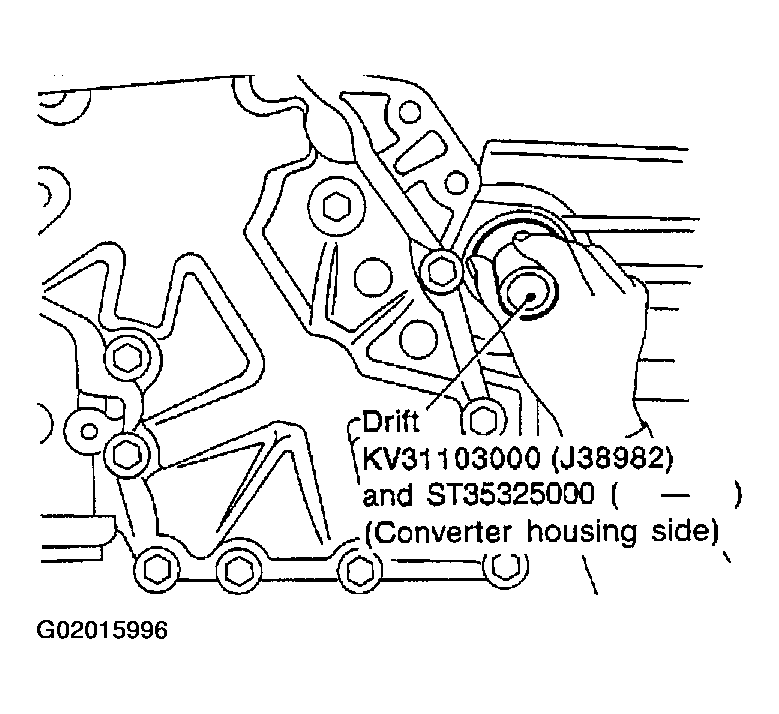

      Fig 2: Installing Oil Seal
      G02015996Courtesy of NISSAN MOTOR CO., U.S.A.
    • Install oil seals so that dimensions A and B are within specifications  .

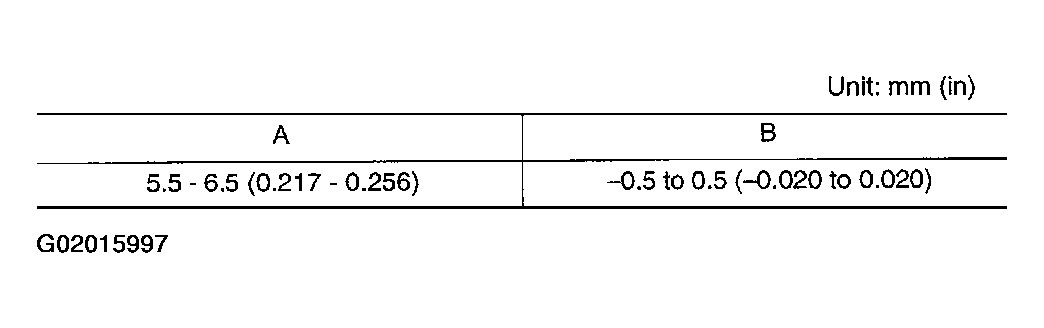

      Fig 3: Oil Seal Dimensions Specifications
      G02015997Courtesy of NISSAN MOTOR CO., U.S.A.

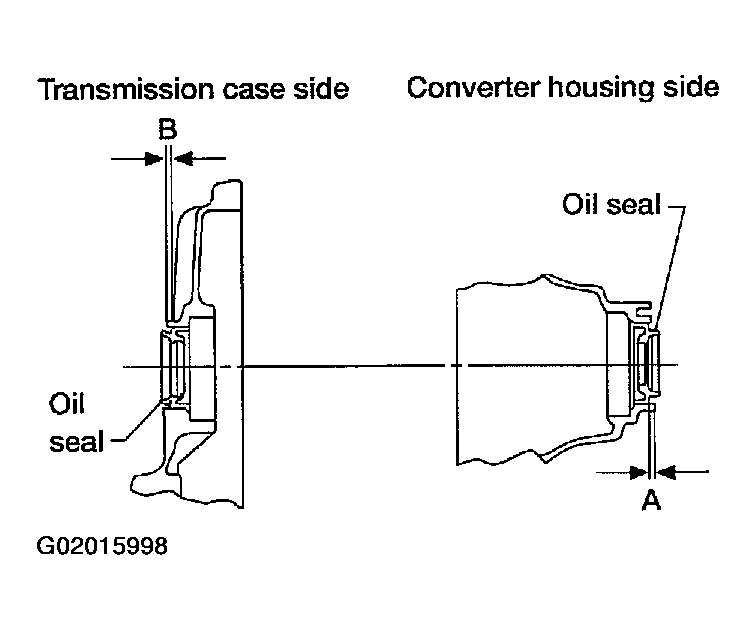

      Fig 4: Identifying Oil Seal Dimensions At Transmission Case Side & Converter Housing Side
      G02015998Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Reinstall any part removed.
