Self-Diagnostic Result Test Mode
Self-Diagnostic Result Test Mode
WARNING:
This page is about a different variant/trim than selected.

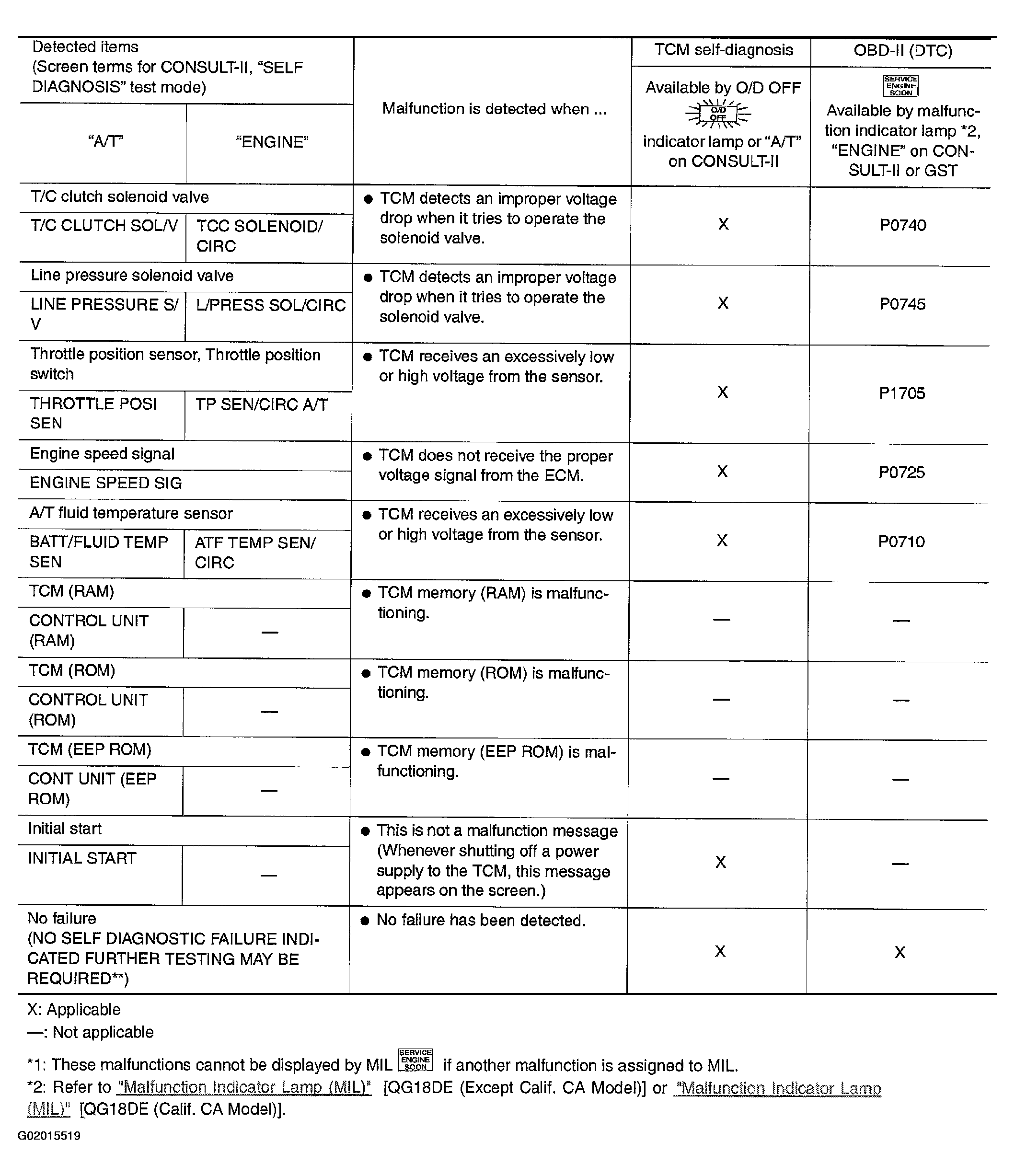

Fig 1: Identifying Self-Diagnostic Test Mode Results (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

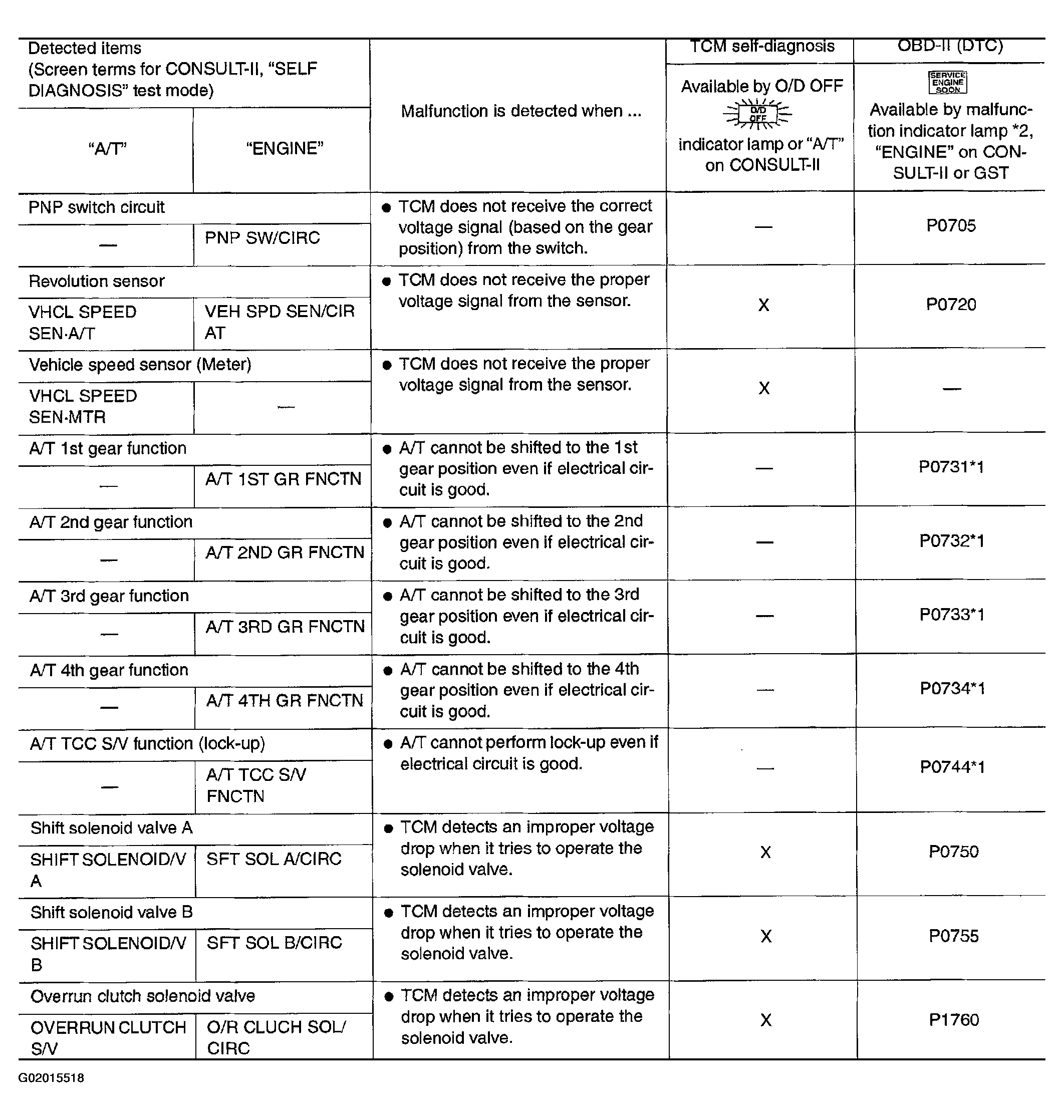

Fig 2: Identifying Self-Diagnostic Test Mode Results (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
