Wiring Diagram - SHIFT -

WARNING: This page is about a different variant/trim than selected.

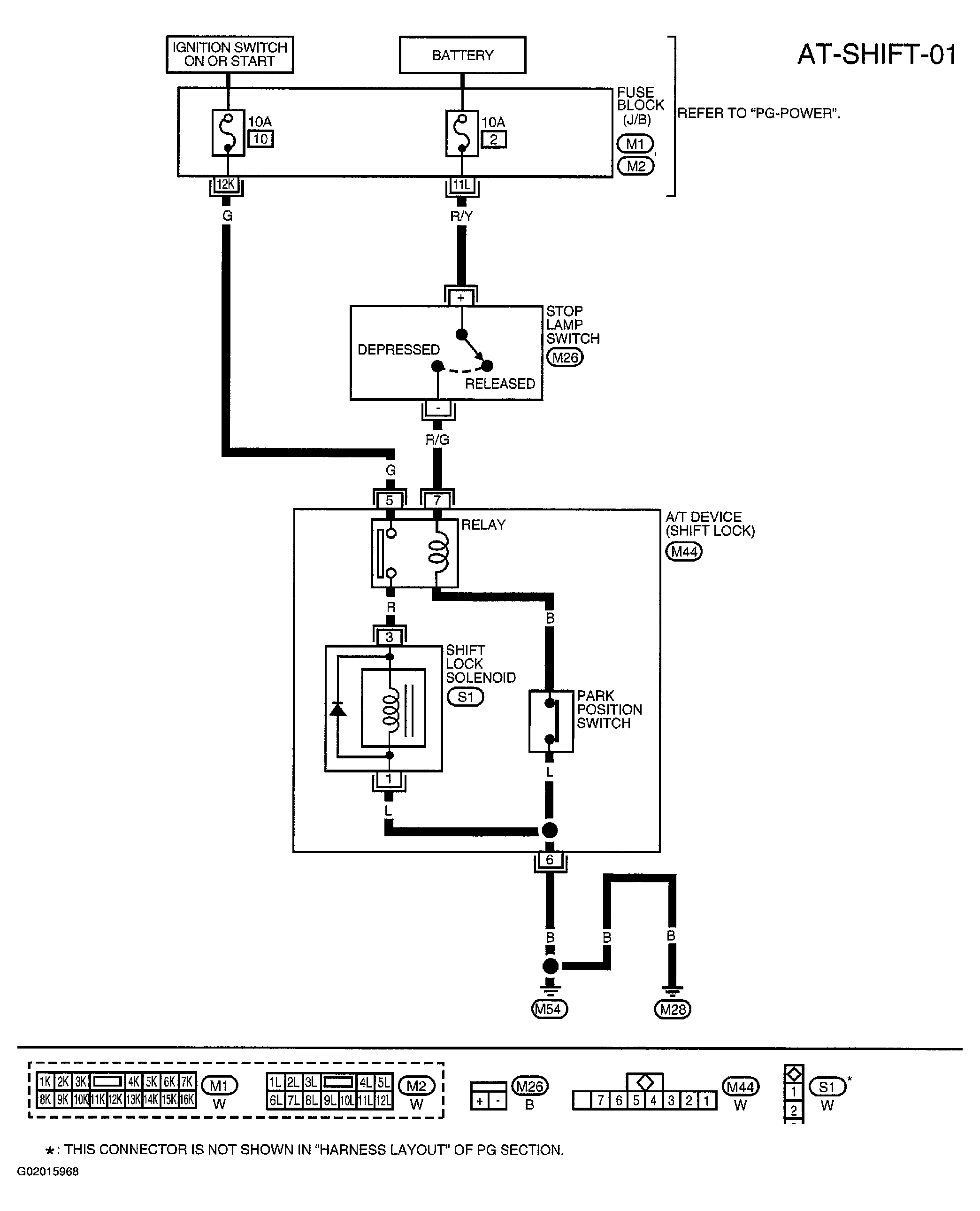

Fig 1: Shift Lock System Wiring Diagram & Identifying Connectors (Automatic Transaxle)
G02015968Courtesy of NISSAN MOTOR CO., U.S.A.
