ABS Motor

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

Touch ON and OFF on the screen. Make suer ABS motor relay operates as shown in Fig 1.

Fig 1: ABS Motor Operation Table

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE:

When active test is performed while depressing pedal, pedal depression amount will change, but this is normal.
Approximately 10 seconds after operation is begun, TEST STOP will be displayed.

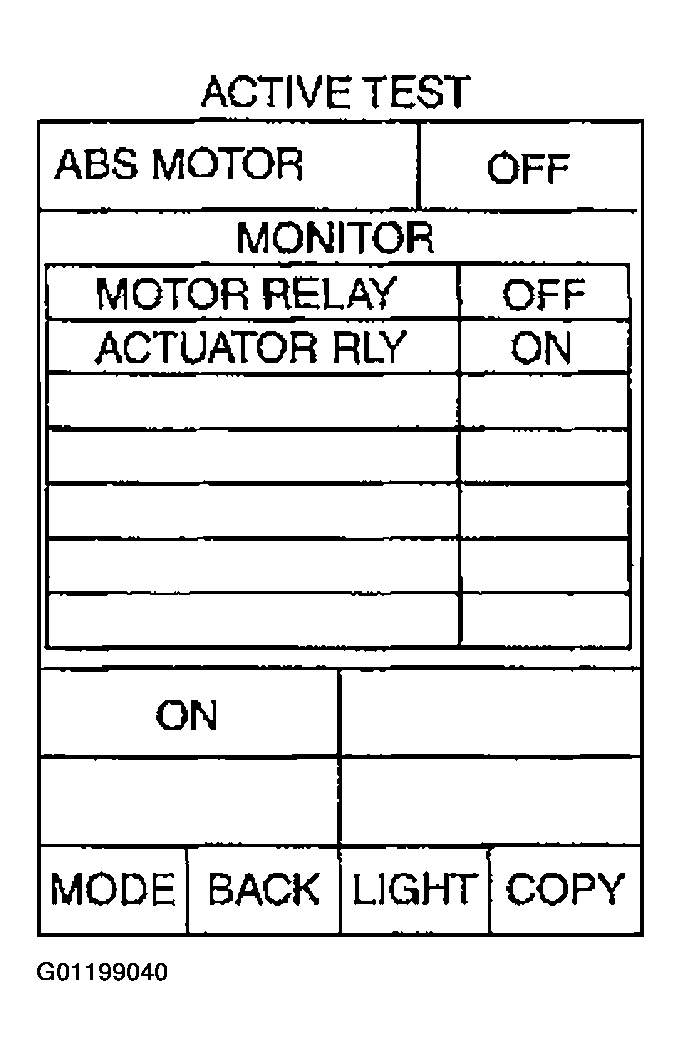

Fig 2: CONSULT-II ACTIVE TEST Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
To perform retest after TEST STOP is displayed, touch BACK and conduct the test from the Step 6.
