Wiring Diagram - VOICE -

WARNING: This page is about a different car, the 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For additional information, see SYSTEM WIRING DIAGRAMS article.

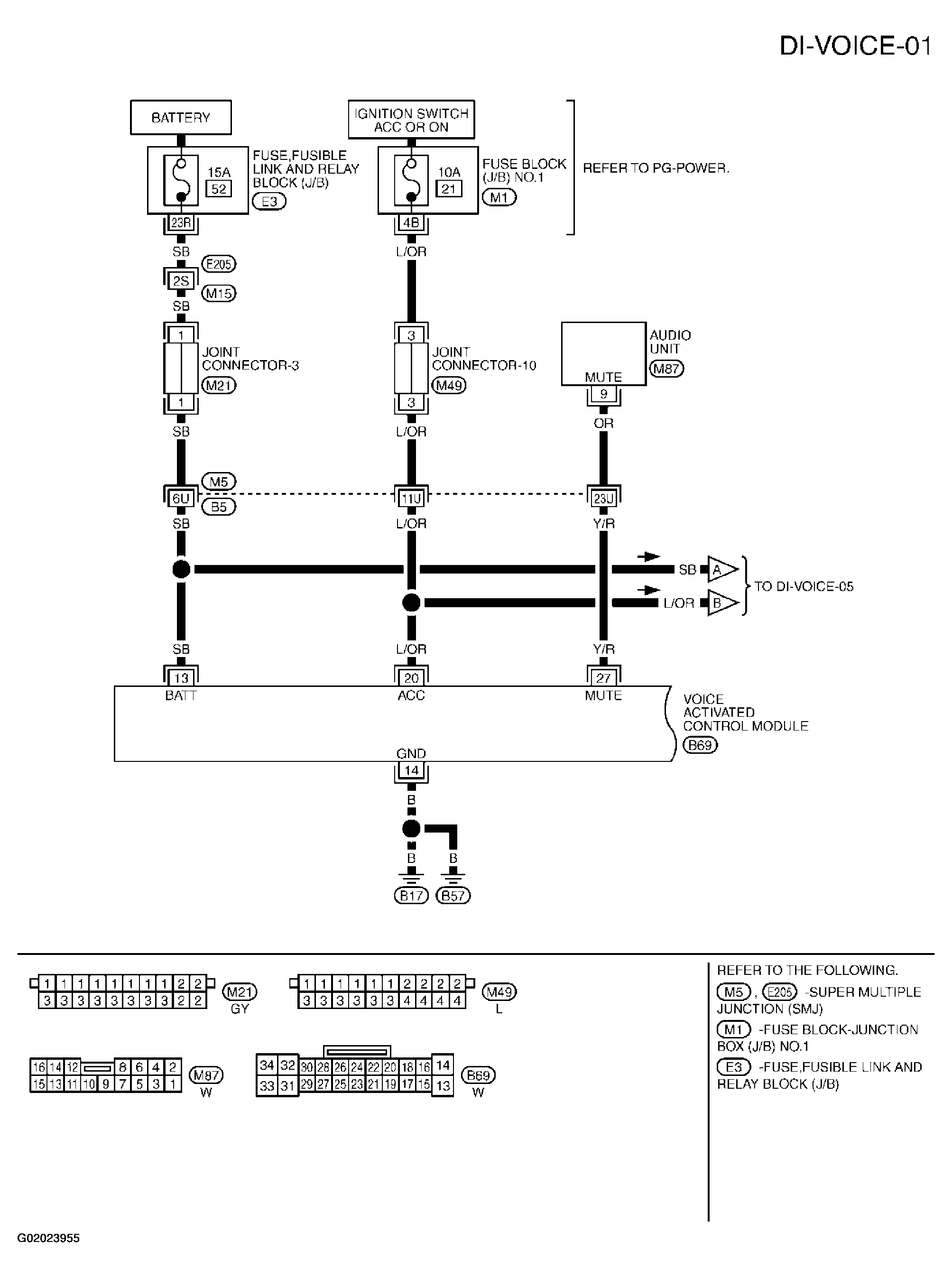

Fig 1: Wiring Diagram - Voice Activated Control System (1 Of 5)

G02023955

Courtesy of NISSAN MOTOR CO., U.S.A.

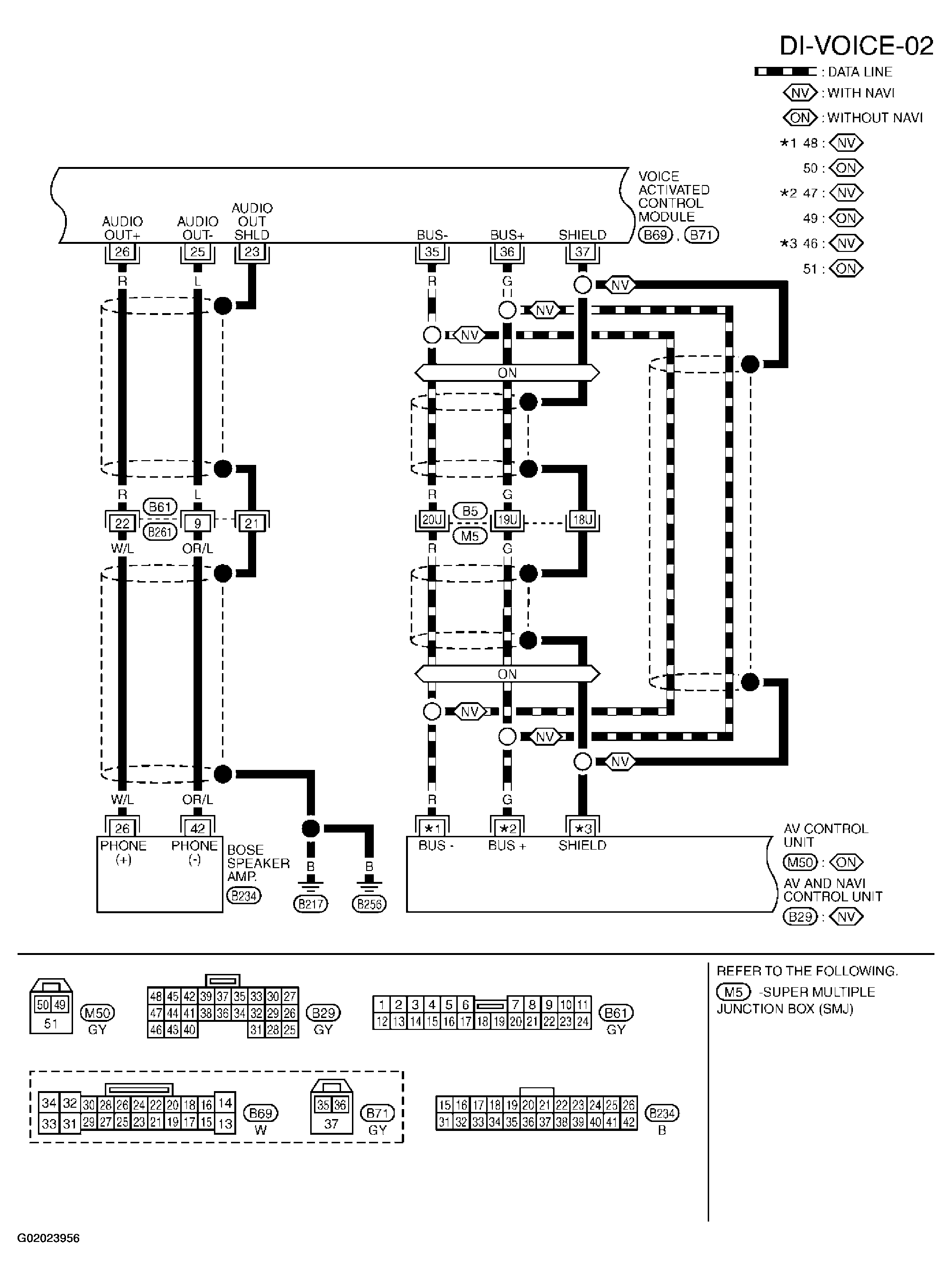

Fig 2: Wiring Diagram - Voice Activated Control System (2 Of 5)

G02023956

Courtesy of NISSAN MOTOR CO., U.S.A.

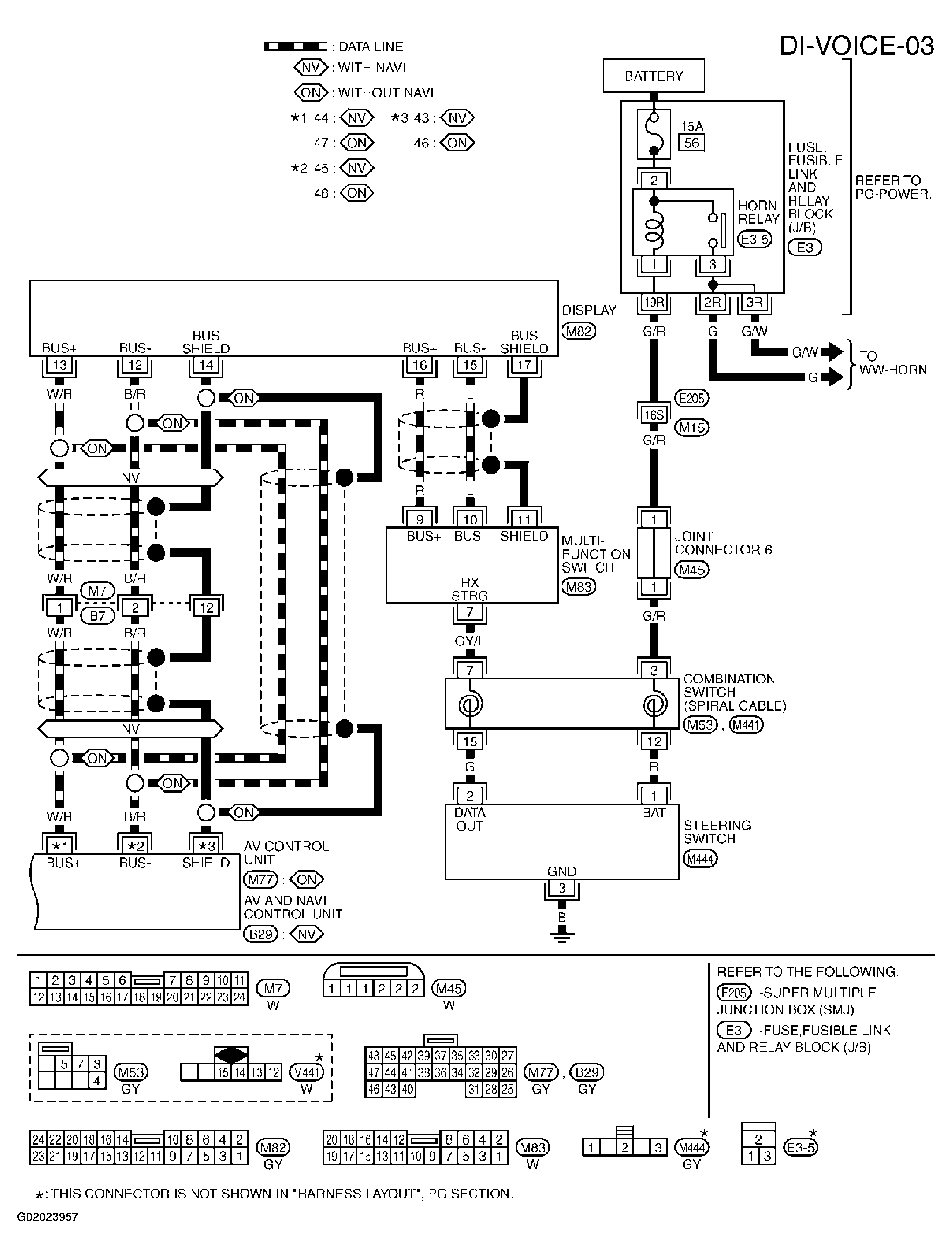

Fig 3: Wiring Diagram - Voice Activated Control System (3 Of 5)

G02023957

Courtesy of NISSAN MOTOR CO., U.S.A.

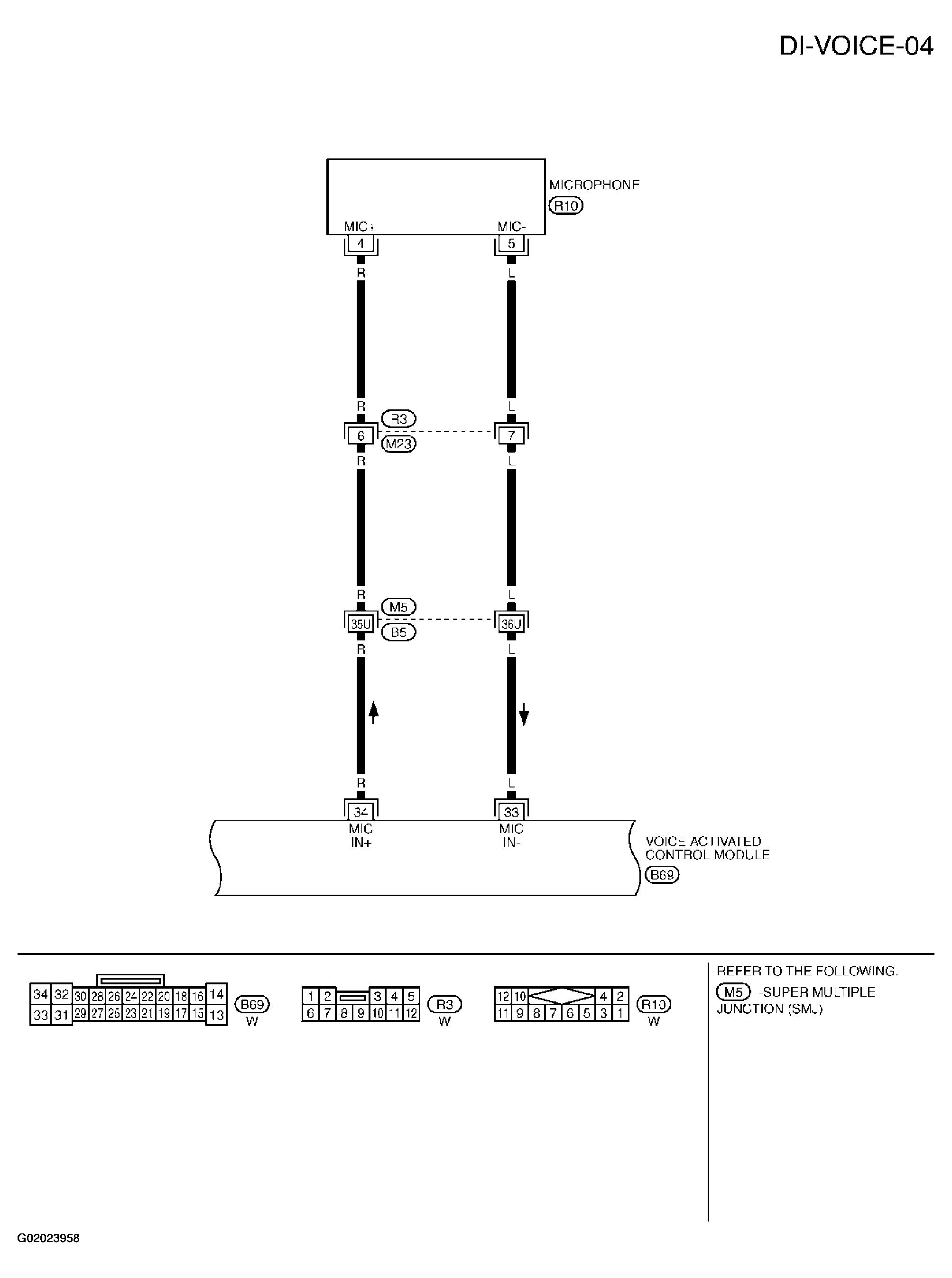

Fig 4: Wiring Diagram - Voice Activated Control System (4 Of 5)

G02023958

Courtesy of NISSAN MOTOR CO., U.S.A.

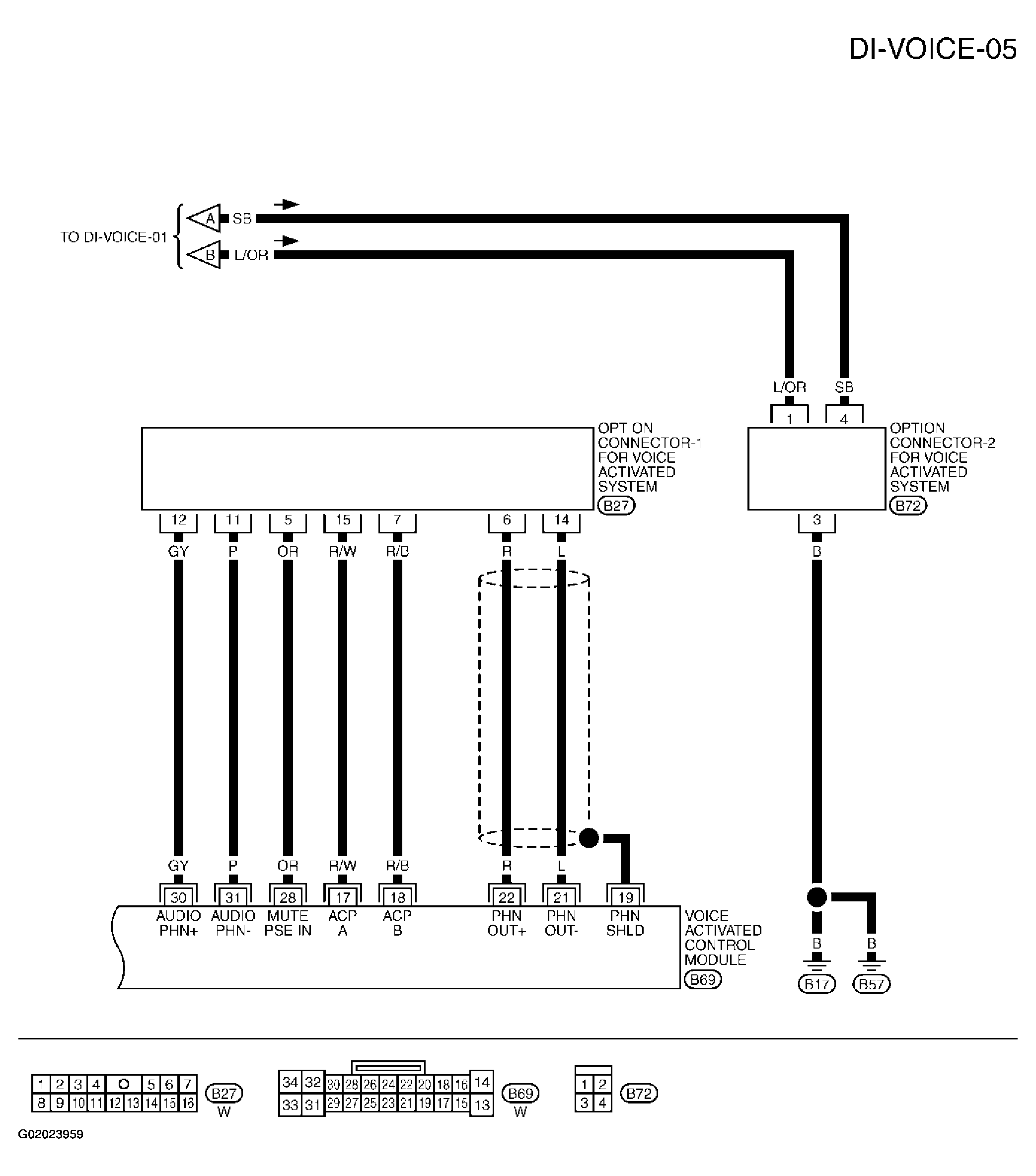

Fig 5: Wiring Diagram - Voice Activated Control System (5 Of 5)

G02023959

Courtesy of NISSAN MOTOR CO., U.S.A.
