Instrument Lower Driver Panel
WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
- Remove screws.
- Pull back to your side, disconnect metal clips and remove instrument lower driver panel.

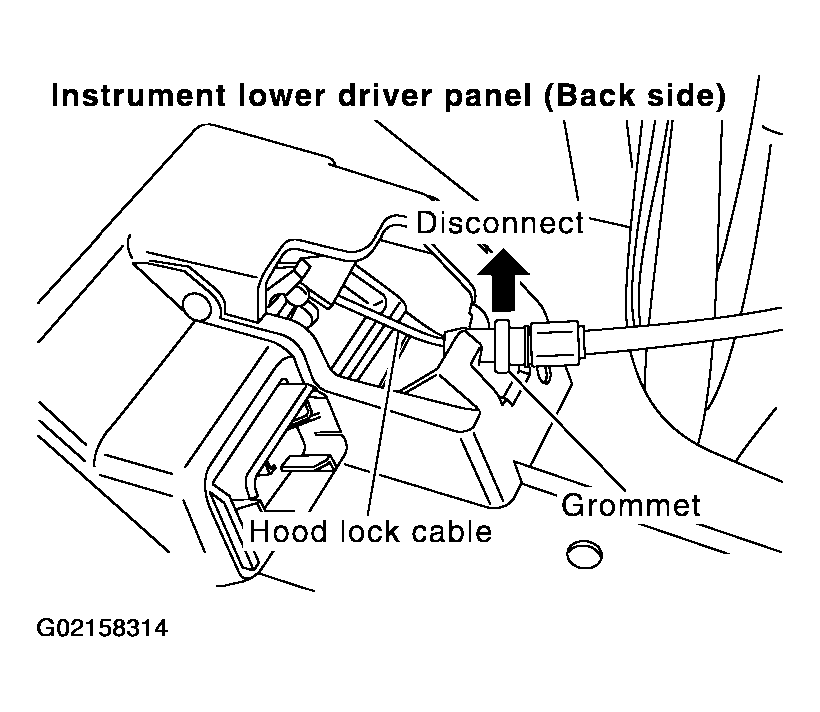

- Disconnect in-vehicle sensor and each electrical parts connectors.
- Remove grommet, and remove hood lock cable.
Courtesy of NISSAN MOTOR CO., U.S.A.
