Triple-Cone Synchronizer (2nd)

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

Follow the instructions below and inspect the clearances of 2nd outer baulk ring, 2nd synchronizer cone and 2nd inner baulk ring.

NOTE: Clearances "A", "B" and "C" of 2nd outer baulk ring, 2nd synchronizer cone and 2nd inner baulk ring are controlled as a set. If the clearance is below the limit value, replace them as a set.

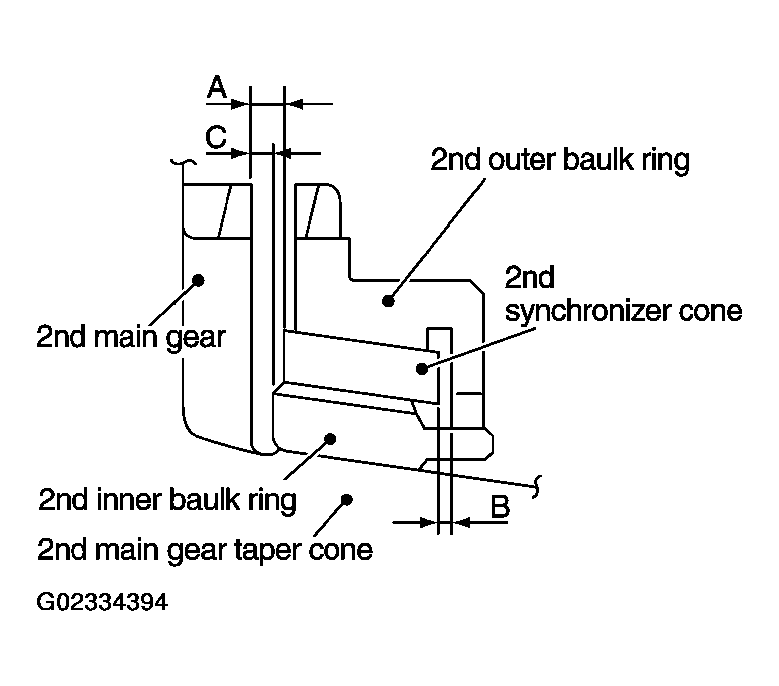

Fig 1: Inspecting Clearances "A", "B" And "C" Of 2nd Outer Baulk Ring, 2nd Synchronizer Cone And 2nd Inner Baulk Ring

Courtesy of NISSAN MOTOR CO., U.S.A.

Push 2nd outer baulk ring on 2nd main gear taper cone. Measure clearance "A" at 2 or more points diagonally opposite, and calculate mean value using a feeler gauge.
1. Clearance "A"
  1. Standard value: 0.6 - 1.3 mm (0.024 - 0.051 in)
  2. Limit value: 0.3 mm (0.012 in) or less

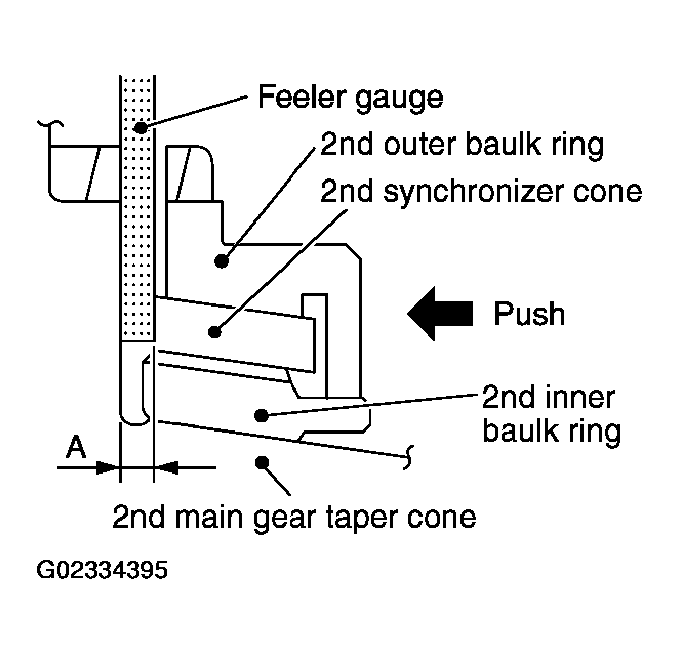

Fig 2: Measuring Clearance "A" At 2 Points Diagonally Opposite Using Feeler Gauge
Courtesy of NISSAN MOTOR CO., U.S.A.
Measure clearance "B" at 2 or more points diagonally opposite, and calculate mean value using a feeler gauge.
1. Clearance "B"
  1. Standard value: 0.85 - 1.35 mm (0.033 - 0.053 in)
  2. Limit value: 0.7 mm (0.028 in) or less

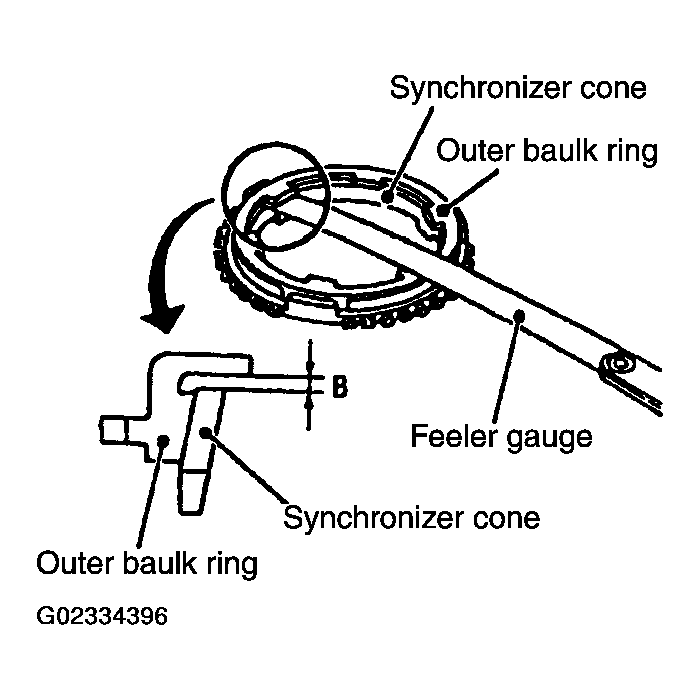

Fig 3: Measuring Clearance "B" At 2 Points Diagonally Opposite Using Feeler Gauge
Courtesy of NISSAN MOTOR CO., U.S.A.
Push 2nd outer baulk ring on 2nd main gear taper cone. Measure clearance "C" at 2 or more points diagonally opposite, and calculate mean value using a feeler gauge.
1. Clearance "C"
  1. Standard value: 0.7 - 1.25 mm (0.028 - 0.049 in)
  2. Limit value: 0.3 mm (0.012 in) or less

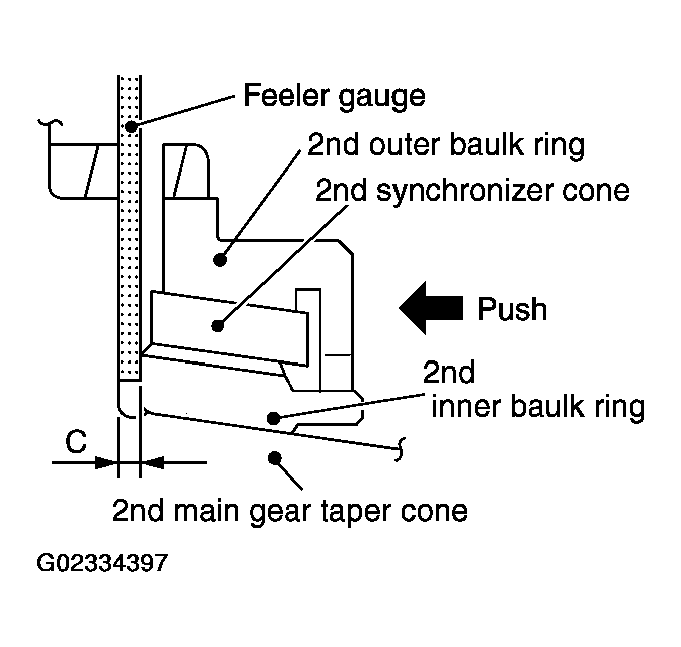

Fig 4: Measuring Clearance "C" At 2 Points Diagonally Opposite Using Feeler Gauge
Courtesy of NISSAN MOTOR CO., U.S.A.

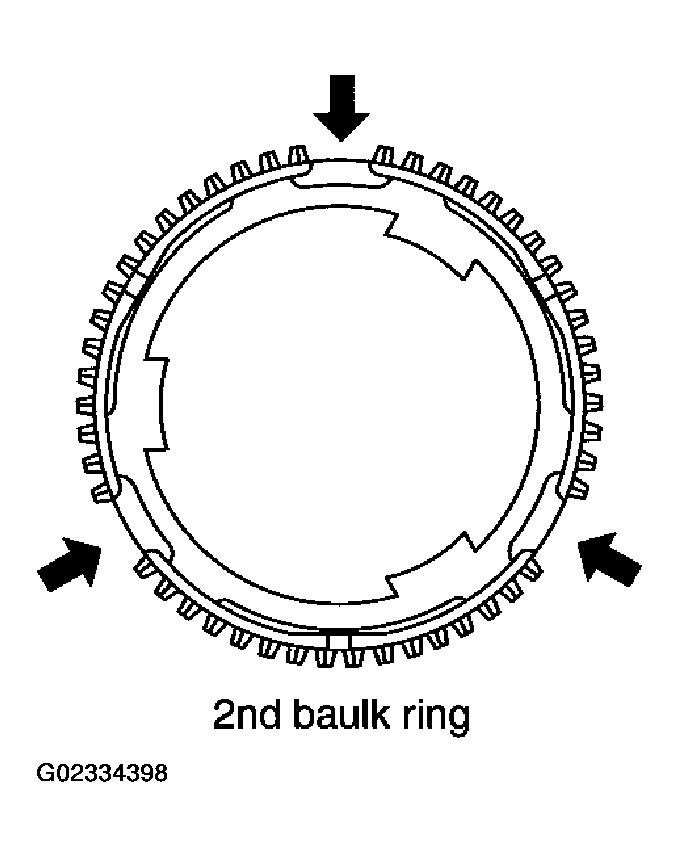

NOTE: 2nd baulk ring has three spaces that the gear teeth are missing as shown in the figure.

Fig 5: Locating 2nd Baulk Ring Having Three Spaces Gear Teeth Missing
Courtesy of NISSAN MOTOR CO., U.S.A.
