2. Check If EVAP Canister Saturated With Water

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Does water drain from the EVAP canister?

Yes or No

  1. Yes : GO TO 3.
  2. No : GO TO 6 .

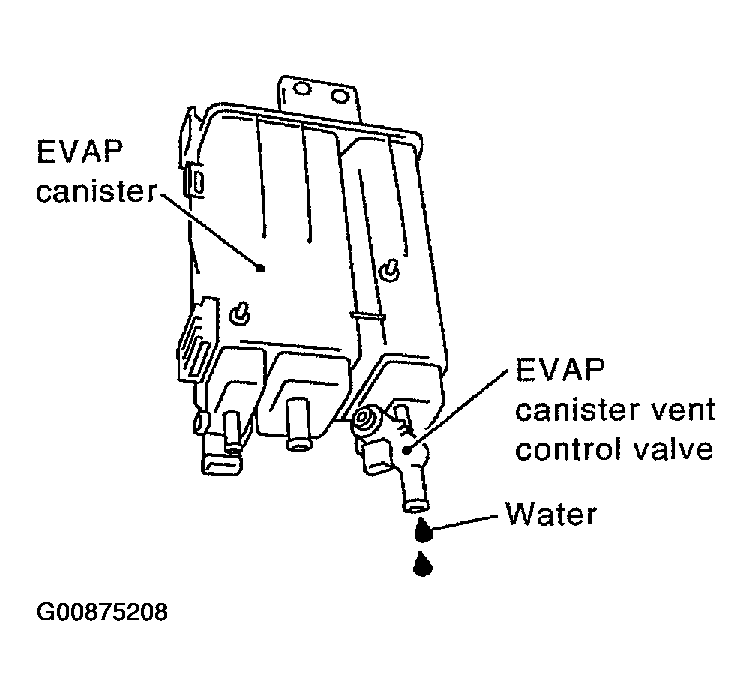

Fig 1: Check If EVAP Canister Saturated With Water
G00875208Courtesy of NISSAN MOTOR CO., U.S.A.
