Drive Gear Runout

WARNING: This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

Check runout of drive gear with a dial gauge.

  1. Runout limit : 0.05 mm (0.0020 in) less

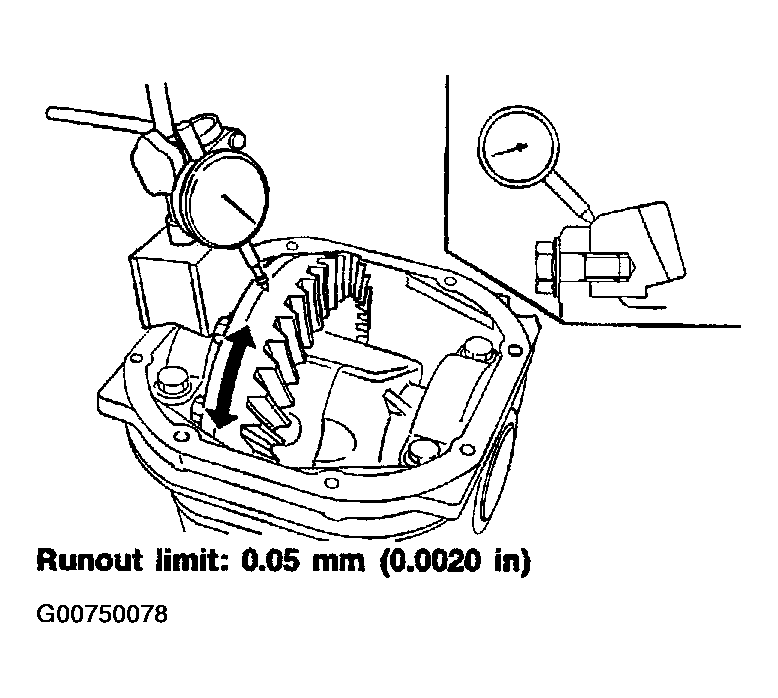

Fig 1: Checking Runout Of Drive Gear
G00750078Courtesy of NISSAN MOTOR CO., U.S.A.
