Removal & Installation: Starter

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect negative battery cable.
  2. Remove intake manifold. See ENGINE MECHANICAL - TITAN - 5.6L article under ENGINE.
  3. Disconnect starter harness connectors.
  4. Remove starter motor mounting bolts. See Fig 1.
  5. Remove starter motor from under vehicle.
  6. To install, reverse removal procedure. Tighten all bolts and nuts to specification. See TORQUE SPECIFICATIONS .

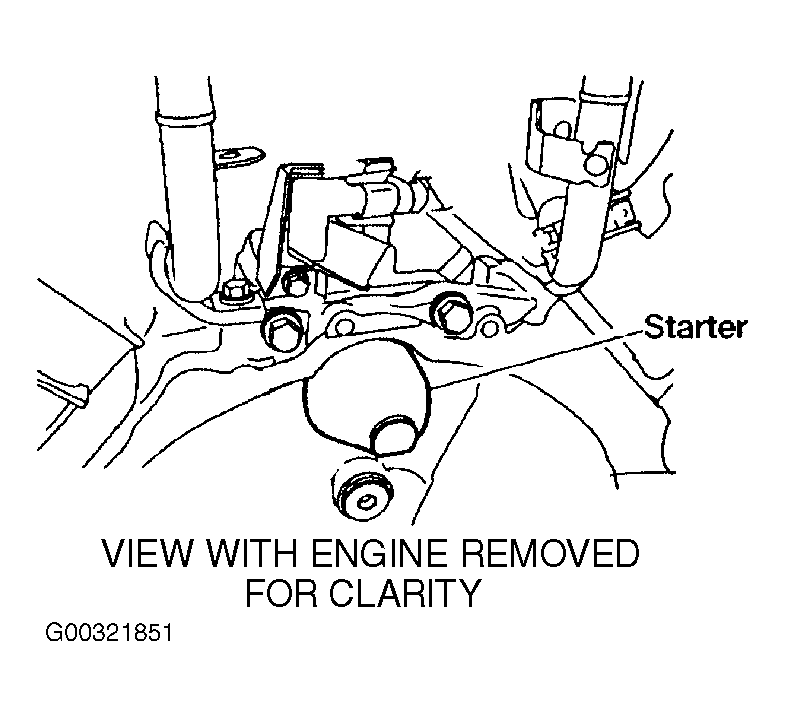

Fig 1: Removing & Installing Starter
G00321851Courtesy of NISSAN MOTOR CO., U.S.A.
