R Position

WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

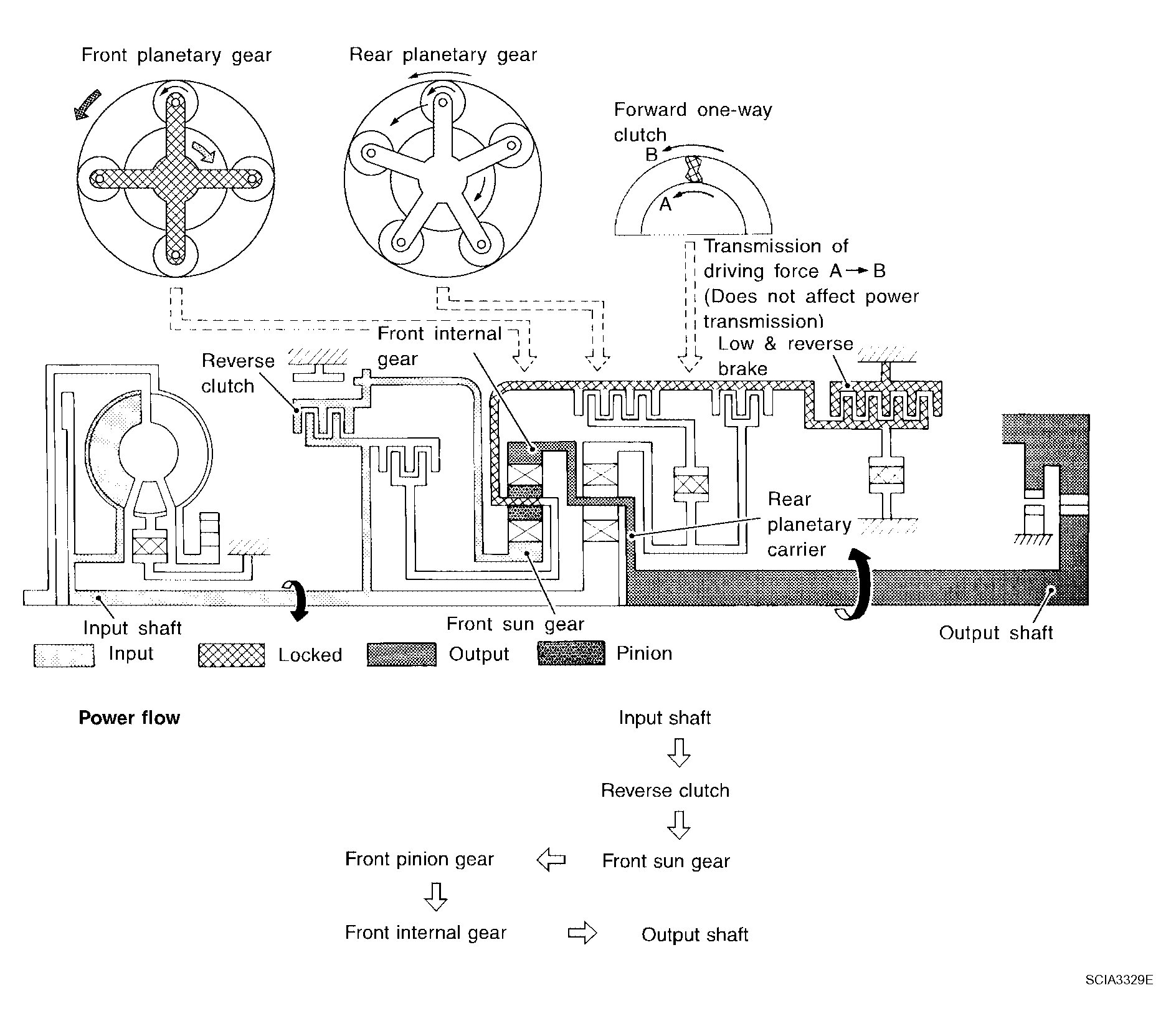

Fig 1: Power Transmission - R Position
G04197285Courtesy of NISSAN MOTOR CO., U.S.A.
R POSITION DESCRIPTION

  • Reverse clutch
  • Low & reverse brake
 Front planetary carrier is stationary because of the operation of low & reverse brake.
Input power is transmitted to front sun gear through reverse clutch, which drives front internal gear in the opposite direction.
Engine brake As there is no one-way clutch in the power transmission line, engine brake can be obtained when decelerating.
