Relationship Between Mil, DTC, 1ST Trip DTC And Driving Patterns For "Misfire" < Exhaust Quality Deterioration >, "Fuel Injection System"

WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

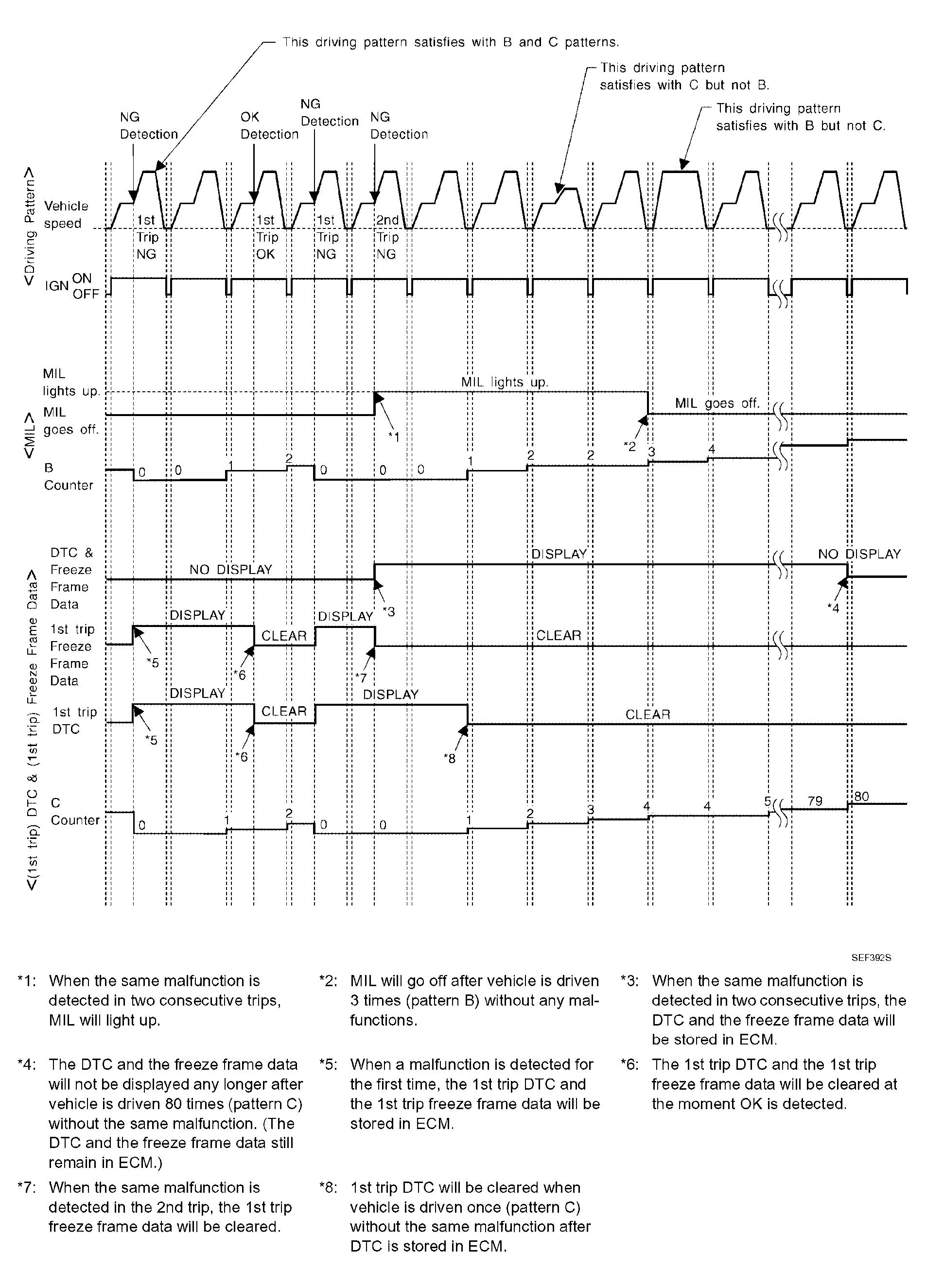

Fig 1: MIL, DTC, 1st Trip DTC And Driving Patterns For Misfire (Exhaust Quality Deterioration), Fuel Injection System Relationship Chart
G04184933Courtesy of NISSAN MOTOR CO., U.S.A.
