Removal and Installation of Hood Assembly

WARNING: This page is about a different car, the 2008 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

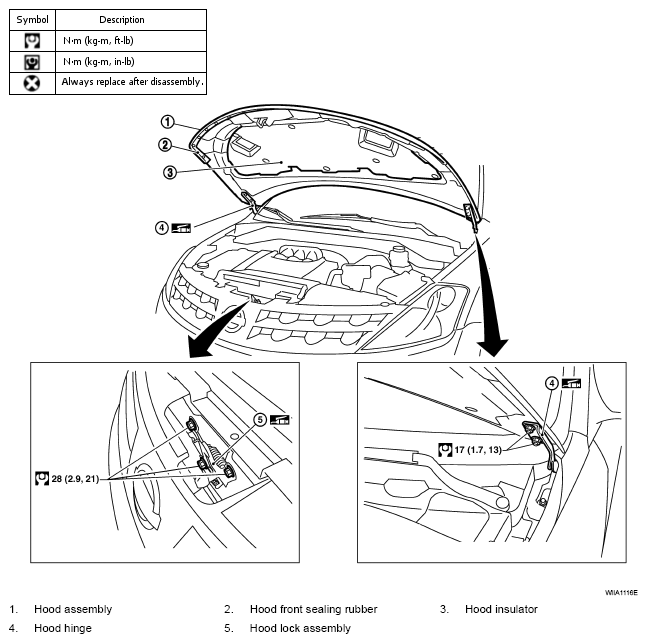

Fig 1: Hood Assembly Replacement Components With Torque Specifications
G04906989Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Support the hood by the striker with a suitable tool to prevent it from falling.
  2. Remove the hinge to hood nuts to remove the hood assembly.
    CAUTION: Operate with two workers, because of its heavy weight.
  3. Installation is in the reverse order of removal.
