Brake Pedal

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

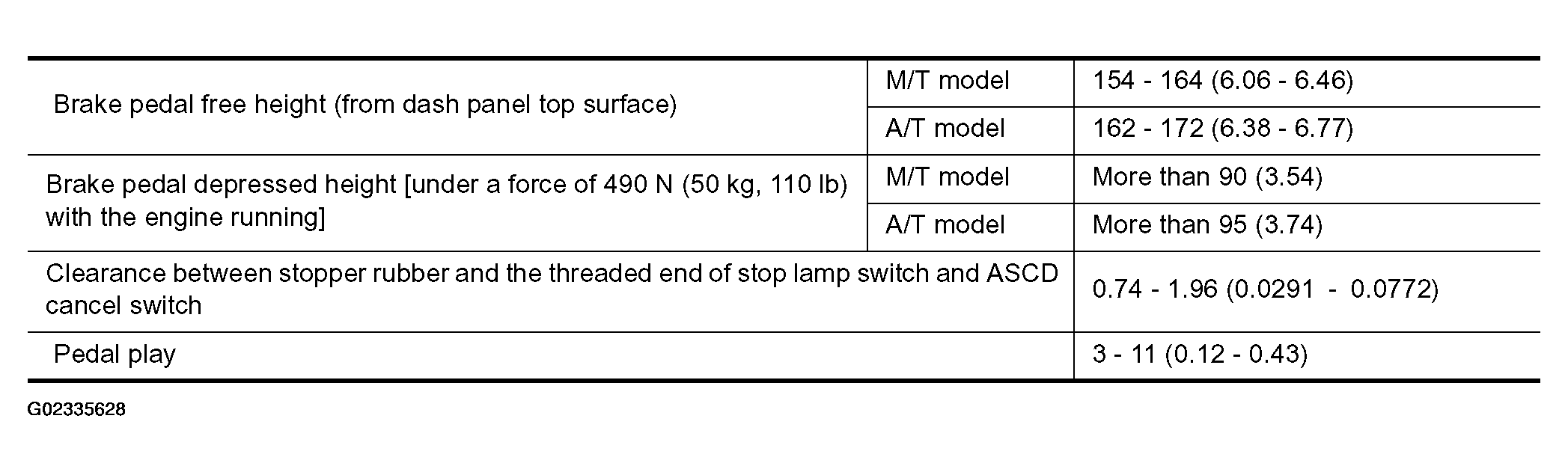

Fig 1: Brake Pedal Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: The units displayed in Fig 1 are mm (in).
