Disassembly and Assembly: Disassembly

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Master cylinder cannot be disassembled.
  • Remove the reservoir tank only when absolutely necessary.
  1. Clamp flange of cylinder body in vise as shown in Fig 1.
    CAUTION:
    • Using copper plate or cloth to cover flange for securing vise.
    • When securing master cylinder assembly in a vise, be sure not to over tighten.
    • Be sure to fix the flange part with the installation side of cylinder body brake tube up.

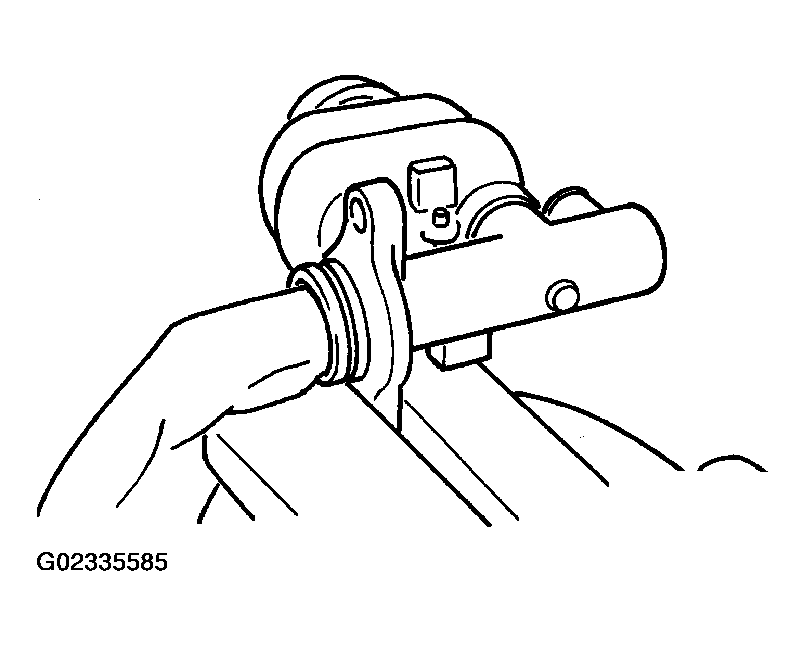

    Fig 1: Clamping Flange Of Cylinder Body In Vise
    G02335585Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Using a pin-punch [commercial service tool: diameter approx. 4 mm (0.16 in)], remove pin form reservoir tank.
  3. Remove master cylinder assembly from vise.
  4. Remove reservoir tank and grommet from cylinder body.

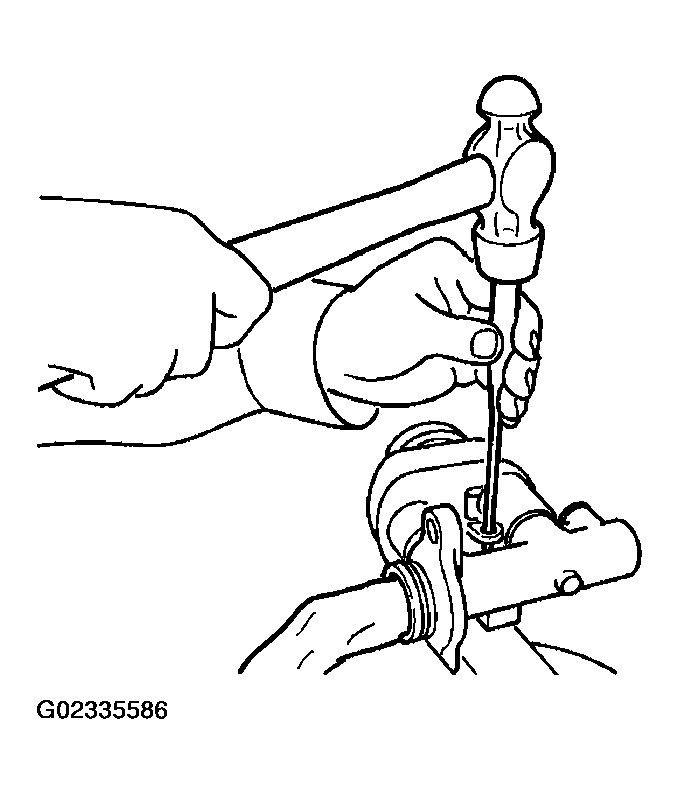

    Fig 2: Removing Pin Form Reservoir Tank Using Pin-Punch
    G02335586Courtesy of NISSAN MOTOR CO., U.S.A.
