Premium System

WARNING: This page is about a different car, the 2006 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

For PG Power or Section, go to SYSTEM WIRING DIAGRAMS .

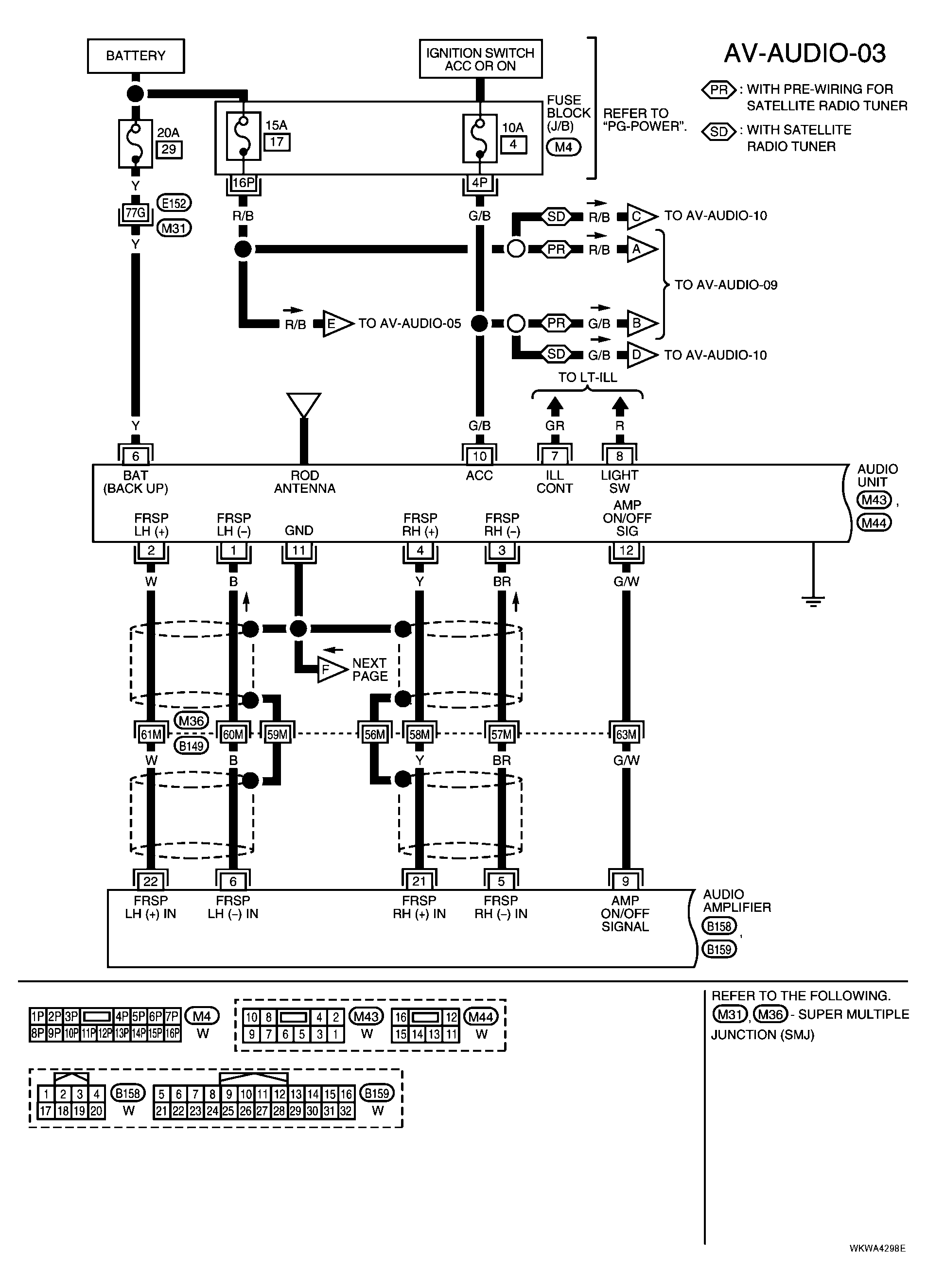

Fig 1: AV-AUDIO-03 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

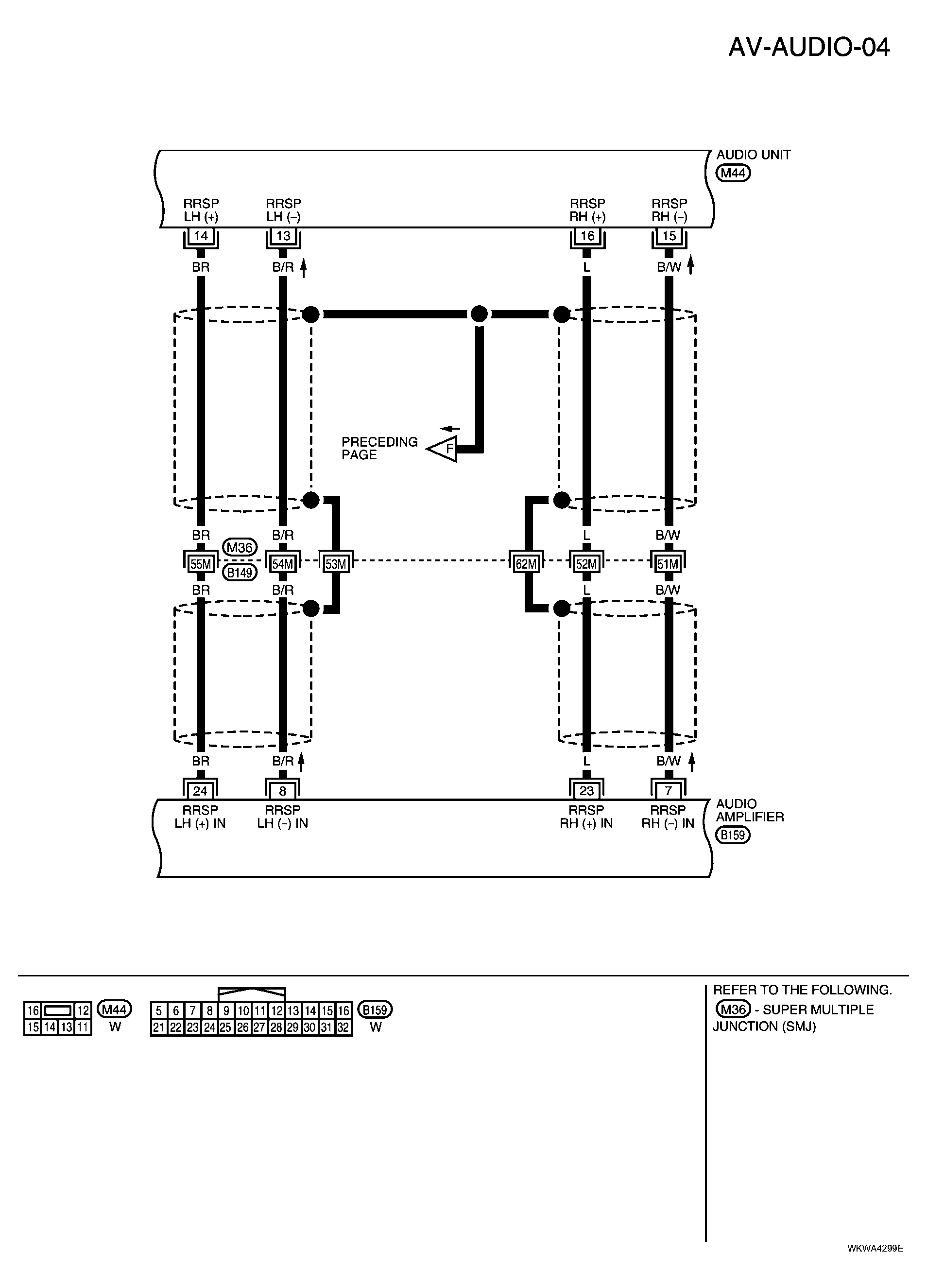

Fig 2: AV-AUDIO-04 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

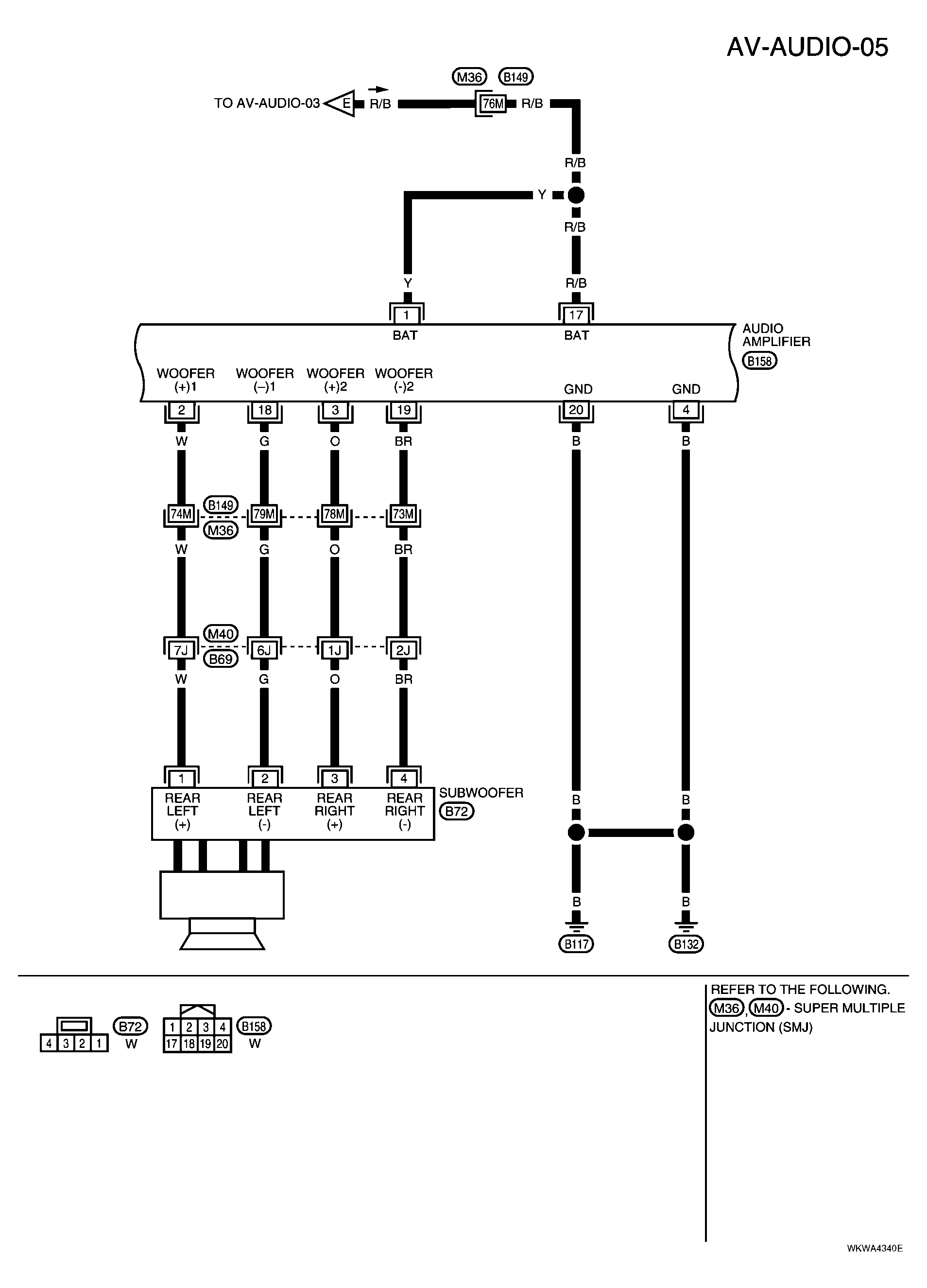

Fig 3: AV-AUDIO-05 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

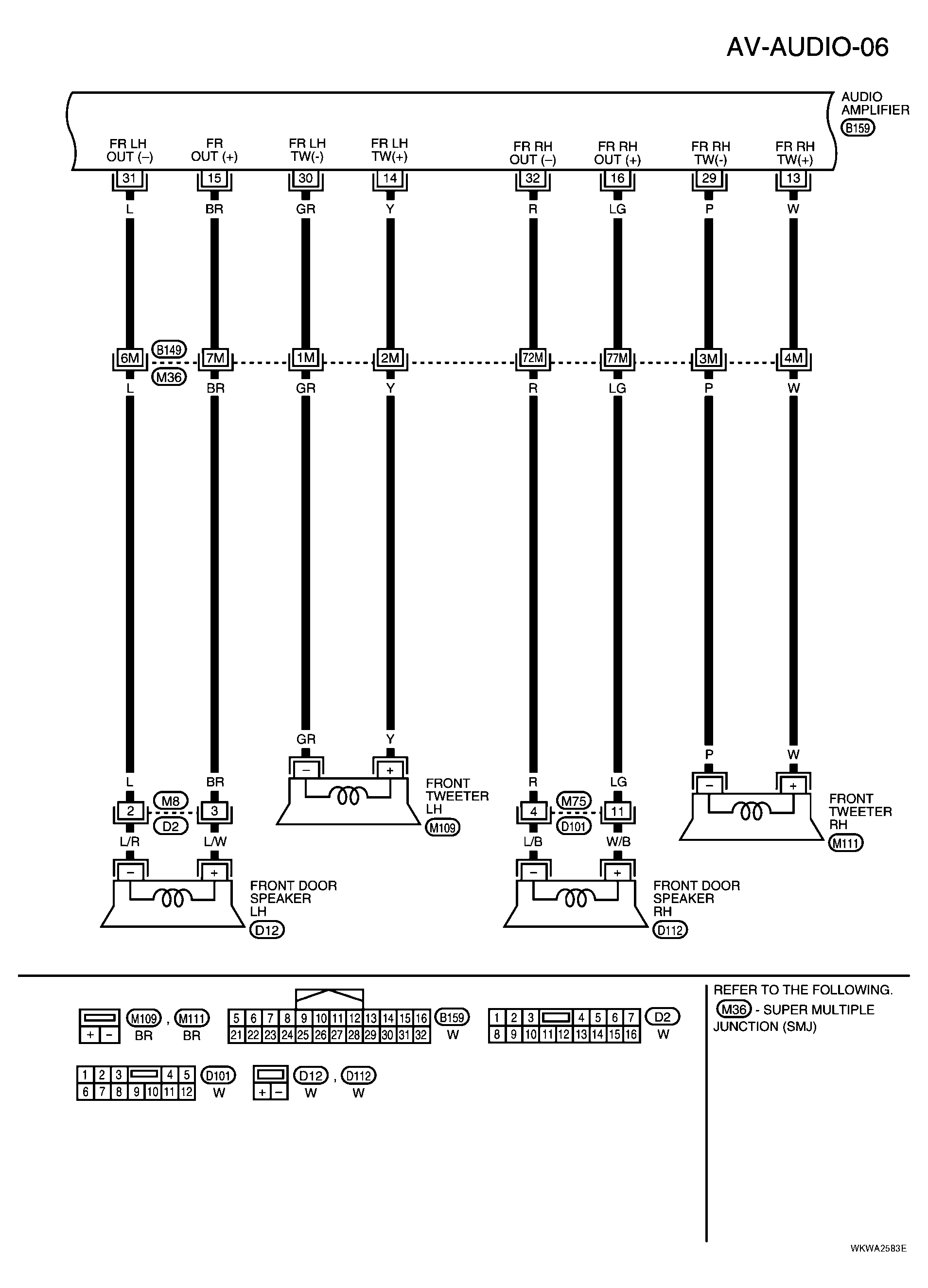

Fig 4: AV-AUDIO-06 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

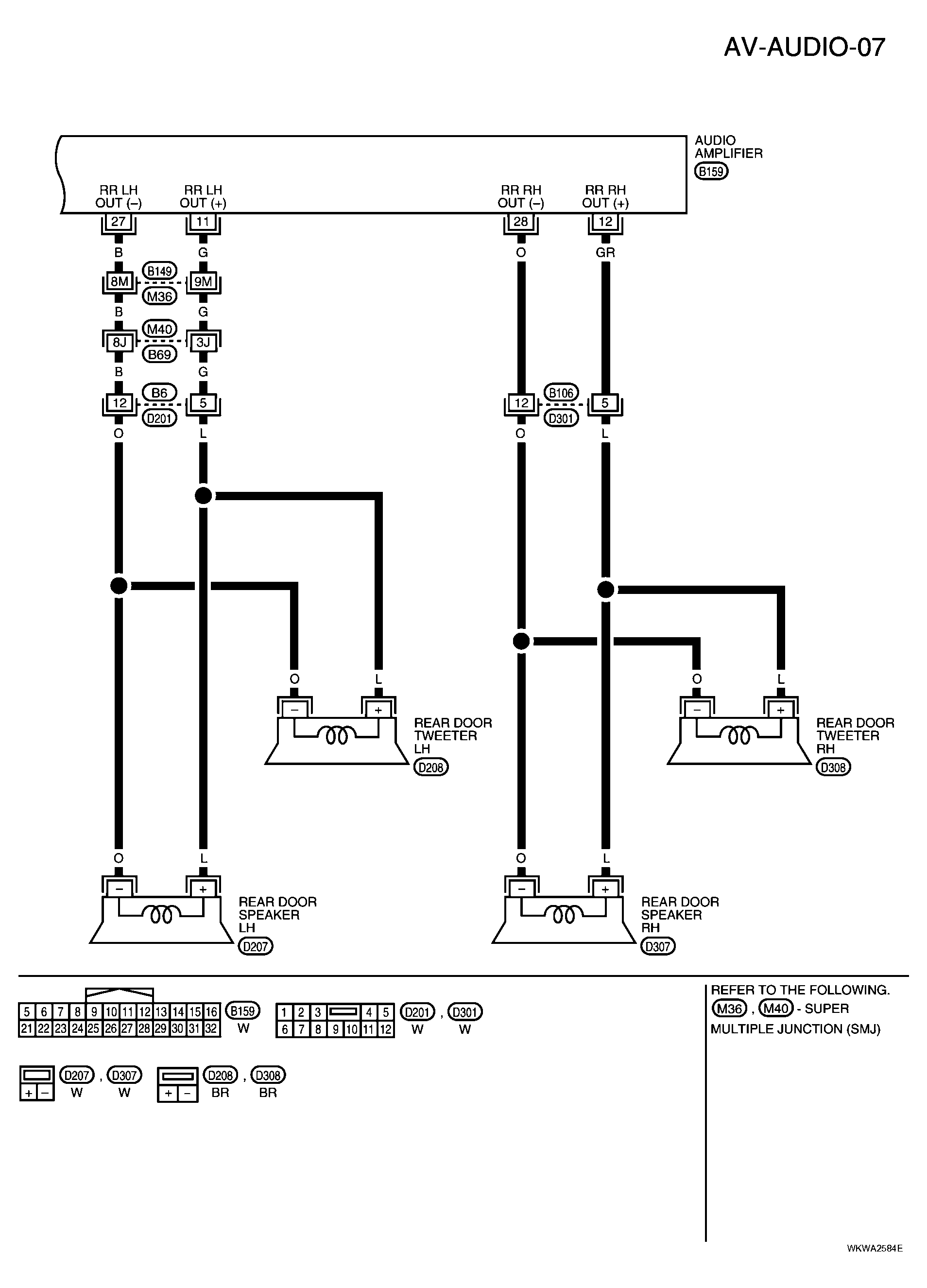

Fig 5: AV-AUDIO-07 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

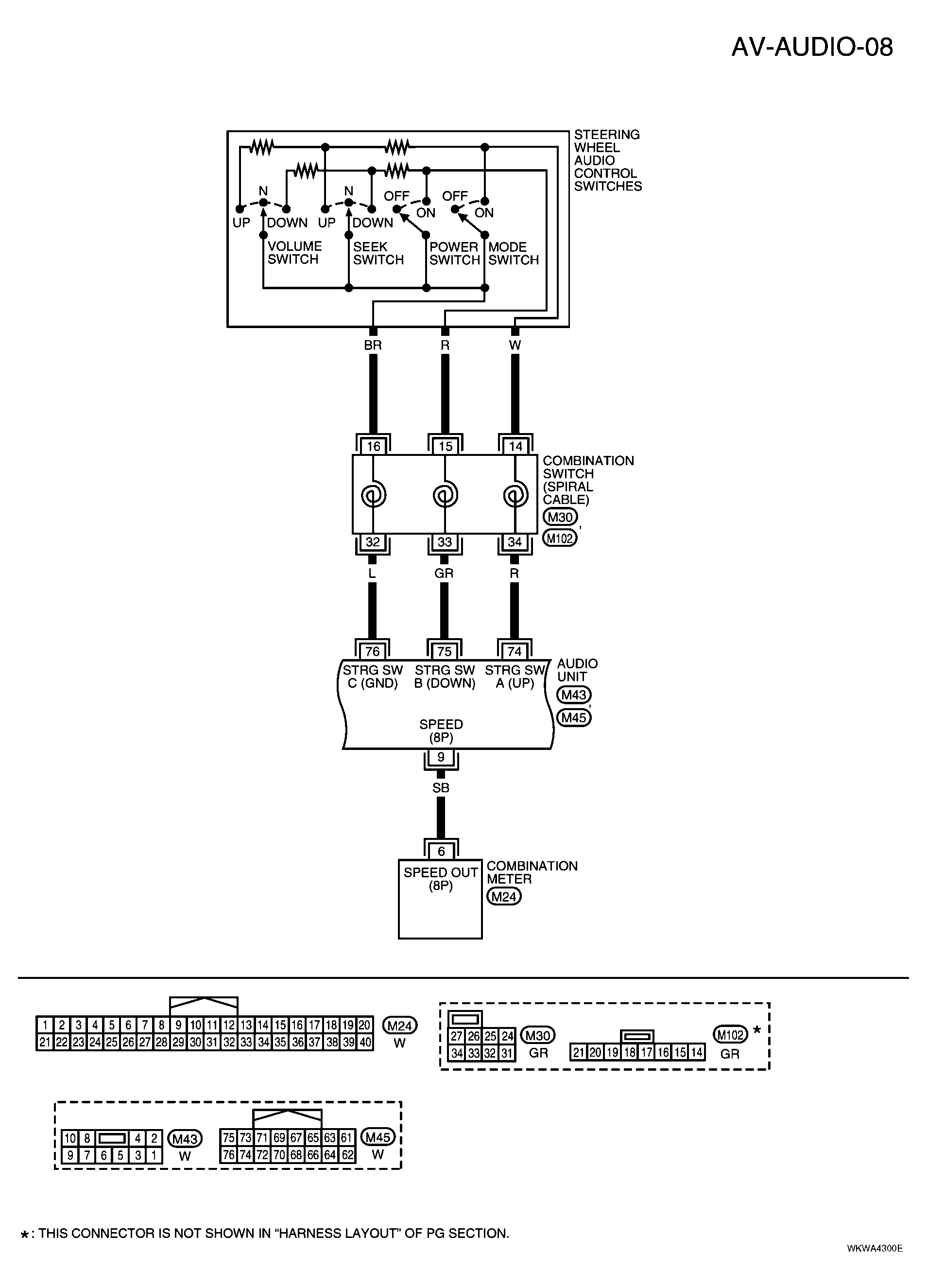

Fig 6: AV-AUDIO-08 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

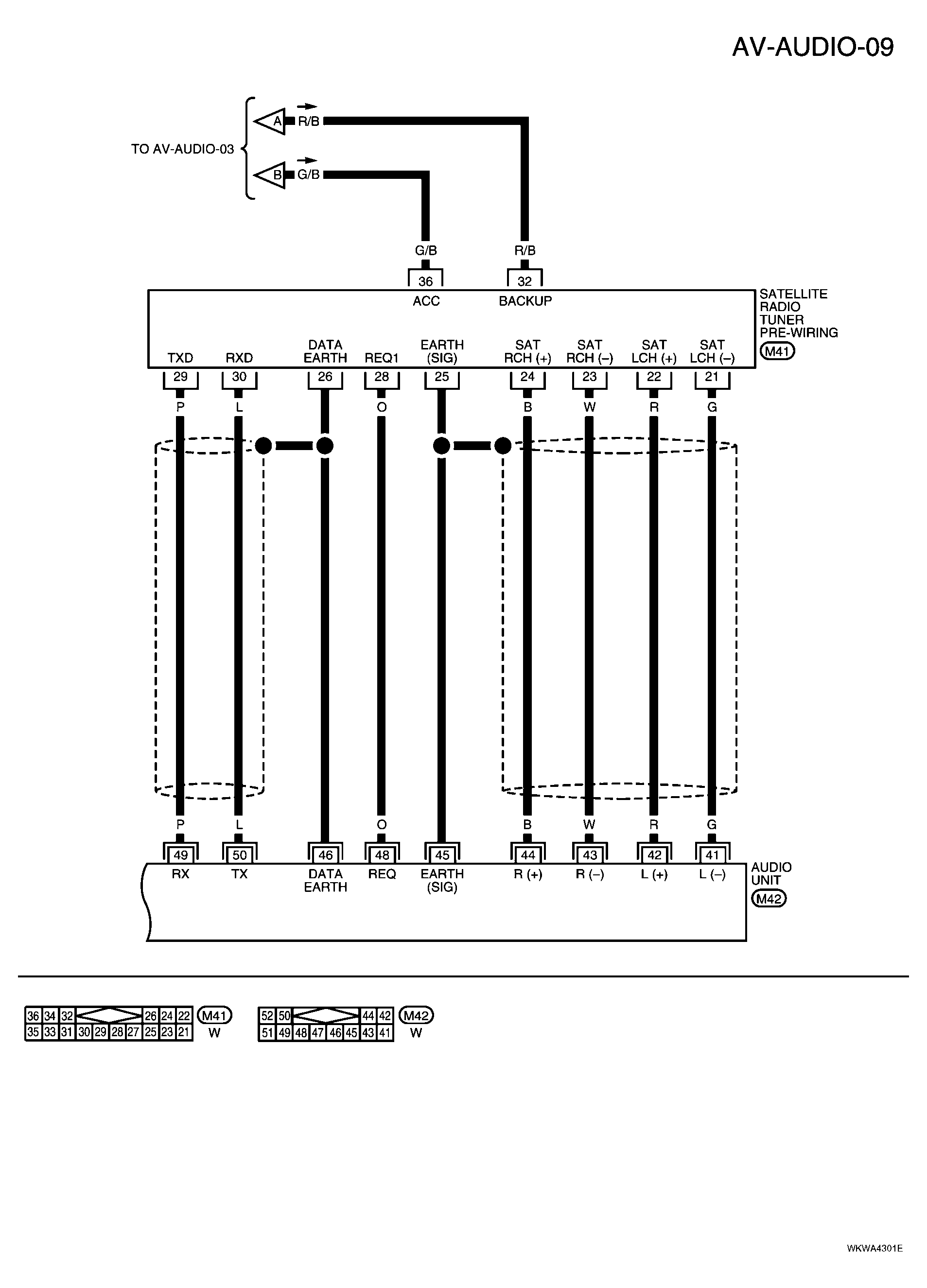

Fig 7: AV-AUDIO-09 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

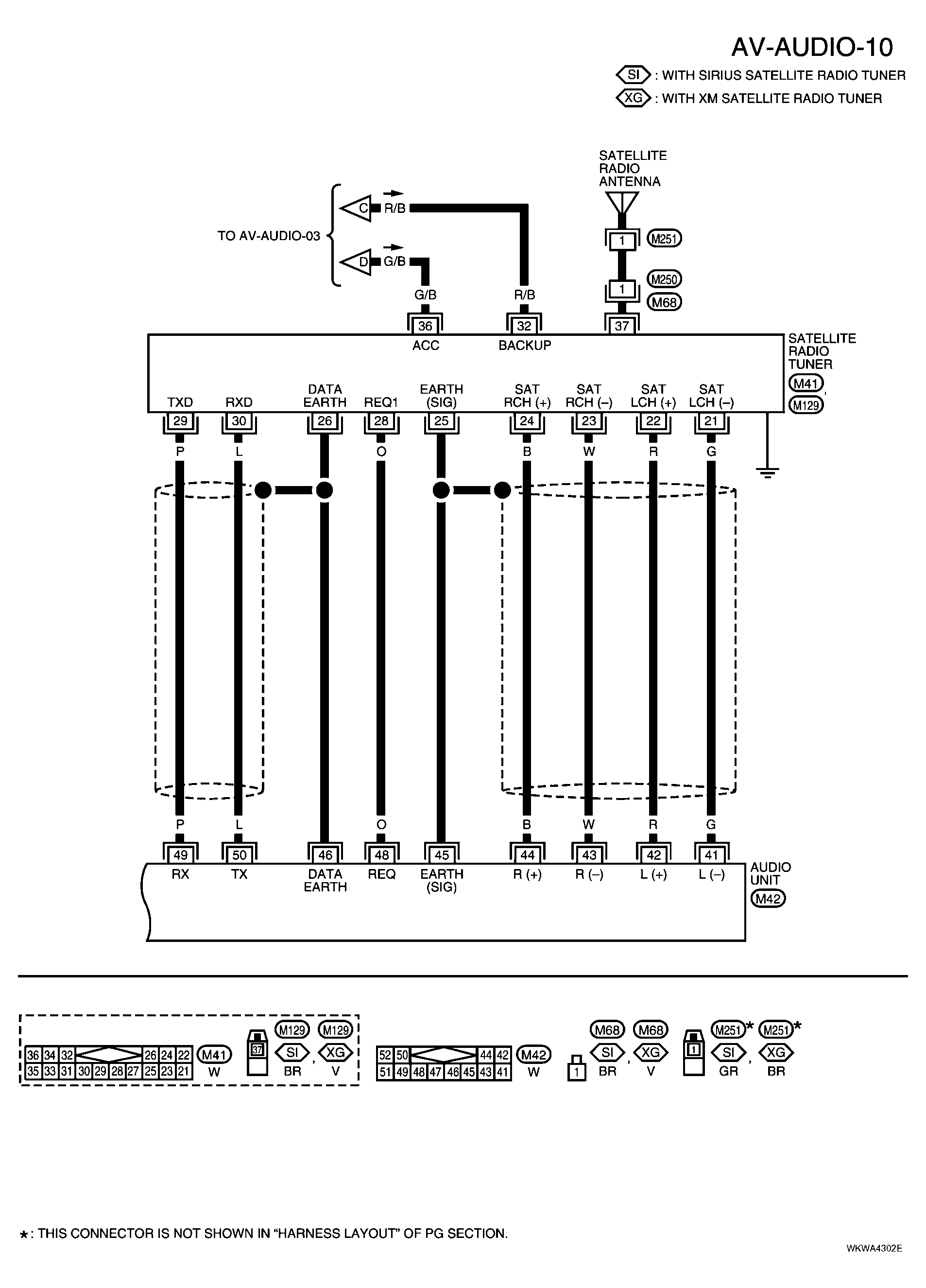

Fig 8: AV-AUDIO-10 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.
