Sound Is Not Heard From Front Door Speaker or Front Tweeter (Base System)
WARNING: This page is about a different car, the 2006 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

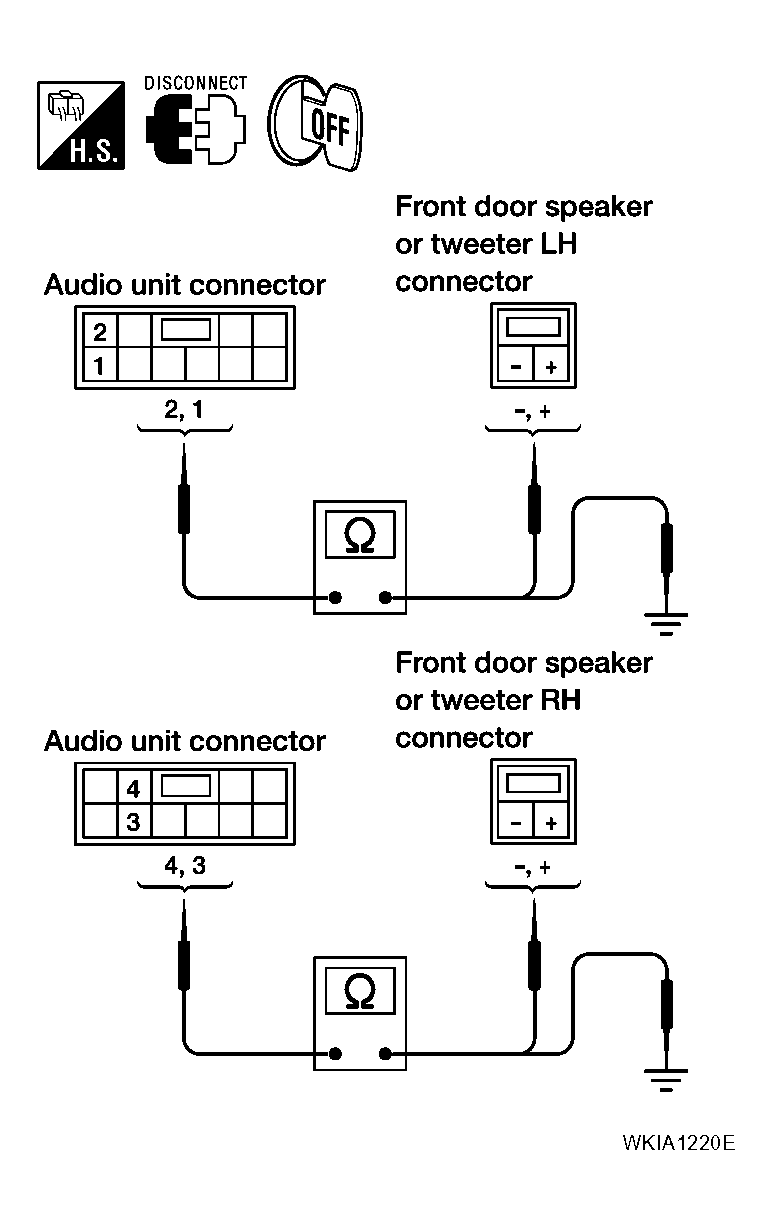

- HARNESS CHECK
- Turn ignition switch OFF.
- Disconnect audio unit connector M43 and suspect speaker or tweeter connector.
- Check continuity between audio unit harness connector M43 terminal and suspect speaker or tweeter harness connector terminal.TERMINAL CONTINUITY CHART
Terminals Continuity Audio unit Speaker or tweeter Connector Terminal Connector Terminal M43 2 D12 + Yes 1 - 4 D112 + 3 - 2 M109 + 1 - 4 M111 + 3 - - Check continuity between audio unit harness connector M43 terminal and ground.
Courtesy of NISSAN MOTOR CO., U.S.A.
TERMINAL CONTINUITY CHARTTerminals Continuity Audio unit - Connector Terminal M43 2 Ground No 1 4 3 OK or NG
OK: GO TO 2.
NG :
- Check connector housings for disconnected or loose terminals.
- Repair harness or connector.

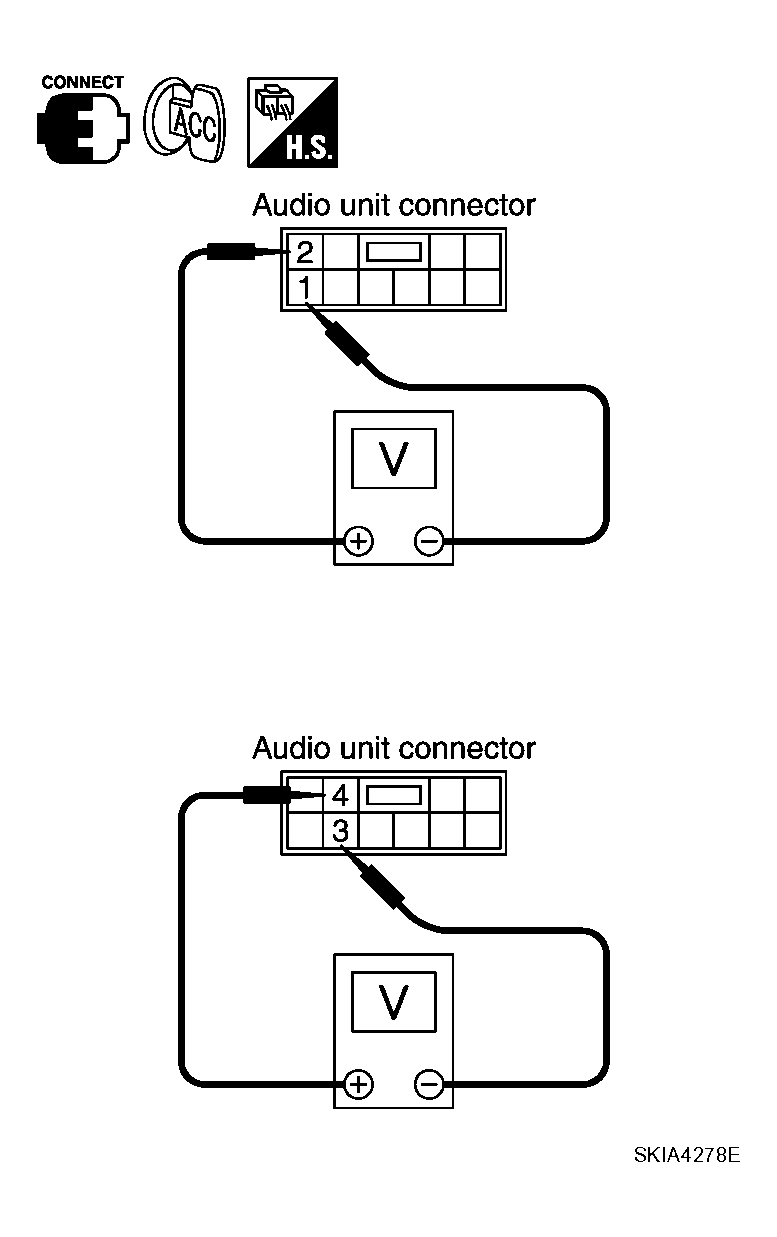

- FRONT SPEAKER SIGNAL CHECK
- Connect audio unit connector and front speaker or tweeter connector.
- Turn ignition switch to ACC.
- Push "POWER" switch.
- Check the signal between audio unit harness connector terminal and ground with CONSULT-II or oscilloscope.
TERMINAL CONTINUITY CHARTTerminals Condition Reference signal (+) (-) Connector Terminal Connector Terminal M43 2 M43 1 Receive audio signal 4 3 OK or NG
OK: Replace speaker. Refer to "FRONT DOOR SPEAKER " or "FRONT TWEETER ".
NG: Replace audio unit. Refer to "REMOVAL AND INSTALLATION ".
