FRONT TWEETER Removal: Notes

WARNING: This page is about a different car, the 2006 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front tweeter grille.
  2. Remove the front tweeter screws.
  3. Disconnect the connector, and remove front tweeter from instrument panel.

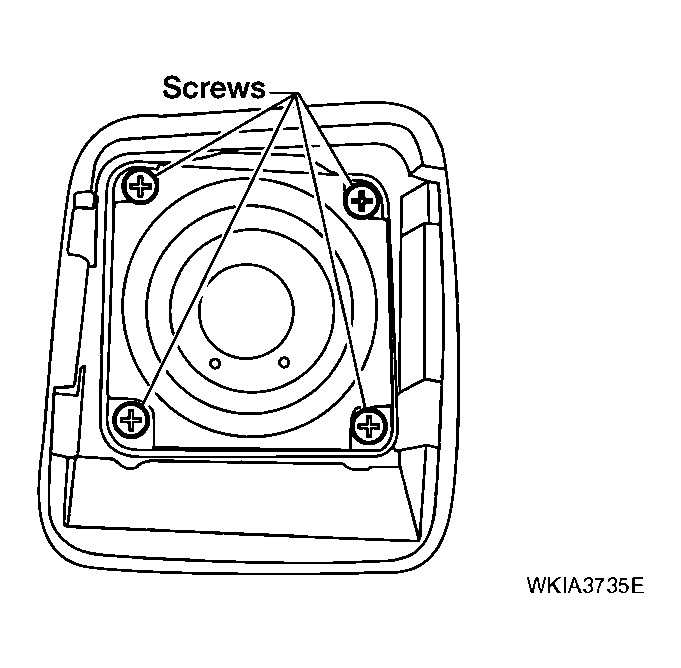

Fig 1: Removing Front Tweeter Screws
G04206566Courtesy of NISSAN MOTOR CO., U.S.A.
