Commercial Service Tools

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
COMMERCIAL SERVICE TOOLS

Tool name Description

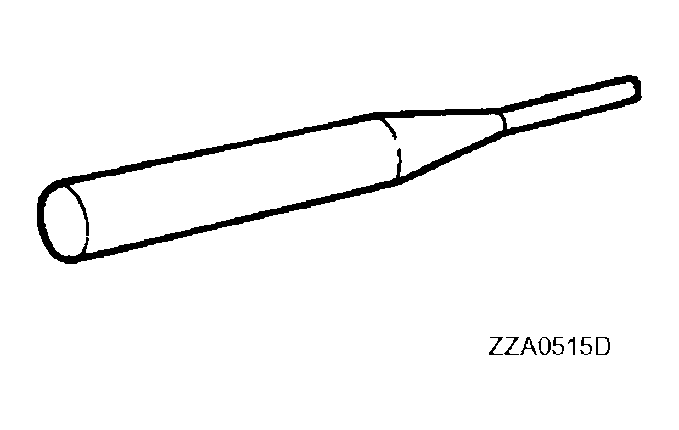

Pin punch
Tip diameter: 4.5 mm (0.177 in) dia.
G04120381Courtesy of NISSAN MOTOR CO., U.S.A.
Removing and installing master cylinder spring pin
1. Flare nut crowfoot
a: 10 mm (0.39 in)
2. Torque wrench
G04076680Courtesy of NISSAN MOTOR CO., U.S.A.
Removing and installing clutch piping
Power tool
G04083840Courtesy of NISSAN MOTOR CO., U.S.A.
Loosening bolts and nuts
