Disassembly and Assembly: Disassembly

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the TORX bolts, and then remove horn plate kit (1) from steering wheel.

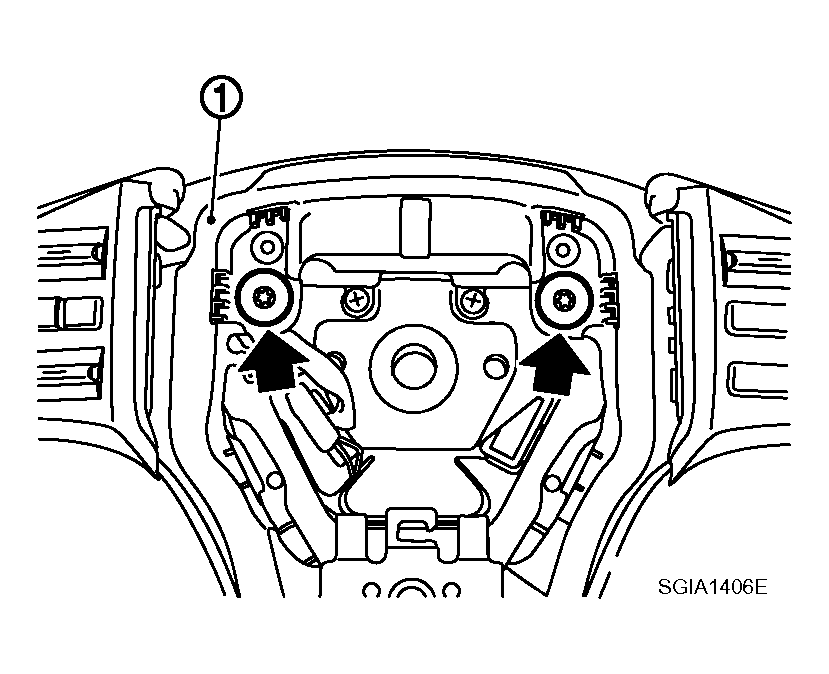

    Fig 1: Identifying Torx Bolts And Horn Plate Kit
    G04122079Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Remove fixing screws of body cover, and then remove body cover from steering wheel.

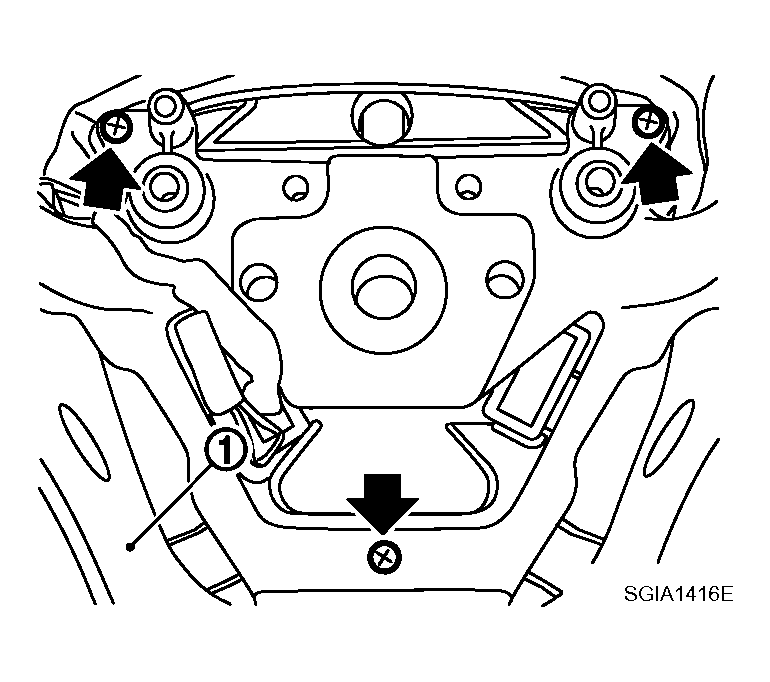

    Fig 2: Identifying Fixing Screws Of Body Cover And Body Cover
    G04122080Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove fixing screws of steering switch, and then remove steering switch from steering wheel.

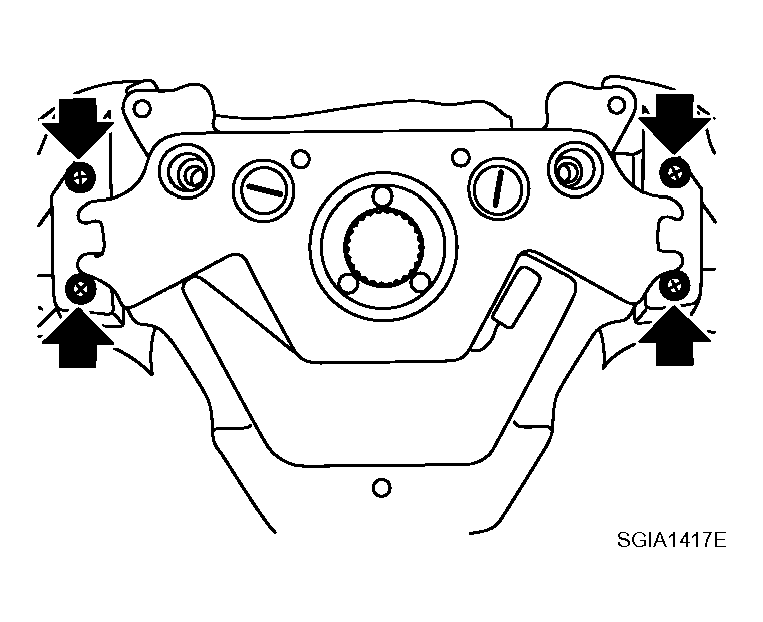

    Fig 3: Identifying Fixing Screws And Steering Switch
    G04122081Courtesy of NISSAN MOTOR CO., U.S.A.
