Disassembly and Assembly: Assembly

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

Note the following, and assembly is in the reverse order of disassembly.

Before installing body cover, check and adjust the gap between driver air bag module and steering wheel audio control switch with the following procedure.

Install steering wheel audio control switch, temporary fix it by screws.
Install driver air bag module after horn plate kit.
CAUTION: Do not pinch harness.
Measure the gap between driver air bag module (1) and steering wheel audio control switch (2) by thickness gauge or other tool. If measured gap is out of standard, adjust switch location properly.

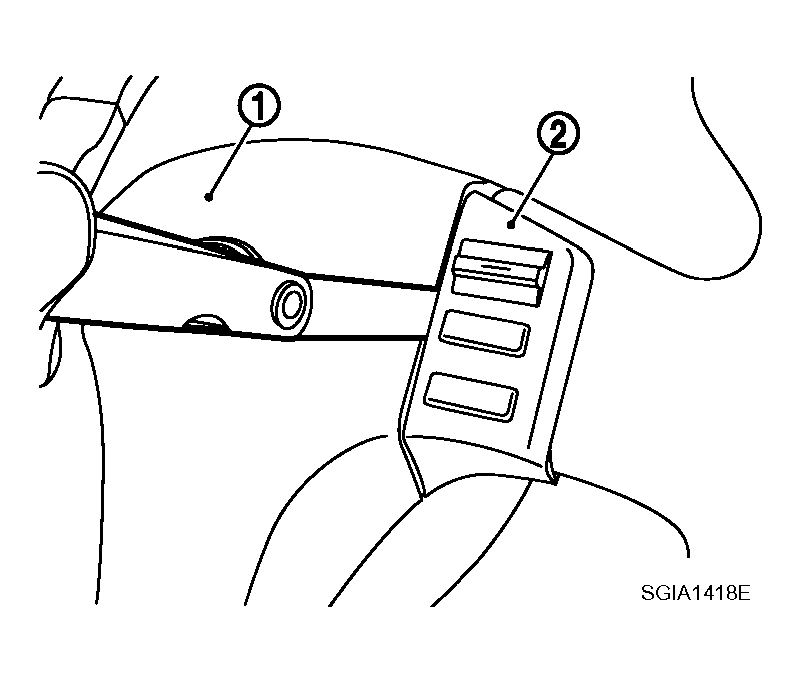

Fig 1: Measuring Gap Between Driver Air Bag Module And Steering Wheel Audio Control Switch
Courtesy of NISSAN MOTOR CO., U.S.A.

Gap standard : 0.6 - 2.0 mm (0.024 - 0.079 in)

NOTE: Cover the thickness gauge or other tool by tape or something to prevent scratches when measuring the gap.
Remove driver air bag module.
