Disassembly and Assembly: Components

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

For GI, go to GENERAL INFORMATION -- SEDAN .

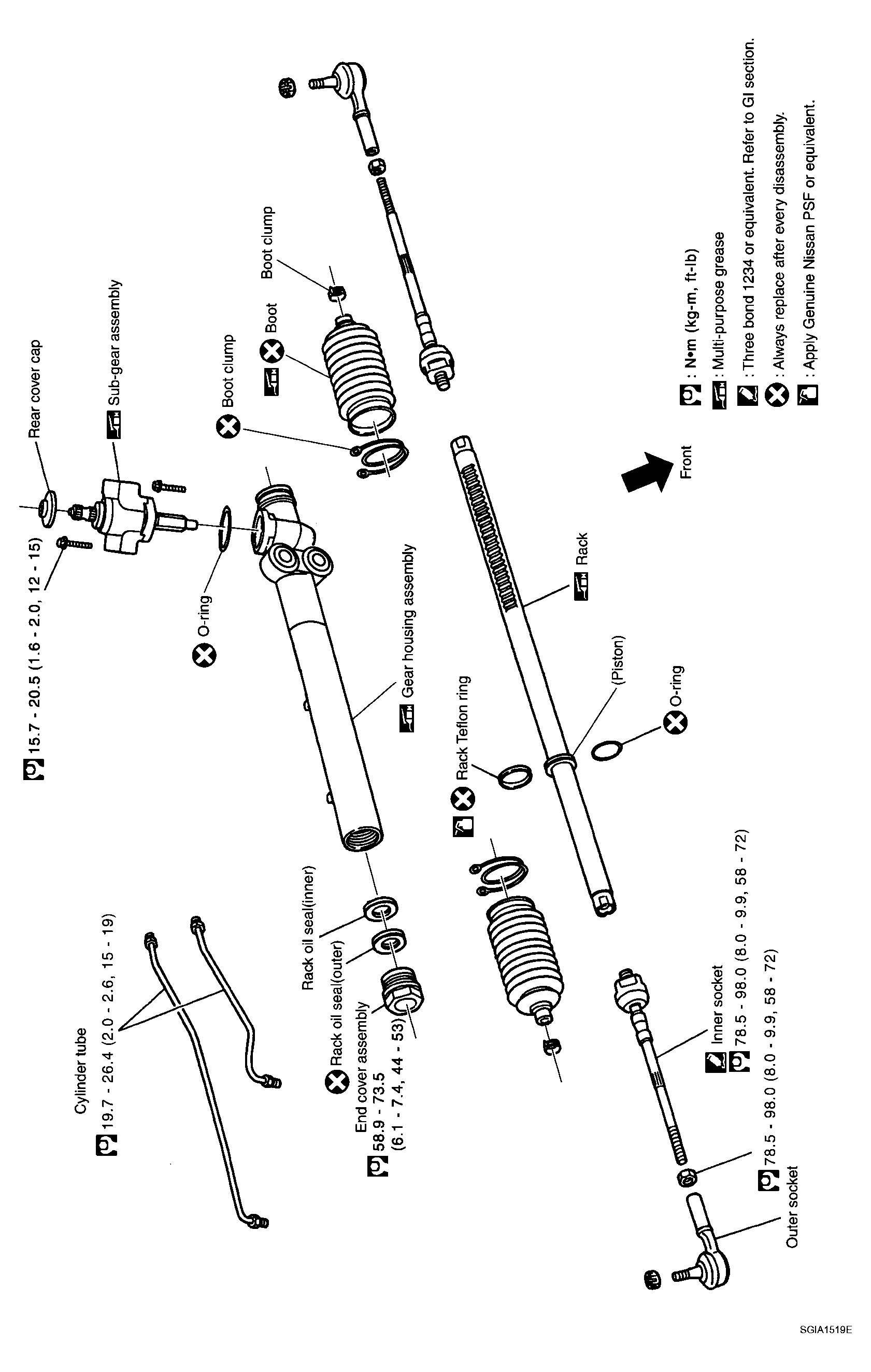

Fig 1: Exploded View Of Power Steering Gear With Torque Specifications
G04122098Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
  • Secure steering gear assembly with a vise, using copper plates or something similar to prevent it from being damaged. Do not grip cylinder in a vise.
  • Before performing disassembly, clean steering gear assembly with kerosene. Be careful not to bring any kerosene into contact with the discharge and return port connectors.

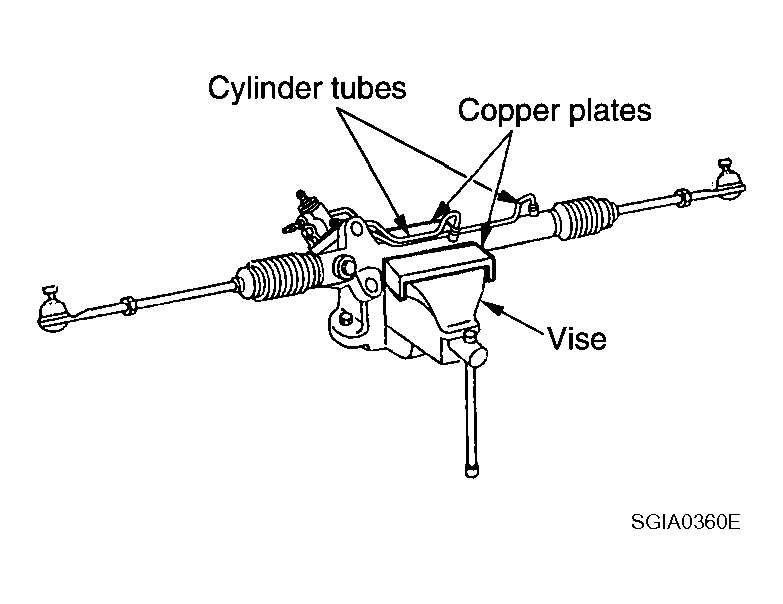

Fig 2: Securing Steering Gear Assembly With A Vise
G04122099Courtesy of NISSAN MOTOR CO., U.S.A.
