Components (Except for 18 Inch Tire Models)

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

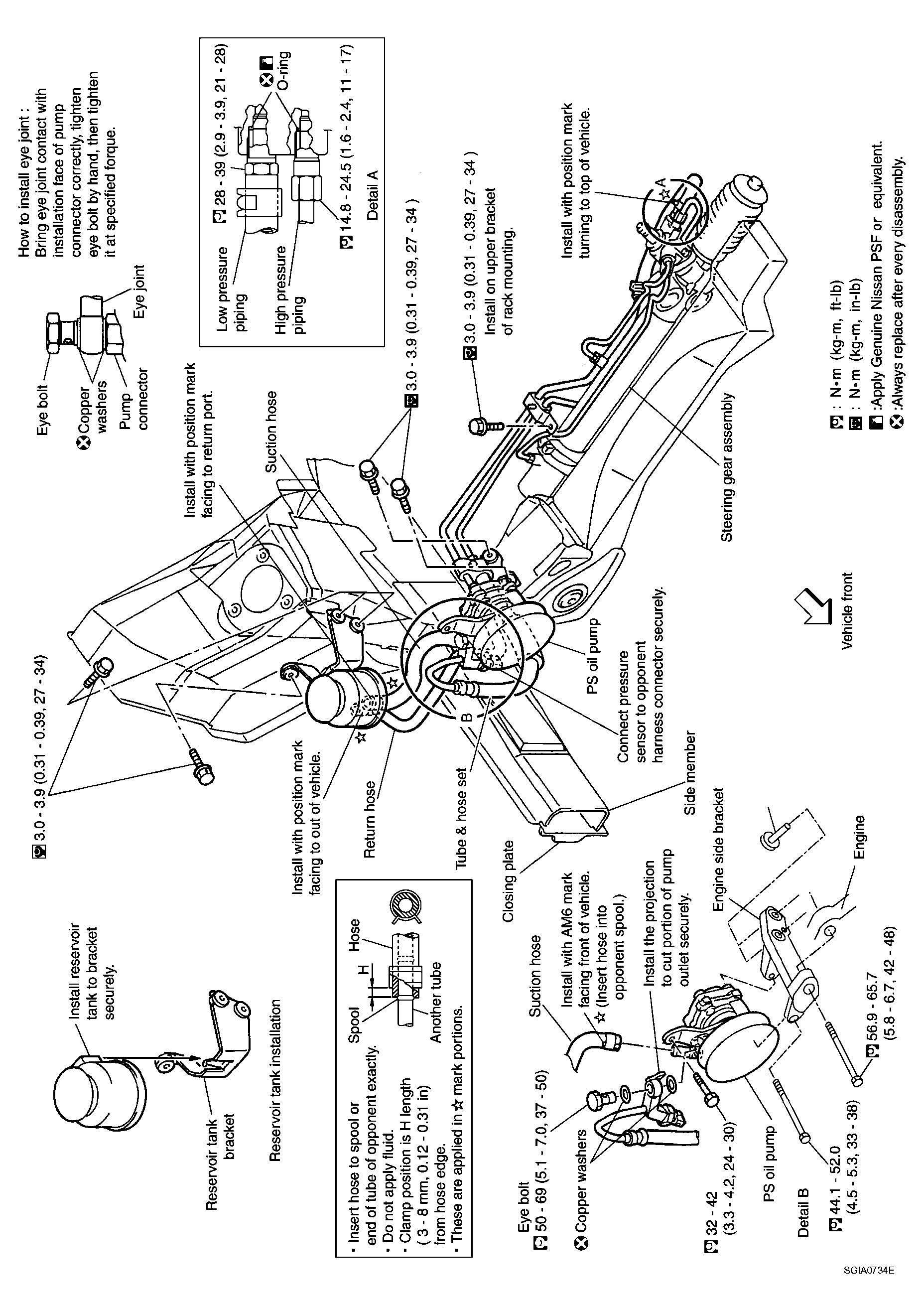

Fig 1: Hydraulic Line Replacement Components With Torque Specifications (Except For 18 Inch Tire Models)
G04122141Courtesy of NISSAN MOTOR CO., U.S.A.
