Special Service Tools

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

SPECIAL SERVICE TOOLS

Tool number
(Kent-Moore No.)
Tool name		 Description
KV381054S0 (J-34286) Puller
G04076295Courtesy of NISSAN MOTOR CO., U.S.A.
  • Removing front oil seal
  • Removing side bearing outer race
  • Removing side oil seal

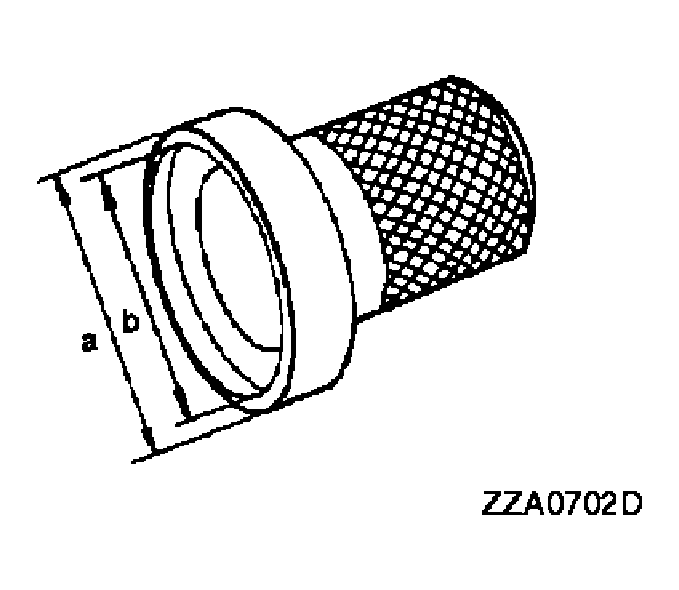

ST33400001
(J-26082) Drift
a: 60 mm (2.36 in) dia.
b: 47 mm (1.85 in) dia.
G04121362Courtesy of NISSAN MOTOR CO., U.S.A.
  • Installing front oil seal
  • Installing side oil seal (right side)

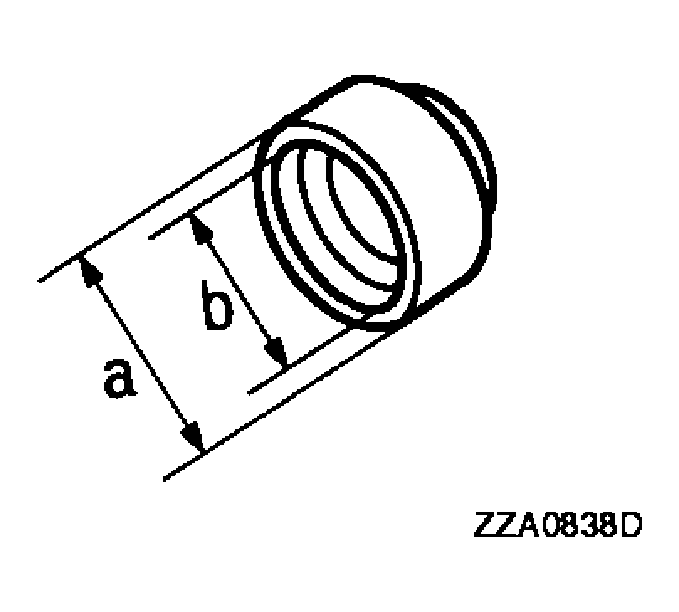

KV38102510
( - )
Drift
a: 71 mm (2.80 in) dia.
b: 65 mm (2.56 in) dia.
G04121363Courtesy of NISSAN MOTOR CO., U.S.A.
 Installing front oil seal
KV38102100
(J-25803-01)
Drift
a: 44 mm (1.73 in) dia.
b: 36 mm (1.42 in) dia.
c: 24.5 mm (0.965 in) dia.
G04076173Courtesy of NISSAN MOTOR CO., U.S.A.
 Installing side oil seal (left side)

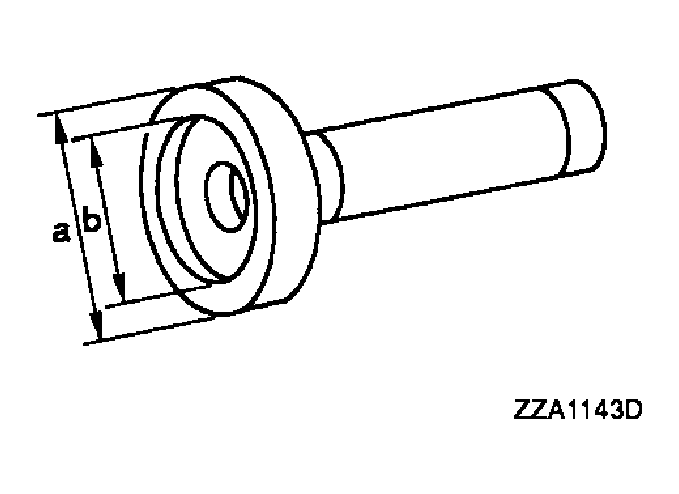

KV38100200
( - )
Drift
a: 65 mm (2.56 in) dia.
b: 49 mm (1.93 in) dia.
G04121365Courtesy of NISSAN MOTOR CO., U.S.A.
 Installing side shaft oil seal

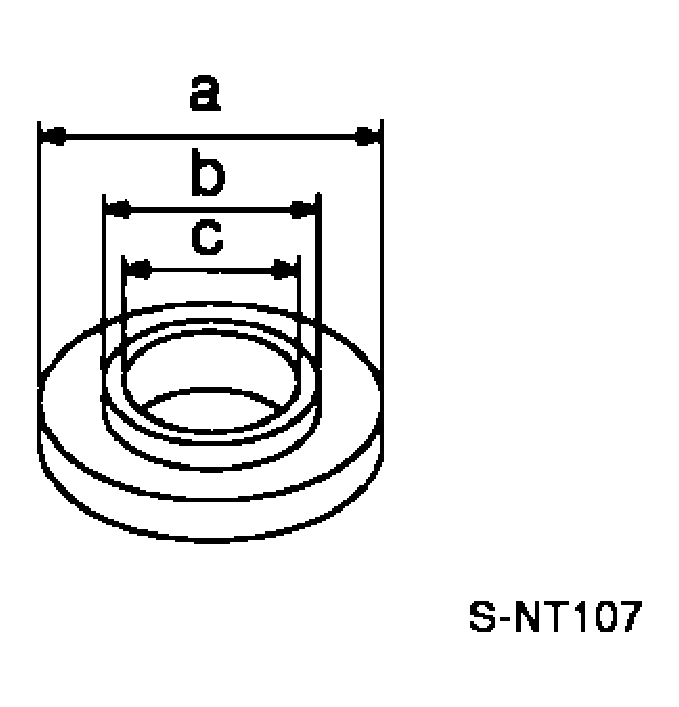

ST30032000
(J-26010-01)
Drift
a: 80 mm (3.15 in) dia.
b: 38 mm (1.50 in) dia.
c: 31 mm (1.22 in) dia.
G04121366Courtesy of NISSAN MOTOR CO., U.S.A.
  • Installing drive pinion rear bearing inner race
  • Installing side shaft
ST3127S000
(J-25765-A)
Preload gauge
  1. GG91030000

    (J-25765)

    Torque wrench

  2. HT62940000

    ( - )

    Socket adapter (1/2?)

  3. HT62900000

    ( - )

    Socket adapter (3/8")
G04198054Courtesy of NISSAN MOTOR CO., U.S.A.
 Measuring pinion bearing preload and total preload
KV10111100 (J-37228) Seal cutter
G04076167Courtesy of NISSAN MOTOR CO., U.S.A.
 Removing carrier cover

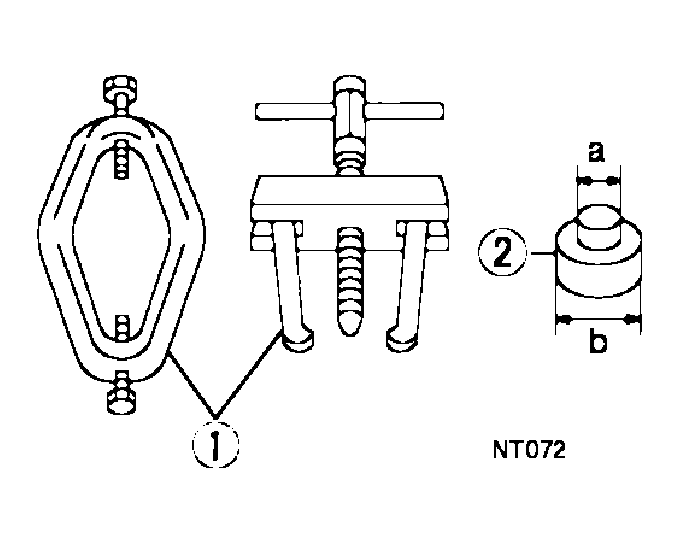

ST3306S001
(J-22888-D)
Differential side bearing puller set
  1. ST33051001

    (J-22888-20)

    Puller

  2. ST33061000

    (J-8107-2)

    Base

    a: 28.5 mm (1.122 in) dia.

    b: 38 mm (1.50 in) dia.
G04121369Courtesy of NISSAN MOTOR CO., U.S.A.
 Removing and installing side bearing inner race
ST30031000 (J-22912-01) Replacer
G04076169Courtesy of NISSAN MOTOR CO., U.S.A.
 Removing pinion rear bearing inner race

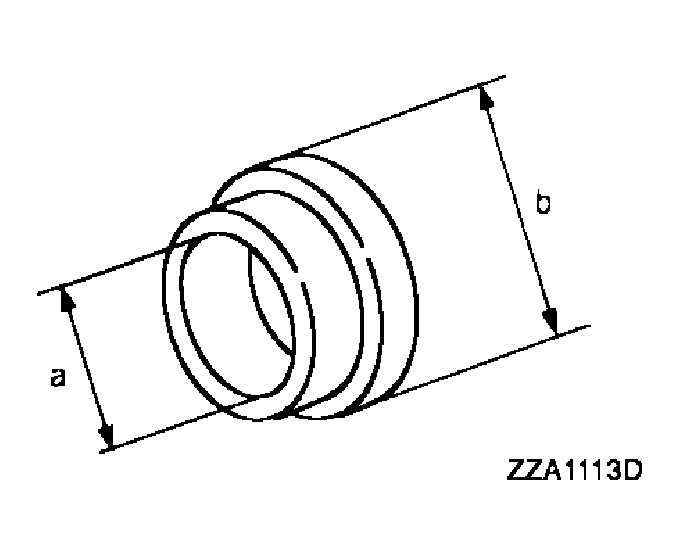

KV31103000
(J-38982)
Drift
a: 49 mm (1.93 in) dia.
b: 70 mm (2.76 in) dia.
G04121371Courtesy of NISSAN MOTOR CO., U.S.A.
 Installing side bearing outer race

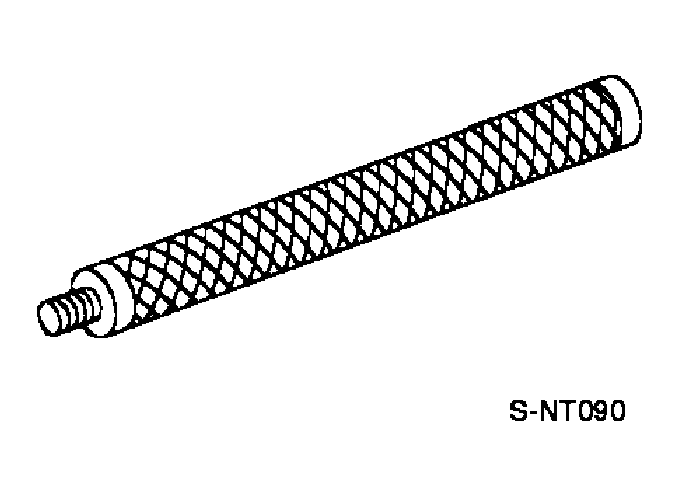

ST30611000
(J-25742-1)
Drift bar
G04121372Courtesy of NISSAN MOTOR CO., U.S.A.
 Installing side bearing outer race (Use with KV31103000)

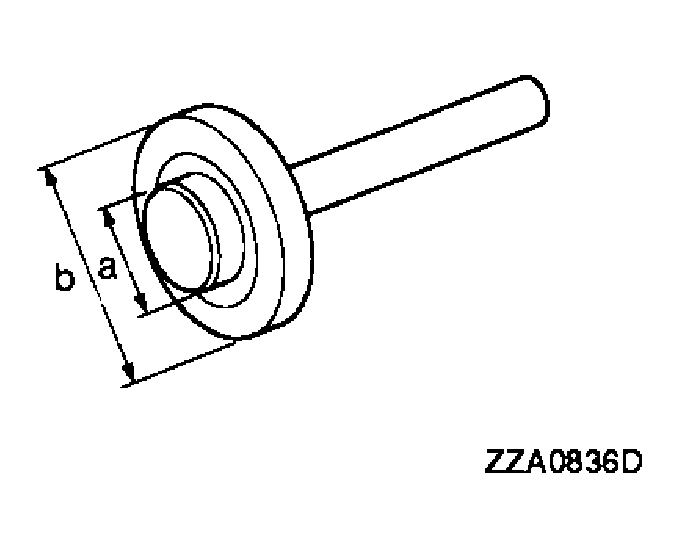

ST37820000
( - )
Drift
a: 39 mm (1.54 in) dia.
b: 72 mm (2.83 in) dia.
G04121373Courtesy of NISSAN MOTOR CO., U.S.A.
 Installing drive pinion front and rear bearing outer race

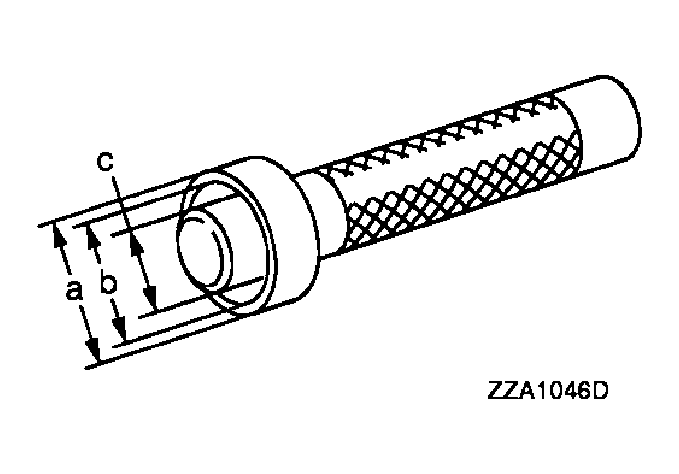

ST33230000
(J-25805-01)
Drift
a: 51 mm (2.01 in) dia.
b: 41 mm (1.61 in) dia.
c: 28.5 mm (1.122 in) dia.
G04121374Courtesy of NISSAN MOTOR CO., U.S.A.
 Installing side bearing inner race

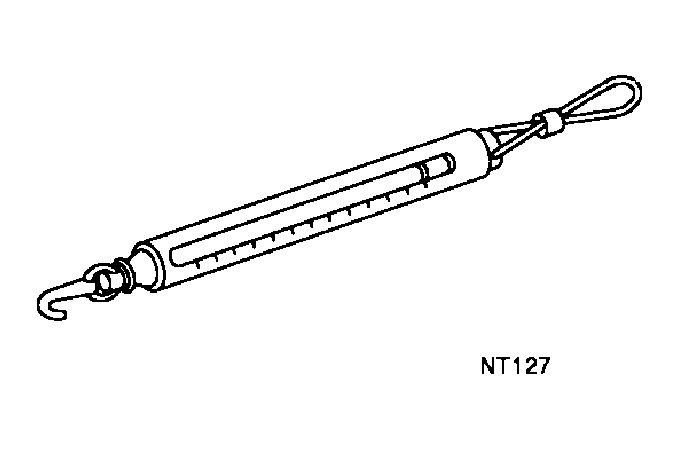

(J-8129)
Spring gauge
G04121375Courtesy of NISSAN MOTOR CO., U.S.A.
 Measuring turning torque
