Shift Control Components

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install adapter setting plate to adapter plate, and then secure adapter setting plate in a vise.

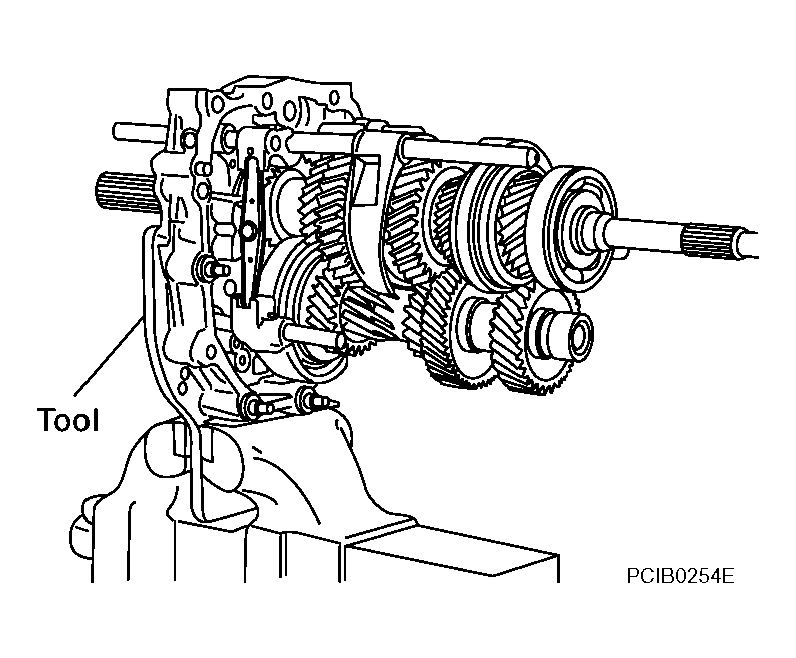

    Fig 1: Securing Adapter Setting Plate In Vise
    G04120476Courtesy of NISSAN MOTOR CO., U.S.A.

    Tool number : ST22490000 ( - )

  2. Remove baffle plate mounting bolts and baffle plate from adapter plate.

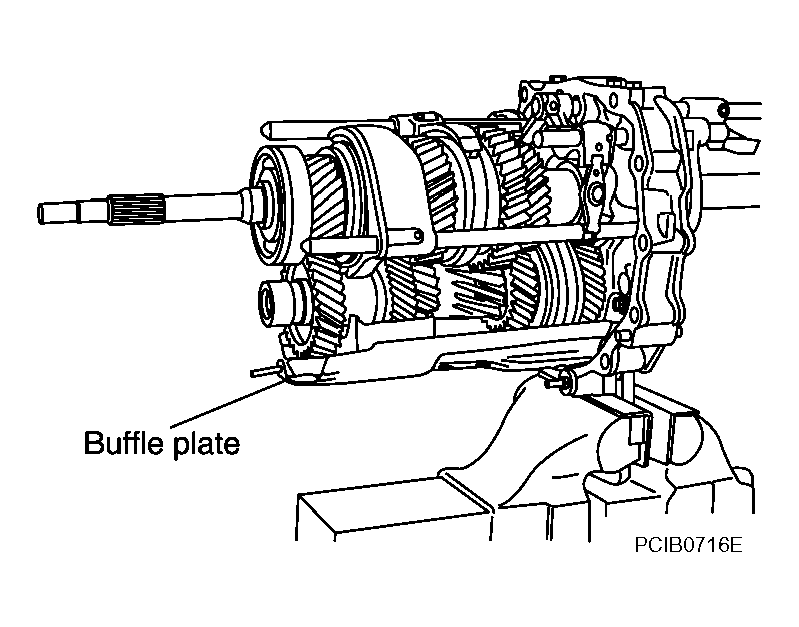

    Fig 2: Identifying Baffle Plate Mounting Bolts And Baffle Plate From Adapter Plate
    G04120477Courtesy of NISSAN MOTOR CO., U.S.A.
    NOTE: Mounting bolts are installed both from the front side and the reverse side of adapter plate.
  3. Remove magnet from adapter plate.
  4. Drive out retaining pin using a pin punch [6 mm (0.24 in) dia.], and remove striking lever and striking rod.

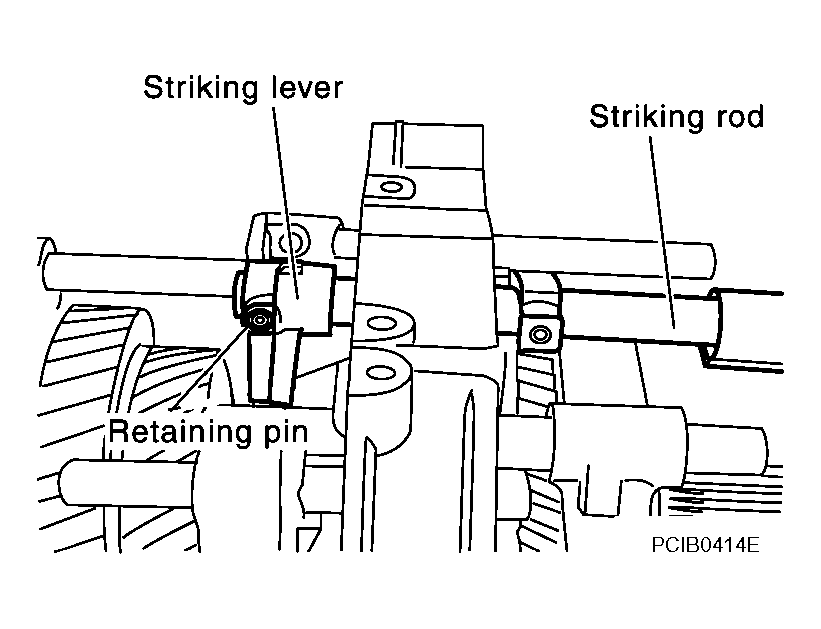

    Fig 3: Driving Out Retaining Pin Using Pin Punch
    G04120478Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Remove check ball plugs, check ball springs and check balls from adapter plate.

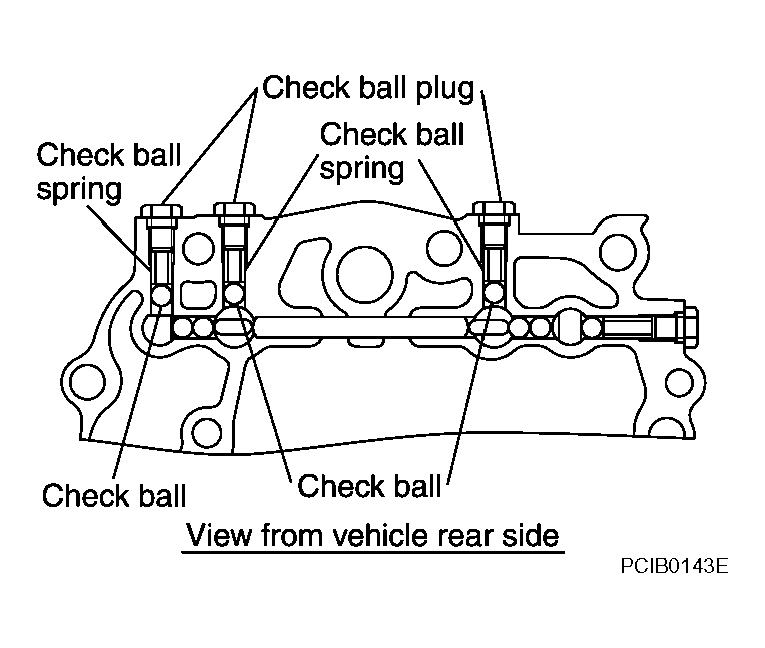

    Fig 4: Removing Check Ball Plugs
    G04120479Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Remove 3rd-4th control lever mounting bolts and 3rd-4th control lever from adapter plate.

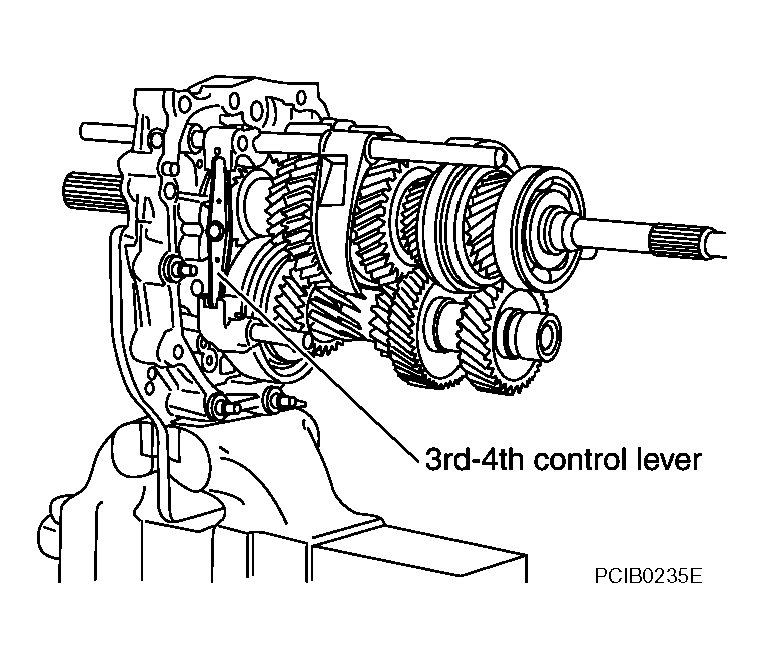

    Fig 5: Identifying 3rd-4th Control Lever Mounting Bolts
    G04120480Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Remove shifter cap from 3rd-4th control lever.
  8. Remove check ball plug, check ball spring and check ball from adapter plate.

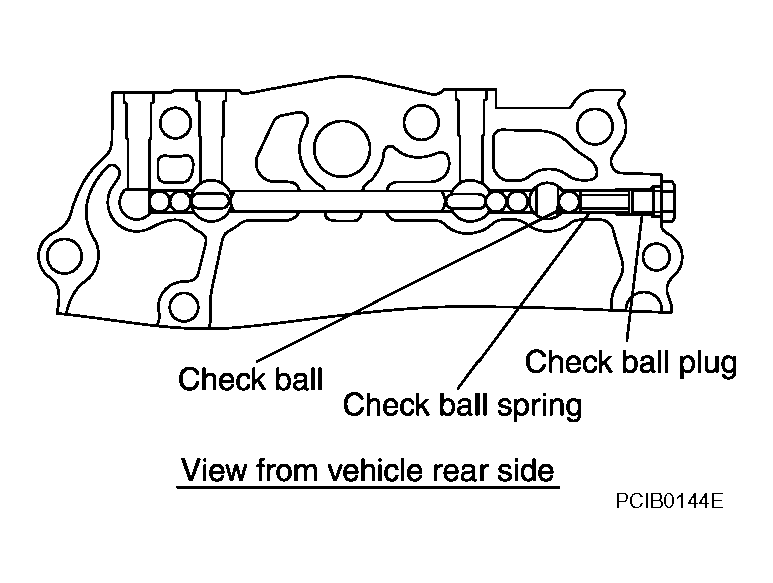

    Fig 6: Identifying Check Ball Plug
    G04120481Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Drive out retaining pin using a pin punch [6mm (0.24 in) dia.], and remove 3rd-4th fork rod bracket and 3rd-4th fork rod.

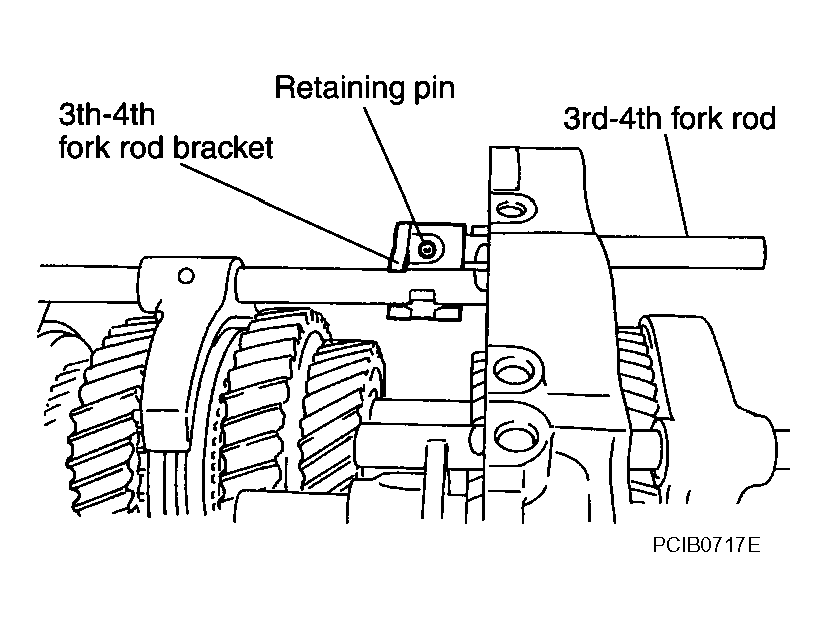

    Fig 7: Driving Out Retaining Pin Using Pin Punch
    G04120482Courtesy of NISSAN MOTOR CO., U.S.A.
  10. Drive out retaining pin using a pin punch [6 mm (0.24 in) dia.], and remove 3rd-4th fork rod (reversal side) and 3rd-4th shift fork.

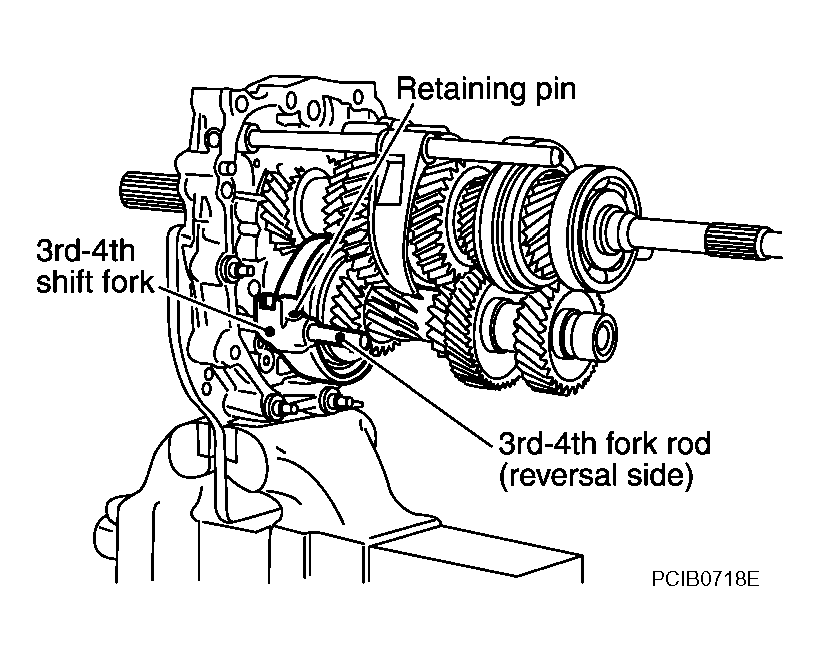

    Fig 8: Driving Out Retaining Pin Using Pin Punch
    G04120483Courtesy of NISSAN MOTOR CO., U.S.A.
  11. Remove check balls and interlock pin from adapter plate.

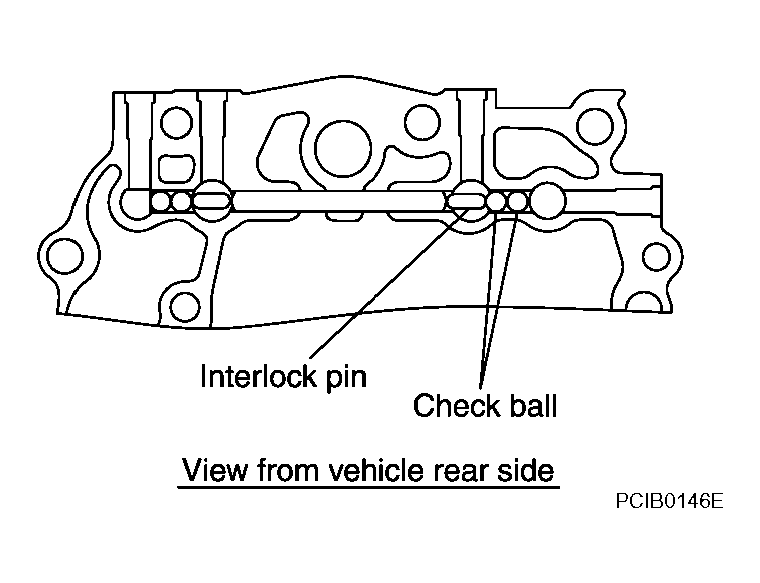

    Fig 9: Identifying Check Balls And Interlock Pin From Adapter Plate
    G04120484Courtesy of NISSAN MOTOR CO., U.S.A.
  12. Drive out retaining pin using a pin punch [6 mm (0.24 in) dia.], and remove 1st-2nd fork rod and 1st-2nd shift fork.

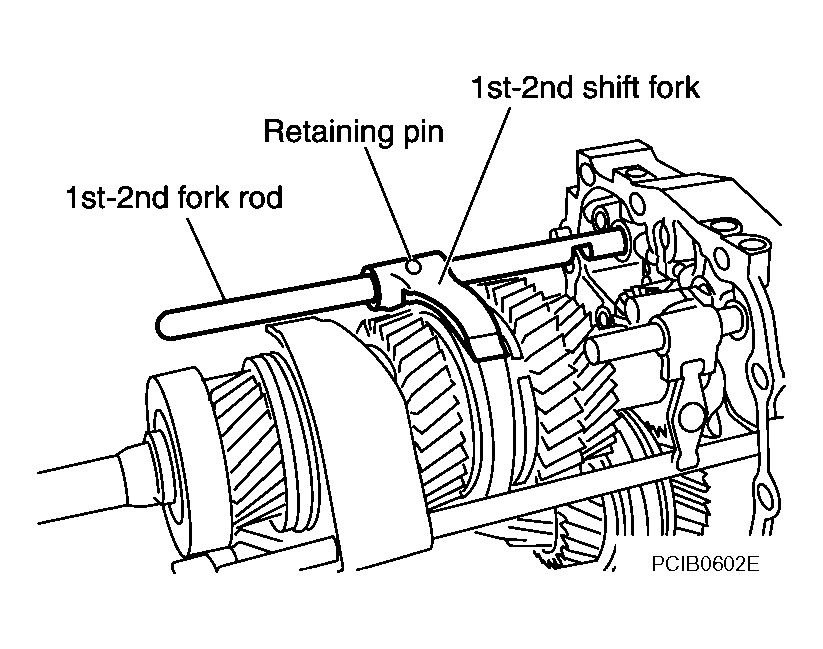

    Fig 10: Driving Out Retaining Pin Using Pin Punch
    G04120485Courtesy of NISSAN MOTOR CO., U.S.A.
  13. Remove interlock plunger and interlock pin from adapter plate.

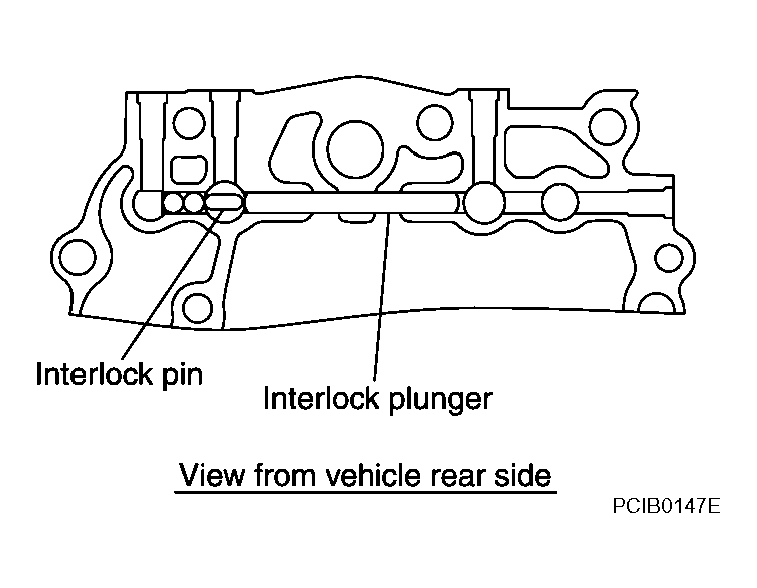

    Fig 11: Identifying Interlock Plunger And Interlock Pin From Adapter Plate
    G04120486Courtesy of NISSAN MOTOR CO., U.S.A.
  14. Drive out retaining pin using a pin punch [6 mm (0.24 in) dia.], and remove reverse fork rod and reverse shift fork.

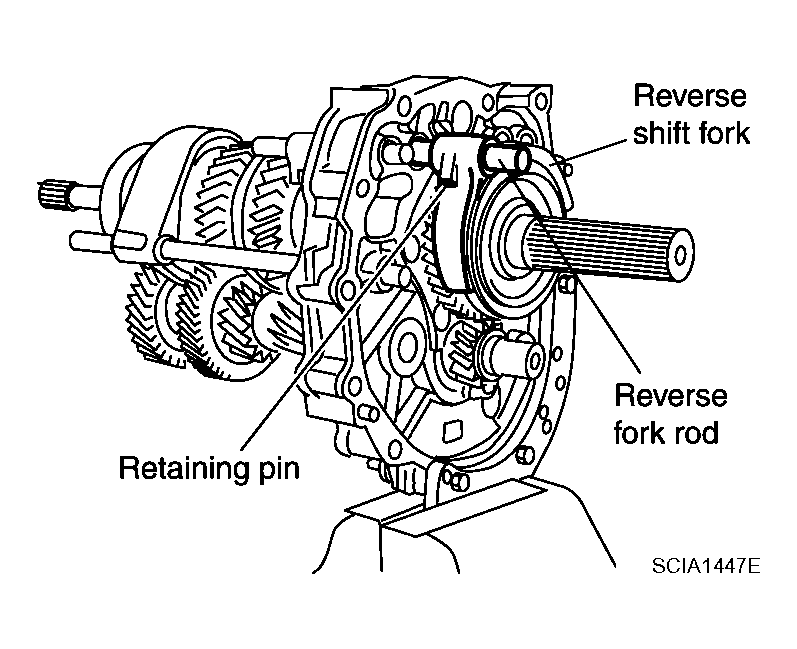

    Fig 12: Driving Out Retaining Pin Using Pin Punch
    G04120487Courtesy of NISSAN MOTOR CO., U.S.A.
  15. Remove check balls from adapter plate.

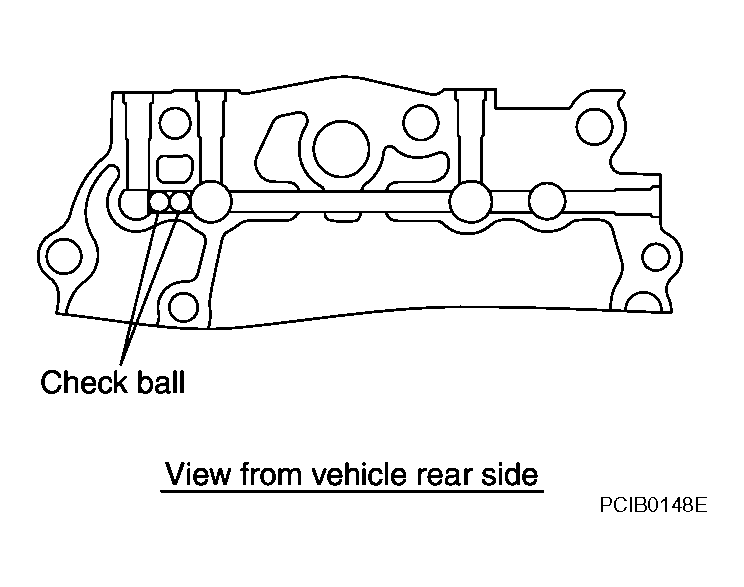

    Fig 13: Identifying Check Balls From Adapter Plate
    G04120488Courtesy of NISSAN MOTOR CO., U.S.A.
  16. Remove 5th-6th control lever mounting bolts, and 5th-6th control lever from adapter plate.

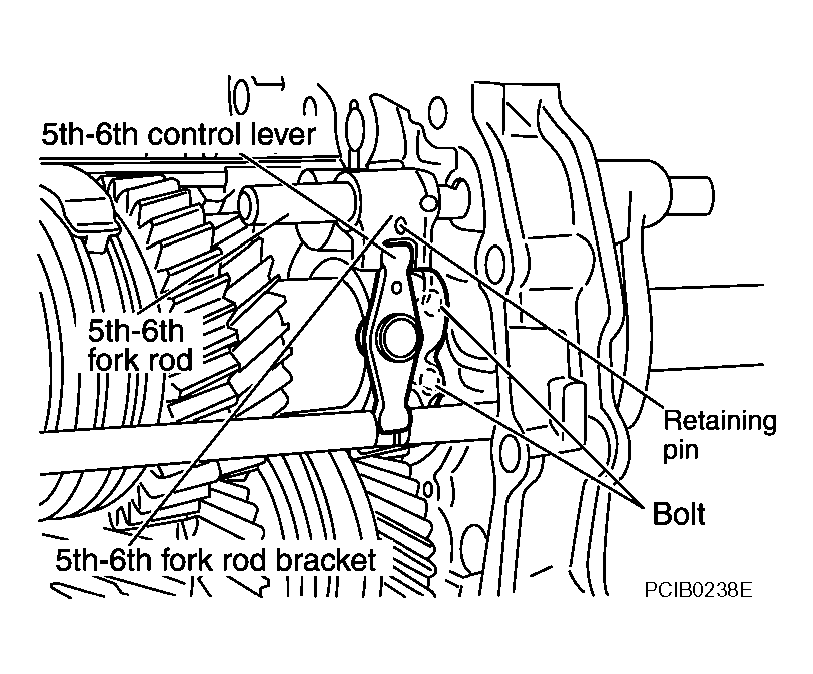

    Fig 14: Identifying 5th-6th Control Lever Mounting Bolts
    G04120489Courtesy of NISSAN MOTOR CO., U.S.A.
  17. Drive out retaining pin using a pin punch [6 mm (0.24 in) dia.], and remove 5th-6th fork rod and 5th-6th fork rod bracket.

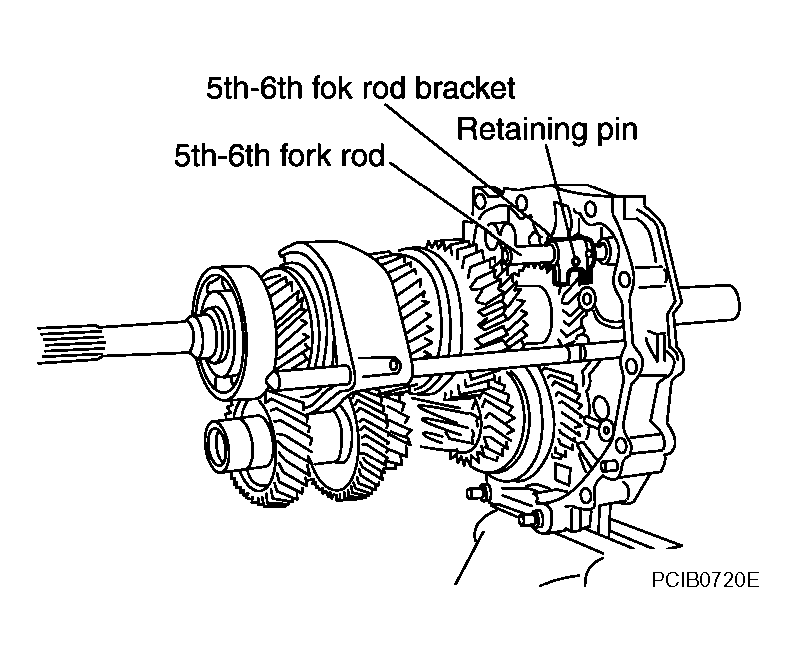

    Fig 15: Driving Out Retaining Pin Using Pin Punch
    G04120490Courtesy of NISSAN MOTOR CO., U.S.A.
  18. Drive out retaining pin using a pin punch [6 mm (0.24 in) dia.], and remove 5th-6th fork rod (reversal side) and 5th-6th shift fork.

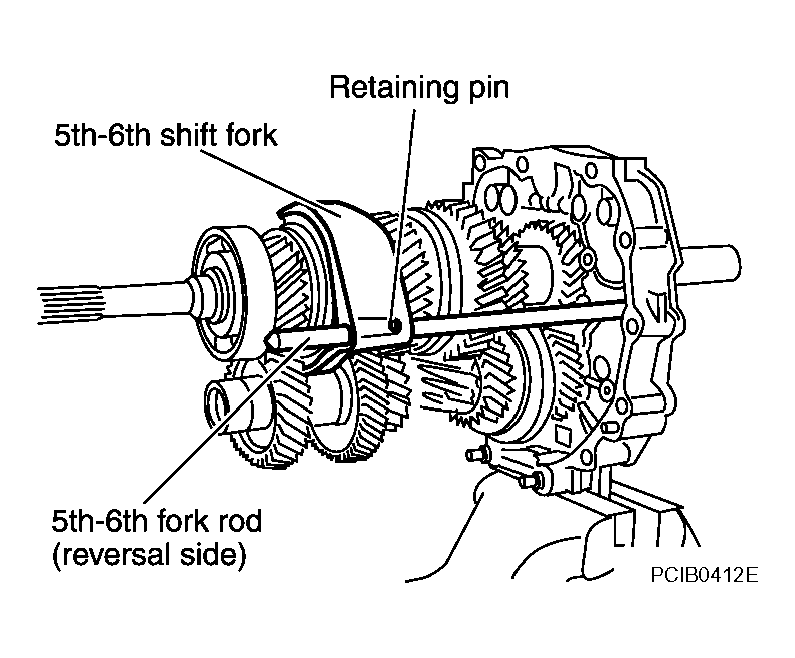

    Fig 16: Driving Out Retaining Pin Using Pin Punch
    G04120491Courtesy of NISSAN MOTOR CO., U.S.A.
