Shift Control Components

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install 5th-6th shift fork to the 5th-6th coupling sleeve.
  2. Install 5th-6th fork rod (reversal side) to the 5th-6th shift fork.
  3. Using a pin punch [6 mm (0.24 in) dia.] to tap the retaining pin into the 5th-6th shift fork.

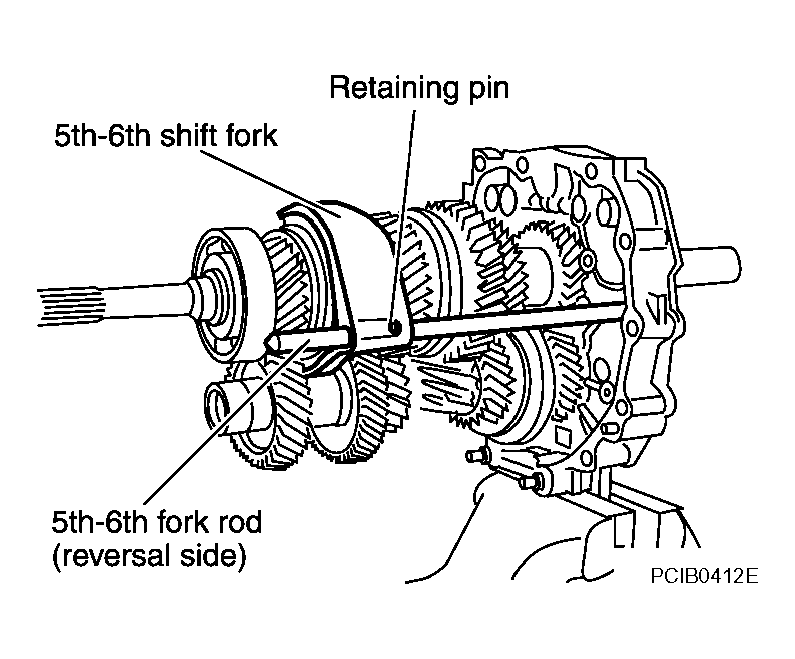

    Fig 1: Taping Retaining Pin Into 5th-6th Shift Fork Using Pin Punch
    G04120564Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION: Do not reuse retaining pin.
  4. Install 5th-6th fork rod to the adapter plate.
  5. Install 5th-6th fork rod bracket to the 5th-6th fork rod.
  6. Using a pin punch [6 mm (0.24 in) dia.] to tap the retaining pin into the 5th-6th fork rod bracket.

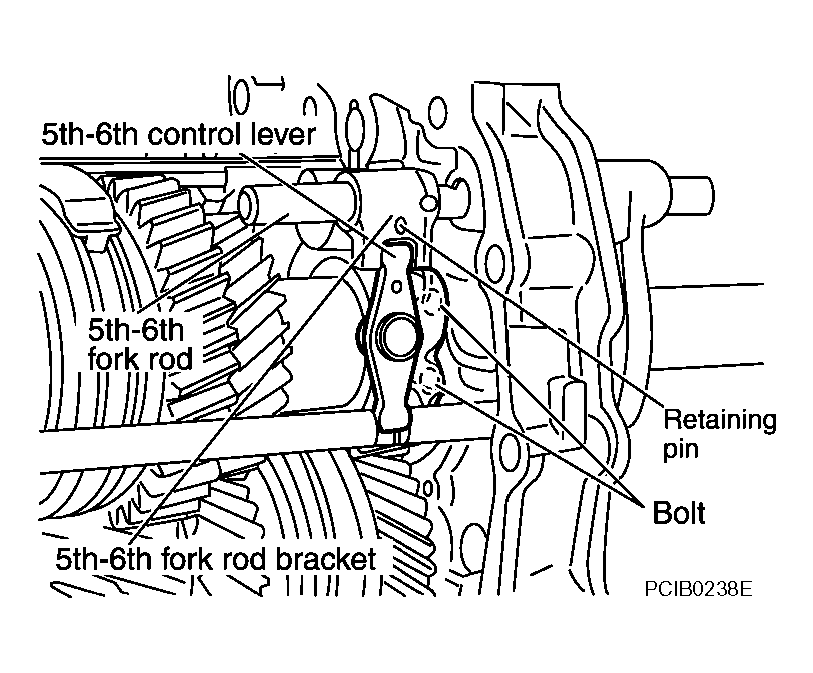

    Fig 2: Identifying 5th-6th Fork Rod To Adapter Plate
    G04120565Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION: Do not reuse retaining pin.
  7. Install 5th-6th control lever to the adapter plate and then tighten mounting bolts to the specified torque. Refer to "SHIFT CONTROL COMPONENTS ".

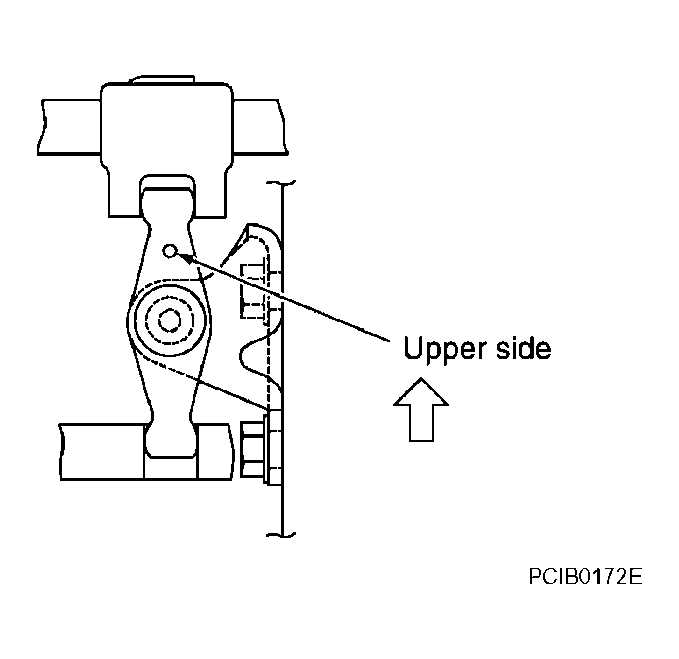

    Fig 3: Identifying 5Th-6Th Control Lever To Adapter Plate
    G04120566Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION: Set the projection upward.
  8. Install check balls to the adapter plate.

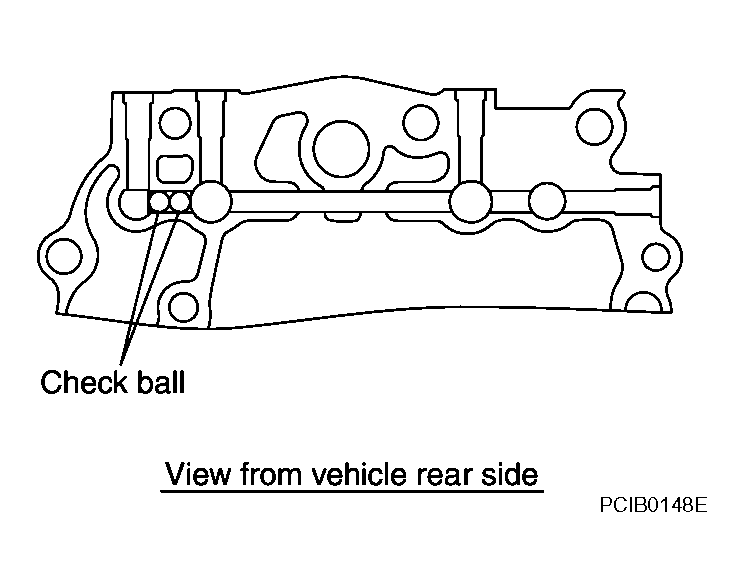

    Fig 4: Identifying Check Balls To Adapter Plate
    G04120567Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION: Apply lithium-based grease check ball.
  9. Install reverse shift fork to the reverse coupling sleeve.
  10. Install reverse fork rod to the reverse shift fork.
  11. Using a pin punch [6 mm (0.24 in) dia.] to tap the retaining pin into the reverse shift fork.

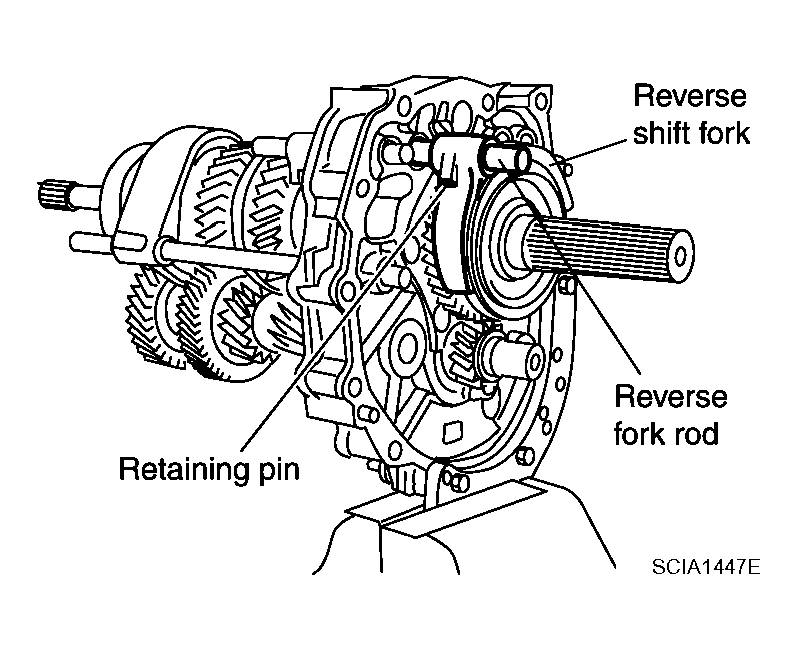

    Fig 5: Taping Retaining Pin Into Reverse Shift Fork Using Pin Punch
    G04120568Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION: Do not reuse retaining pin.
  12. Install interlock pin and interlock plunger to the adapter plate.

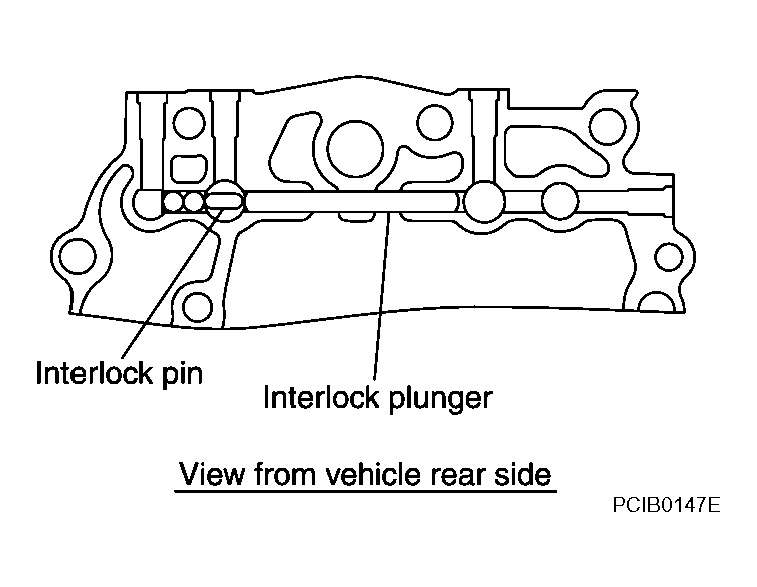

    Fig 6: Identifying Interlock Pin And Interlock Plunger To Adapter Plate
    G04120569Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION: Apply lithium-based grease check ball.
  13. Install 1st-2nd shift fork to the 1st-2nd coupling sleeve.
  14. Install 1st-2nd fork rod to the 1st-2nd shift fork.
  15. Using a pin punch [6 mm (0.24 in) dia.] to tap the retaining pin into the 1st-2nd shift fork.

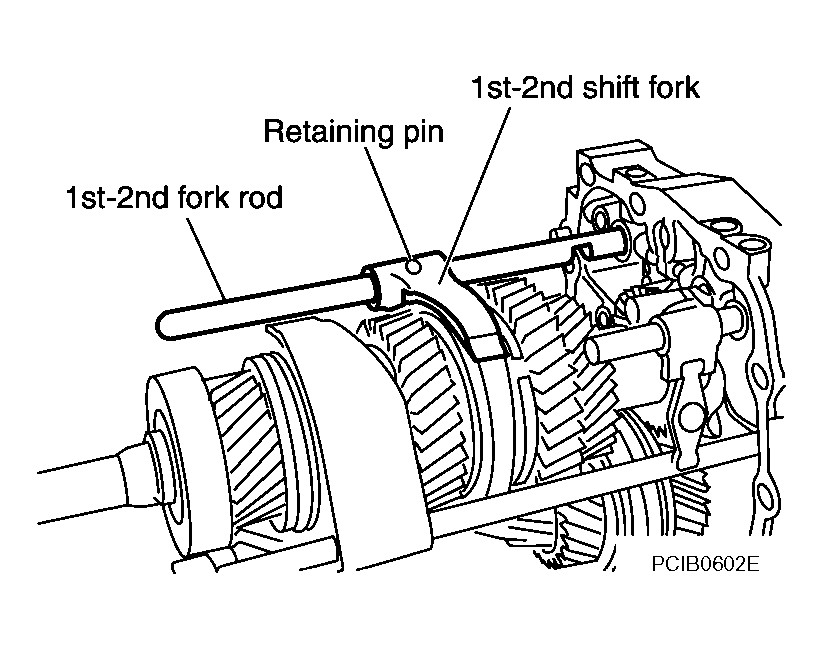

    Fig 7: Taping Retaining Pin Into 1st-2nd Shift Fork Using Pin Punch
    G04120570Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION: Do not reuse retaining pin.
  16. Install 3rd-4th shift fork to the 3rd-4th coupling sleeve.
  17. Install 3rd-4th fork rod (reversal side) to 3rd-4th shift fork.
  18. Using a pin punch [6 mm (0.24 in) dia.] to tap the retaining pin into the 3rd-4th shift fork (reversal side).

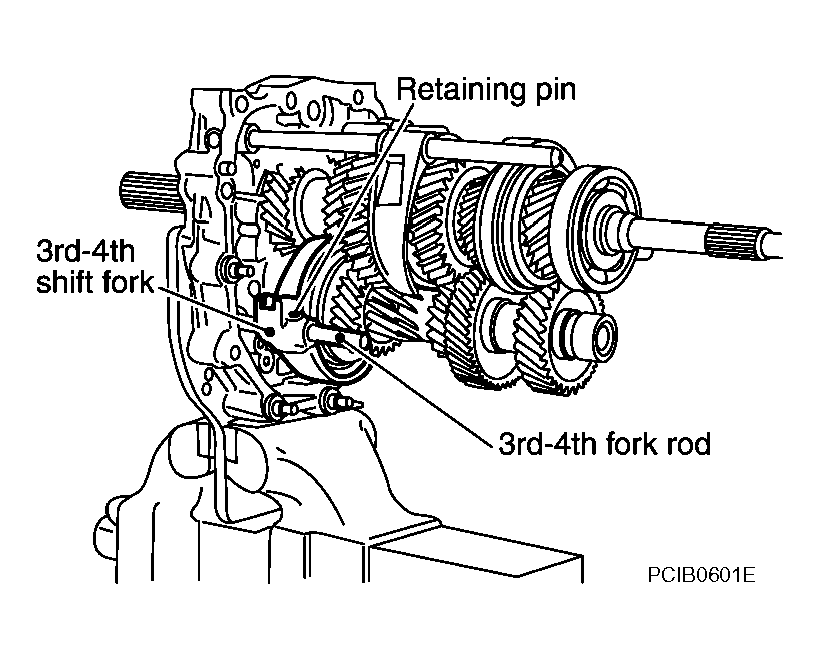

    Fig 8: Taping Retaining Pin Into 3rd-4th Shift Fork Using Pin Punch
    G04120571Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION: Do not reuse retaining pin.
  19. Install interlock pin and check balls to the adapter plate.

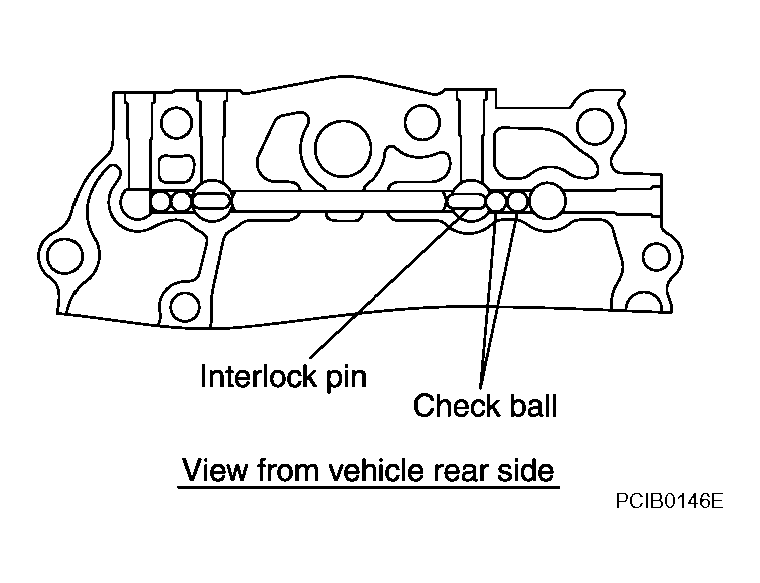

    Fig 9: Identifying Interlock Pin And Check Balls To Adapter Plate
    G04120572Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION: Apply lithium-based grease check ball.
  20. Install 3rd-4th fork rod to the adapter plate.
  21. Install 3rd-4th fork rod bracket to the 3rd-4th fork rod.
  22. Using a pin punch [6 mm (0.24 in) dia.] to tap the retaining pin into the 3rd-4th fork rod bracket.

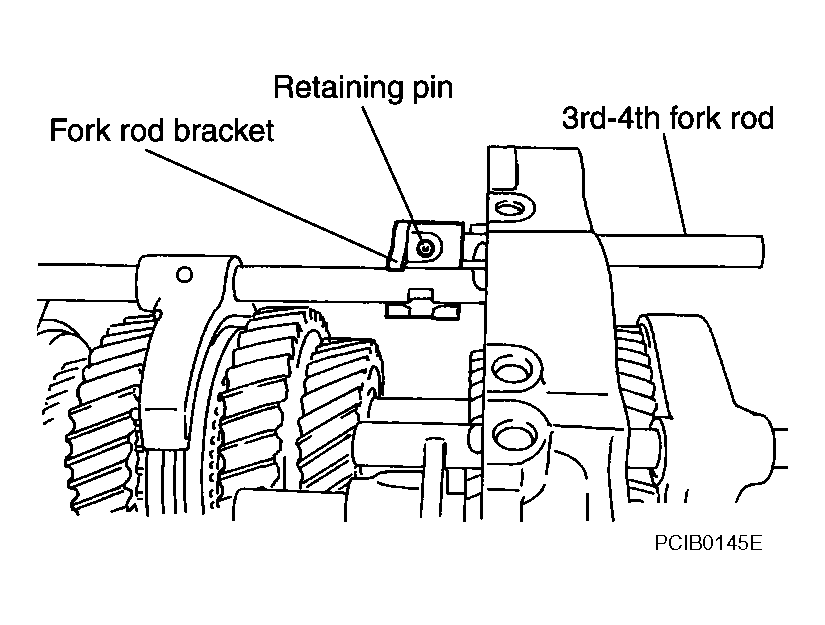

    Fig 10: Identifying 3rd-4th Fork Rod To Adapter Plate
    G04120573Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION: Do not reuse retaining pin.
  23. Install check ball, check ball spring into the adapter plate, apply liquid gasket to the check ball plug threads, and tighten check ball plug to the specified torque. Refer to "SHIFT CONTROL COMPONENTS ".

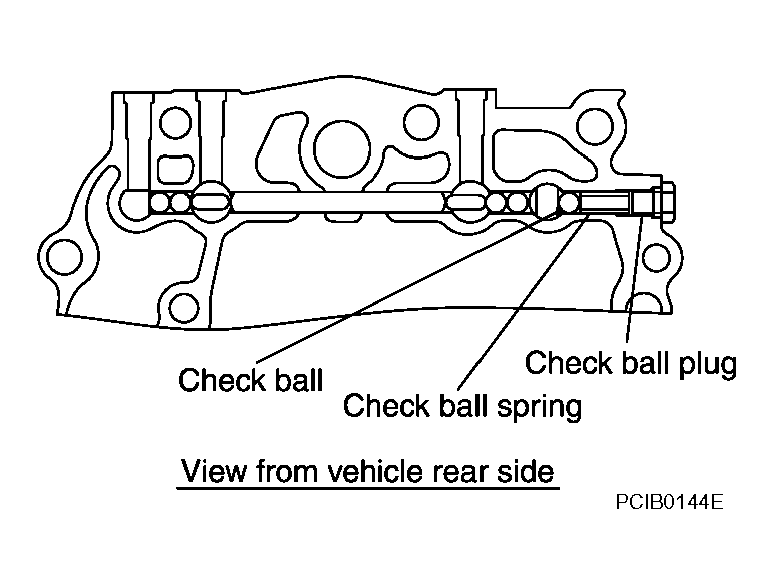

    Fig 11: Identifying Check Ball Spring Into Adapter Plate
    G04120574Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION: Apply lithium-based grease check ball.
  24. Install 3rd-4th control lever to the adapter plate, and then tighten mounting bolts to the specified torque. Refer to "SHIFT CONTROL COMPONENTS ".

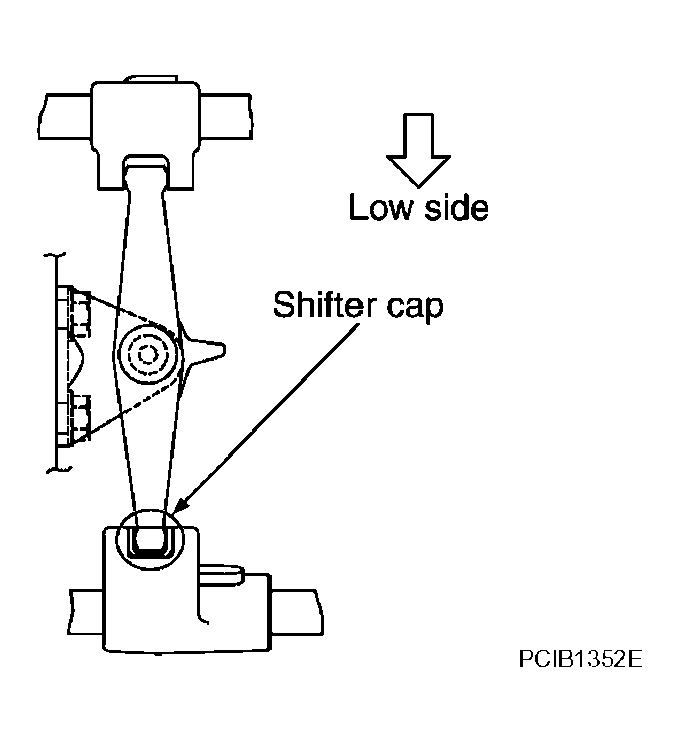

    Fig 12: Identifying 3rd-4th Control Lever To Adapter Plate
    G04120575Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION:
    • Make sure the top and bottom are oriented correctly.
  25. Install check balls, check ball springs into the adapter plate, apply liquid gasket to the check ball plugs threads, and tighten check ball plugs to the specified torque. Refer to "SHIFT CONTROL COMPONENTS ".

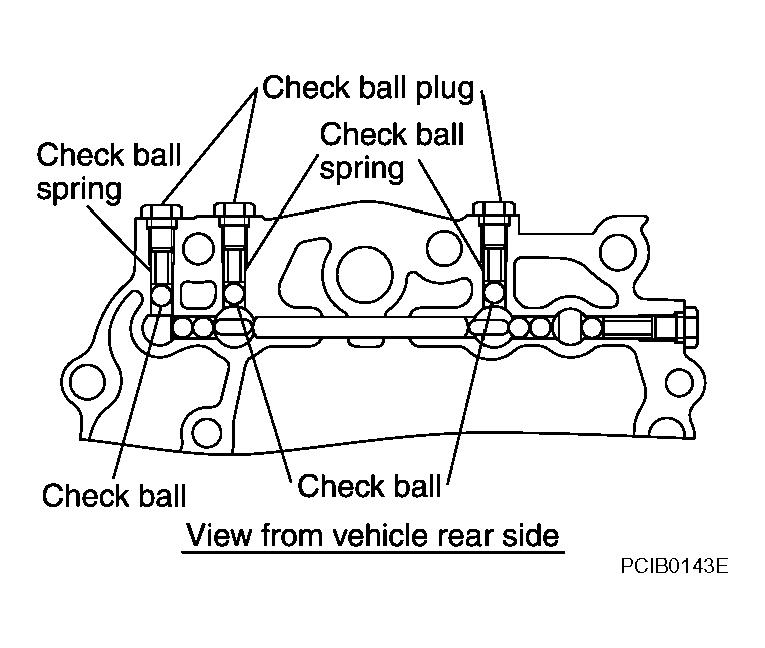

    Fig 13: Identifying Check Ball Springs Into Adapter Plate
    G04120576Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION: Apply lithium-based grease check ball.
  26. Install striking rod to the adapter plate.
  27. Install striking lever to the striking rod.
  28. Using a pin punch [6 mm (0.24 in) dia.] to tap the retaining pin into the striking lever.

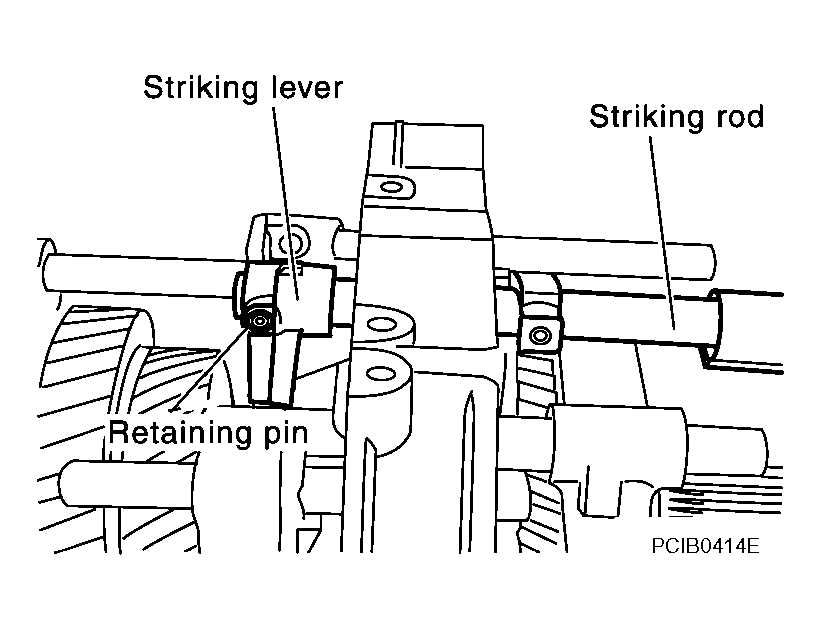

    Fig 14: Identifying Striking Rod To Adapter Plate
    G04120577Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION: Do not reuse retaining pin.
  29. Install magnet to the adapter plate.
  30. Install baffle plate to the adapter plate, and then tighten mounting bolts to the specified torque. Refer to "CASE COMPONENTS ".

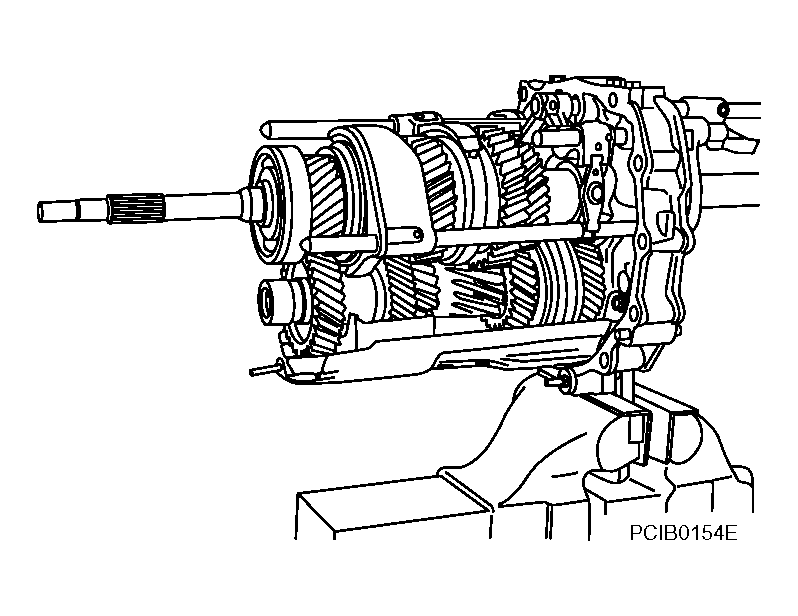

Fig 15: Identifying Magnet To Adapter Plate
G04120578Courtesy of NISSAN MOTOR CO., U.S.A.
