Removal and Installation: Installation

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Set control lever assembly and control lever spring in the control lever housing and loosely mount guide plate.
  2. After installing control lever assembly in control rod, tighten bolt to the specified torque. Refer to "REMOVAL AND INSTALLATION ".

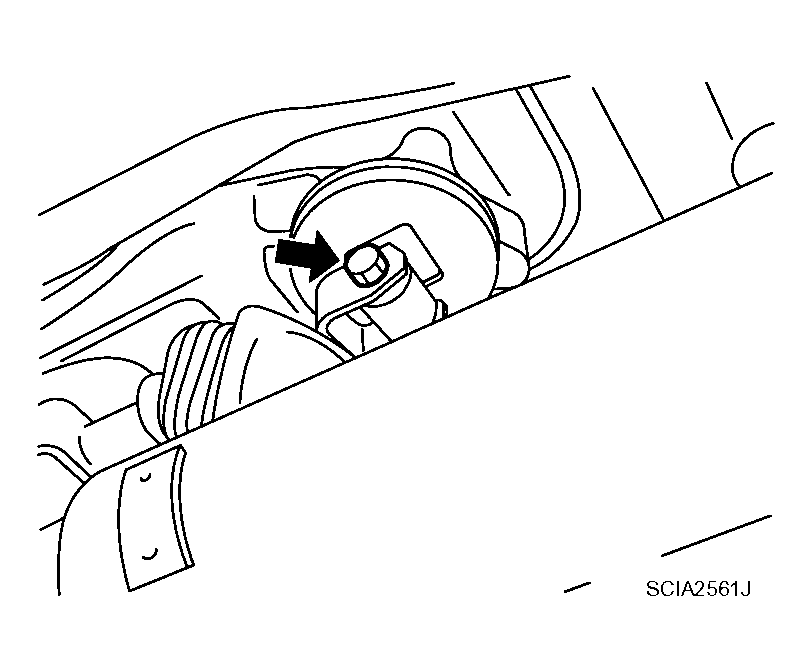

    Fig 1: Identifying Bolt
    G04120442Courtesy of NISSAN MOTOR CO., U.S.A.
  3. After shifting control lever assembly into 6th gear, push it toward reverse gear (to the right) until it comes to a stop.
  4. At the point where the control lever assembly stops, bring the guide plate closer until guide plate stopper contacts control lever assembly claw, and then loosely tighten mounting bolt A.

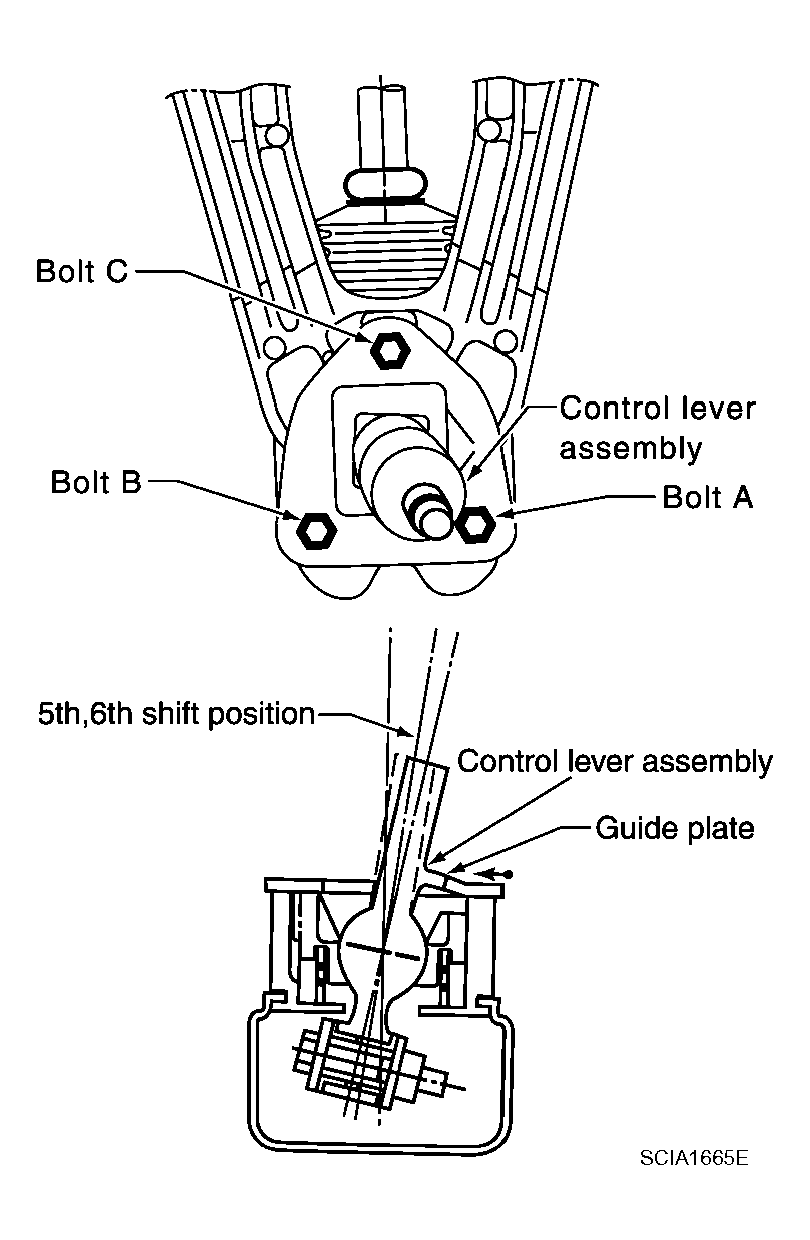

    Fig 2: Identifying Mounting Bolt
    G04120443Courtesy of NISSAN MOTOR CO., U.S.A.
  5. After shifting control lever assembly into 5th gear, push it toward reverse gear (to the right) until it comes to a stop.
  6. At the point where control lever assembly stops, bring guide plate closer until the guide plate stopper contacts control lever assembly claw, and then tighten mounting bolt C to the specified torque. Refer to "REMOVAL AND INSTALLATION ".
  7. Tighten guide plate bolts A and B to the specified torque. Refer to "REMOVAL AND INSTALLATION ".
  8. Install control lever boot.
  9. Install hole cover and tighten bolts to the specified torque. Refer to "REMOVAL AND INSTALLATION ".
  10. Install console boot to the center console. Refer to "REMOVAL AND INSTALLATION ".

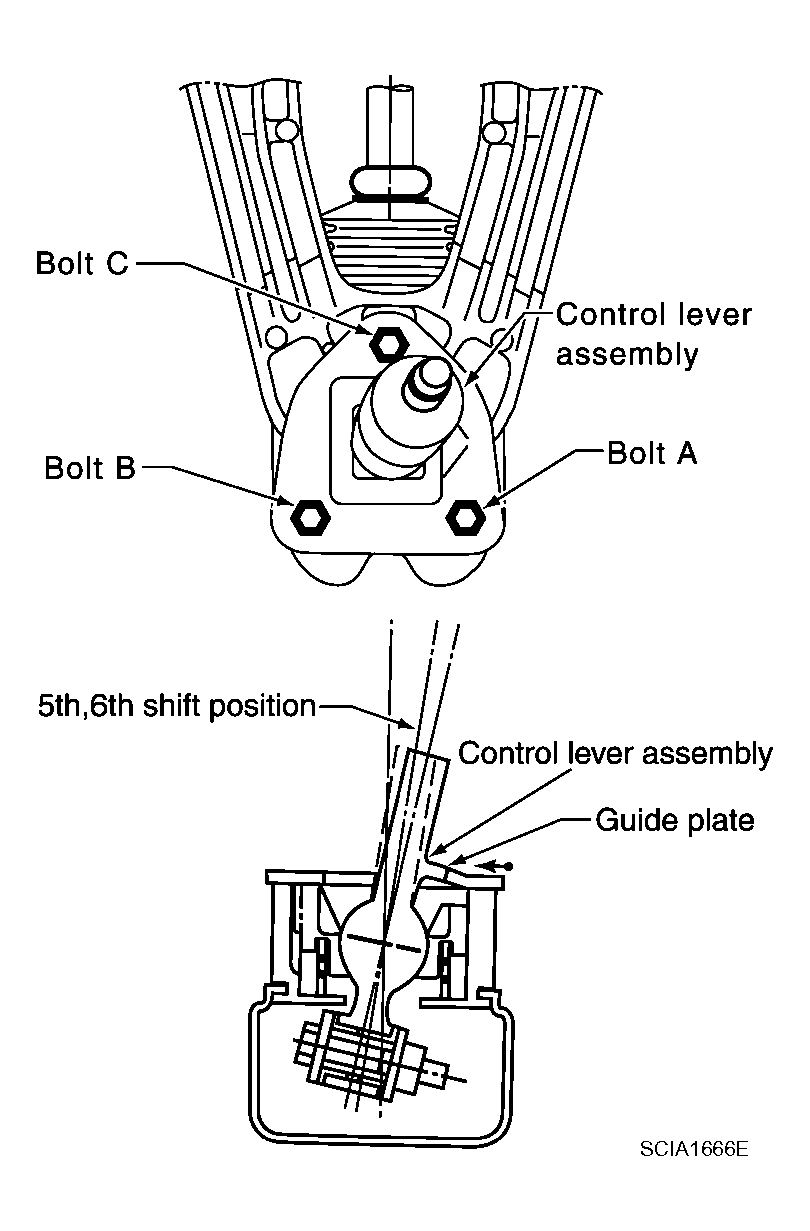

    Fig 3: Shifting Control Lever Assembly Into 5Th Gear
    G04120444Courtesy of NISSAN MOTOR CO., U.S.A.
  11. As shown in the figure, assemble seat and insulator to control lever assembly.

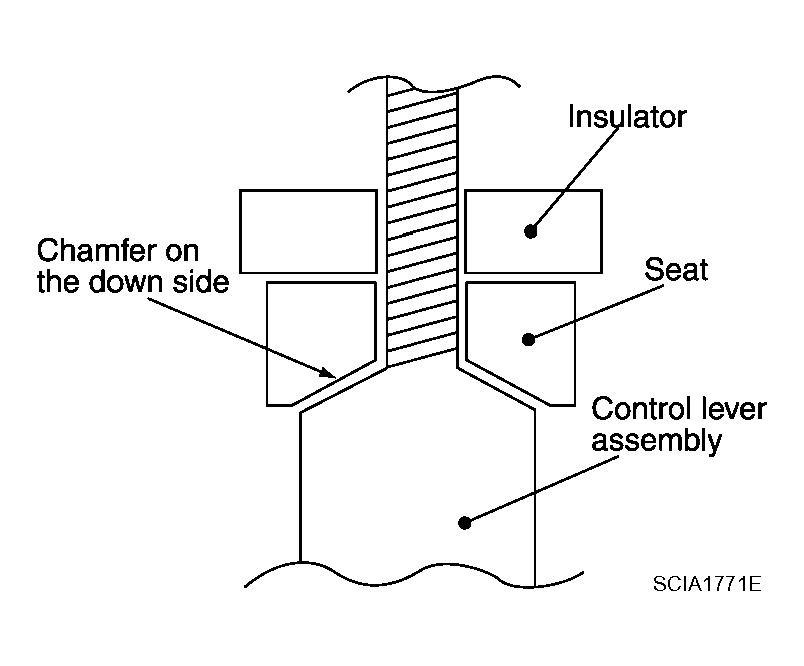

    Fig 4: Assembling Seat And Insulator To Control Lever Assembly
    G04120445Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION: Do not reuse insulator.
  12. Apply locking sealant to control lever threads, install shift knob.
    CAUTION: Remove the remaining adhesive on control lever and shift knob threads.
  13. Put the shift knob in the correct position as the following indicates.
    1. When tightening shift knob, if shift knob comes to the proper position within 1/2 turn from the position at which resistance begins to be felt, tighten it 1 more turn to set it in the proper position.

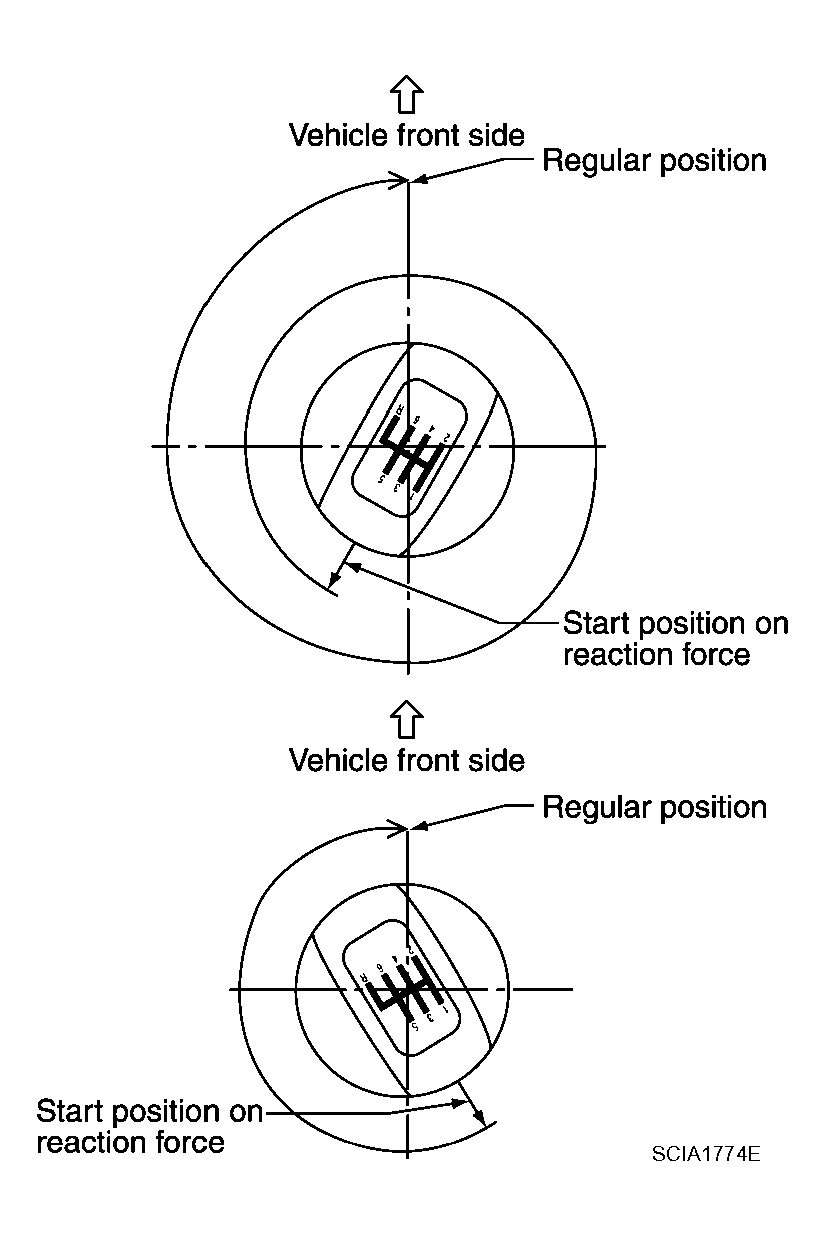

      Fig 5: Putting Shift Knob In Correct Position
      G04120446Courtesy of NISSAN MOTOR CO., U.S.A.
    2. If it takes more than 1/2 turn from the position at which resistance begins to be felt, tighten it to set it in the proper position.
      CAUTION:
      • Do not adjust the knob with loosing.
      • After adjusting to the regular position, until 30 minutes pass, do not operate the shift intensely such as screwing or turning the shift knob to opposite direction since a locking sealant because stiff.
