Special Service Tools

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

SPECIAL SERVICE TOOLS

Tool number (Kent-Moore No.) Tool name Description
ST30911000
( - )
Inserter
a: 98 mm (3.86 in) dia.
b: 40 mm (1.57 in) dia.
G04076425Courtesy of NISSAN MOTOR CO., U.S.A.
  • Main shaft bearing installation
  • 5th-6th synchronizer assembly installation
  • Reverse main gear bushing installation
  • 3rd gear bushing installation
  • 3rd-4th synchronizer assembly installation
ST30022000
( - )
Inserter
a: 110 mm (4.33 in) dia.
b: 46 mm (1.81 in) dia.
G04076425Courtesy of NISSAN MOTOR CO., U.S.A.
  • 3rd main gear installation
  • 4th main gear installation

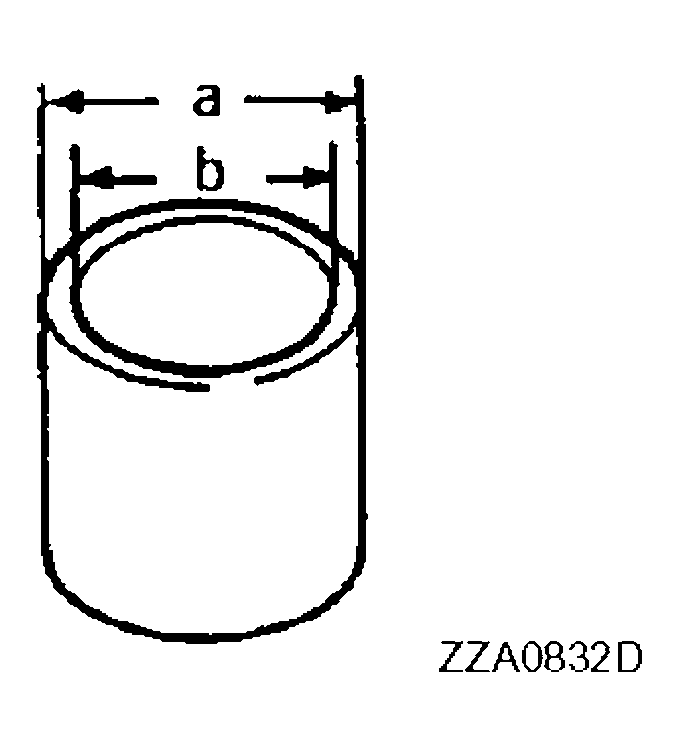

ST27861000
( - )
Support ring
a: 62 mm (2.44 in) dia.
b: 52 mm (2.05 in) dia.
G04120408Courtesy of NISSAN MOTOR CO., U.S.A.
  • 1st-2nd synchronizer assembly installation
  • 1st gear bushing installation

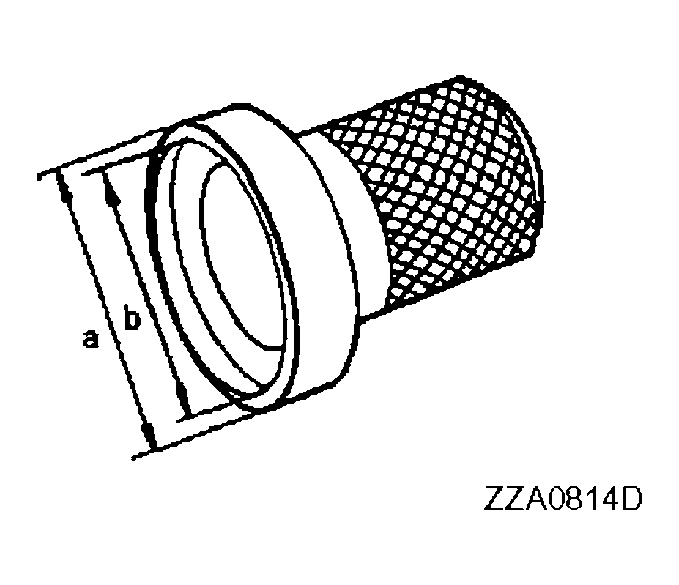

ST33400001
(J-26082)
Drift
a: 60 mm (2.36 in) dia.
b: 47 mm (1.85 in) dia.
G04120409Courtesy of NISSAN MOTOR CO., U.S.A.
 Rear oil seal installation
KV381054S0
( - )
Oil seal puller
G04076295Courtesy of NISSAN MOTOR CO., U.S.A.
 Remove rear oil seal
ST30032000
(J-26010-01)
Inserter
a: 80 mm (3.15 in) dia.
b: 31 mm (1.22 in) dia.
G04076425Courtesy of NISSAN MOTOR CO., U.S.A.
 Counter rear bearing inner race installation
KV32102700
( - )
Drift
a: 48 mm (1.89 in) dia.
b: 41 mm (1.61 in) dia.
G04120412Courtesy of NISSAN MOTOR CO., U.S.A.
 Main drive gear bearing installation

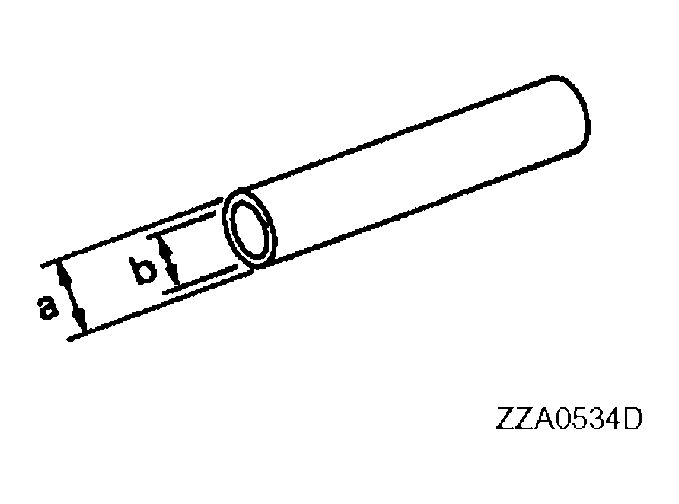

ST23860000
( - )
Drift
a: 38 mm (1.50 in) dia.
b: 33 mm (1.30 in) dia.
G04120413Courtesy of NISSAN MOTOR CO., U.S.A.
 Reverse counter gear installation
ST01530000
( - )
Drift
a: 50 mm (1.97 in) dia.
b: 41 mm (1.61 in) dia.
G04120414Courtesy of NISSAN MOTOR CO., U.S.A.
 Reverse synchronizer assembly installation

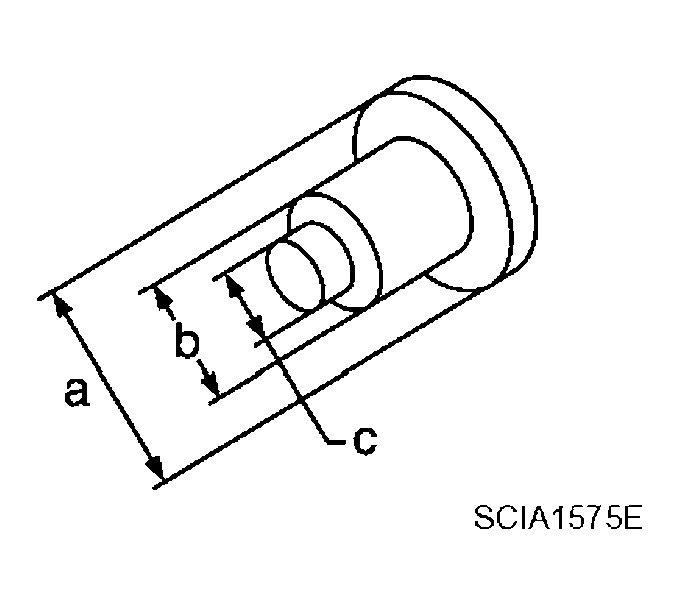

ST35291000
( - )
Drift
a: 40 mm (1.57 in) dia.
b: 29.5 mm (1.161 in) dia.
c: 22.5 mm (0.886 in) dia.
G04120415Courtesy of NISSAN MOTOR CO., U.S.A.
 Striking rod oil seal installation
KV40100630
(J-26092)
Inserter
a: 67 mm (2.64 in) dia.
b: 38 mm (1.50 in) dia.
G04076425Courtesy of NISSAN MOTOR CO., U.S.A.
 4th counter gear thrust washer installation
KV38102100
(J-25803-01)
Drift
a: 44 mm (2.36 in) dia.
b: 36 mm (1.42 in) dia.
c: 24.5 mm (0.965 in) dia.
G04076173Courtesy of NISSAN MOTOR CO., U.S.A.
 Front cover oil seal installation

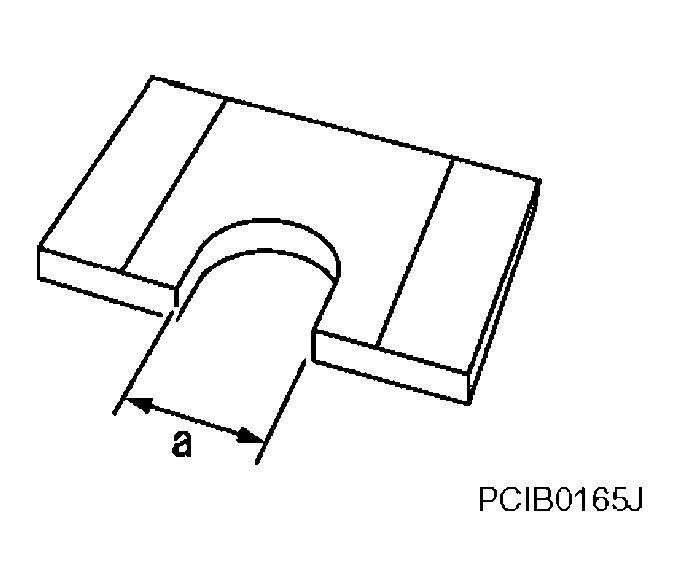

KV32103300
(J-46529)
Press plate
G04120418Courtesy of NISSAN MOTOR CO., U.S.A.
 Reverse synchronizer assembly installation

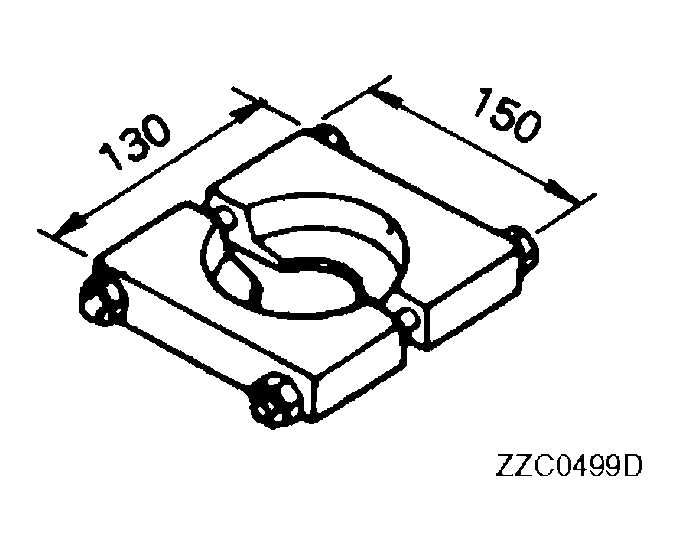

ST30031000
(J-22912-01)
Puller
G04120419Courtesy of NISSAN MOTOR CO., U.S.A.
 Inner baulk ring support

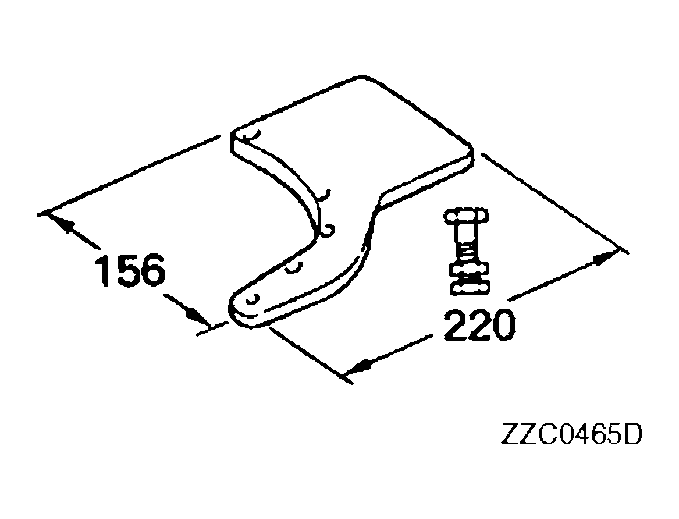

ST22490000
( - )
Adapter setting plate
G04120420Courtesy of NISSAN MOTOR CO., U.S.A.
 Hold adapter plate
