Removal and Installation (2WD Model): Installation

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

Note the following, and install in the reverse order of removal.

For a location with a positioning pin, insert it securely into hole of mating part.
For a part with a specified installation orientation, refer to component figure in "REMOVAL AND INSTALLATION (2WD MODEL) ".

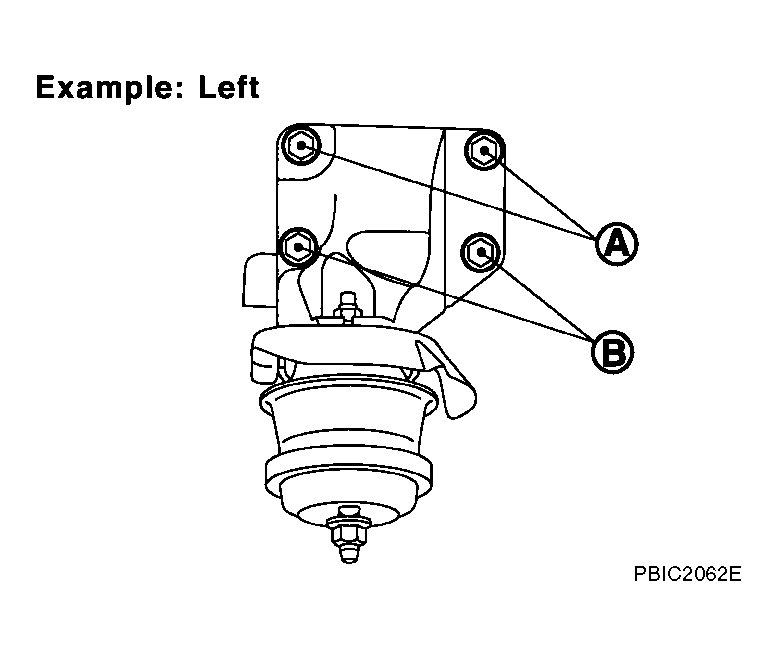

When installing engine mounting brackets (RH and LH) on cylinder block, tighten two upper bolts (shown as "A" in the figure) first. Then tighten two lower bolts (shown as "B" in the figure).

Fig 1: Identifying Engine Mounting Brackets Bolts Tightening Sequence

Courtesy of NISSAN MOTOR CO., U.S.A.

Tighten rear engine mounting member bolts in numerical order as shown in the figure.

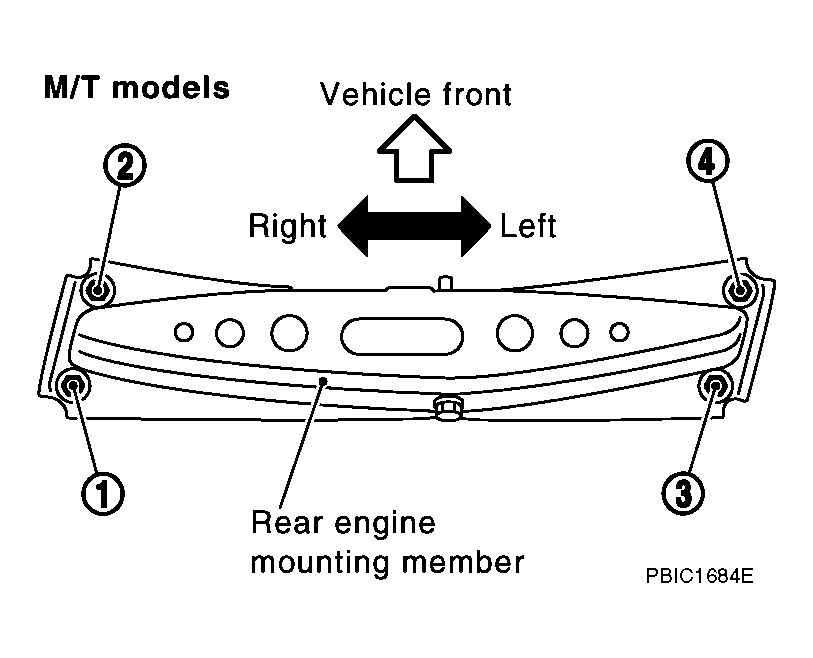

Fig 2: Identifying Rear Engine Mounting Member Bolts Tightening Sequence (M/T Models)

Courtesy of NISSAN MOTOR CO., U.S.A.

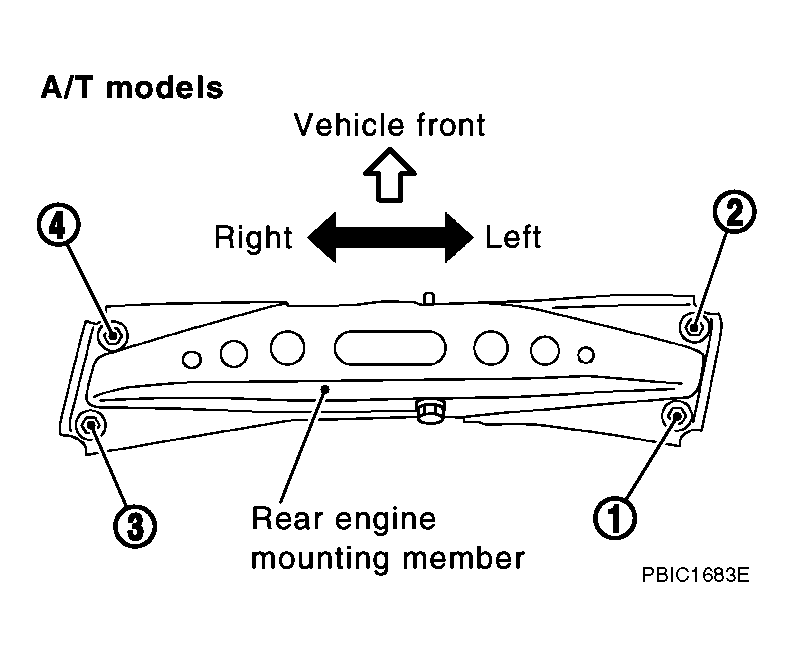

Fig 3: Identifying Rear Engine Mounting Member Bolts Tightening Sequence (A/T Models)

Courtesy of NISSAN MOTOR CO., U.S.A.
