Section 1752 (Engine Mechanical (Sedan)): Camshaft: Components

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

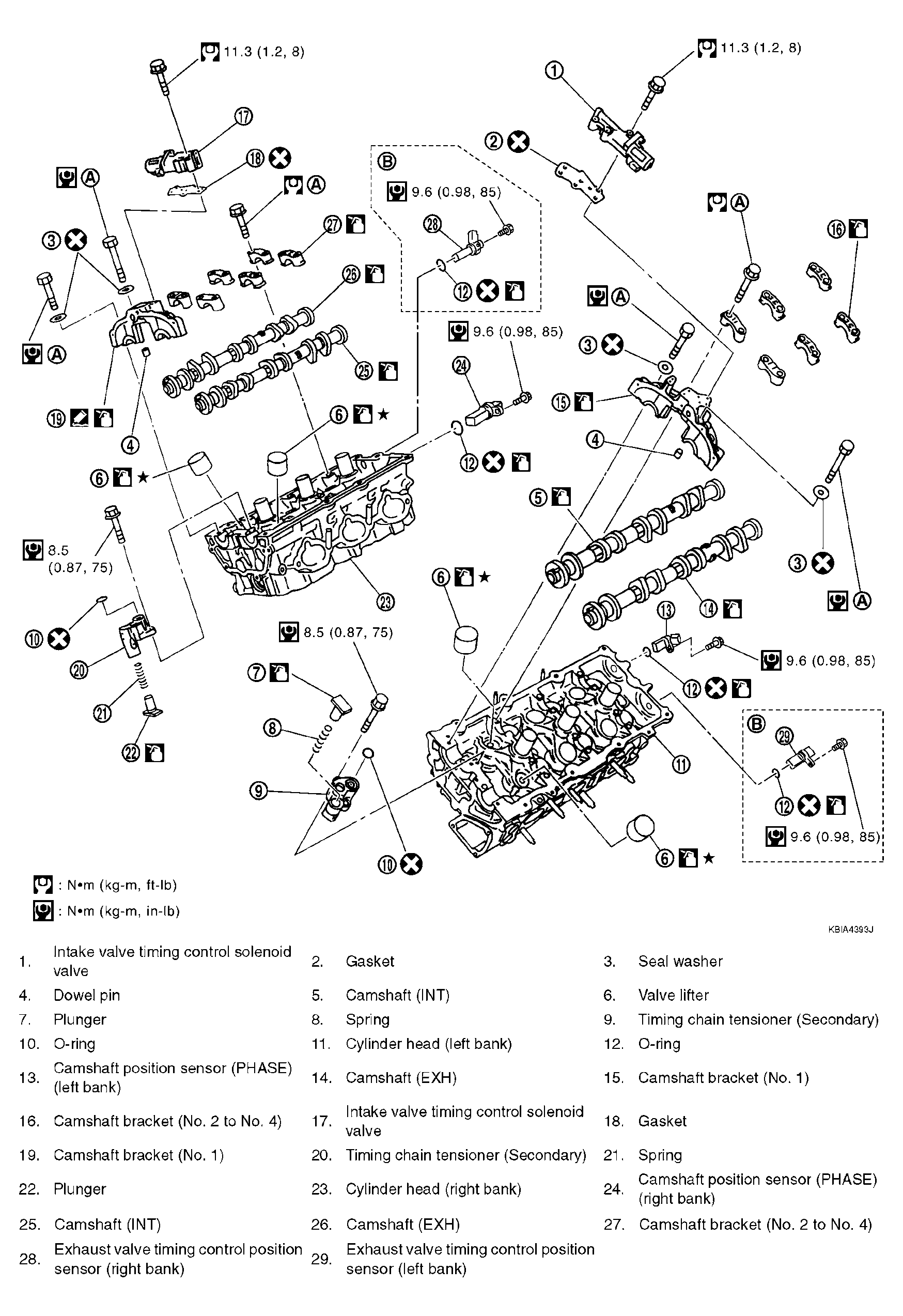

Fig 1: Exploded View Of Camshaft Components With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbol mark in the figure.
