Removal And Installation: Removal

WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove back door window garnish.
  2. Disconnect high-mounted stop lamp connector.
  3. Remove nuts and remove high-mounted stop lamp.

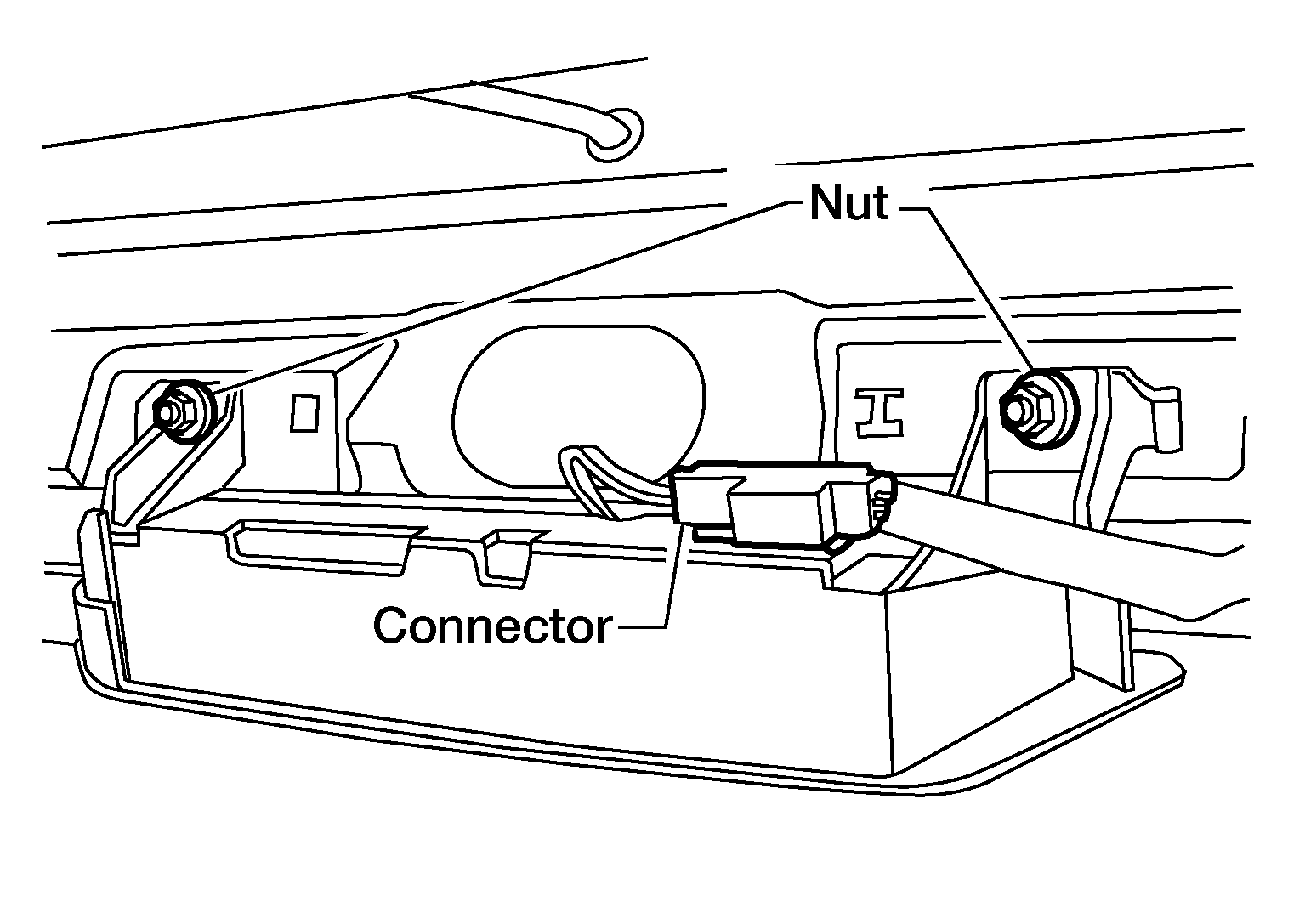

    Fig 1: Identifying High Mounted Stop Lamp Connector
    G04176970Courtesy of NISSAN MOTOR CO., U.S.A.
