Wiring Diagram - F/FOG

WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For PG references see POWER SUPPLY, GROUND AND CIRCUIT ELEMENTS

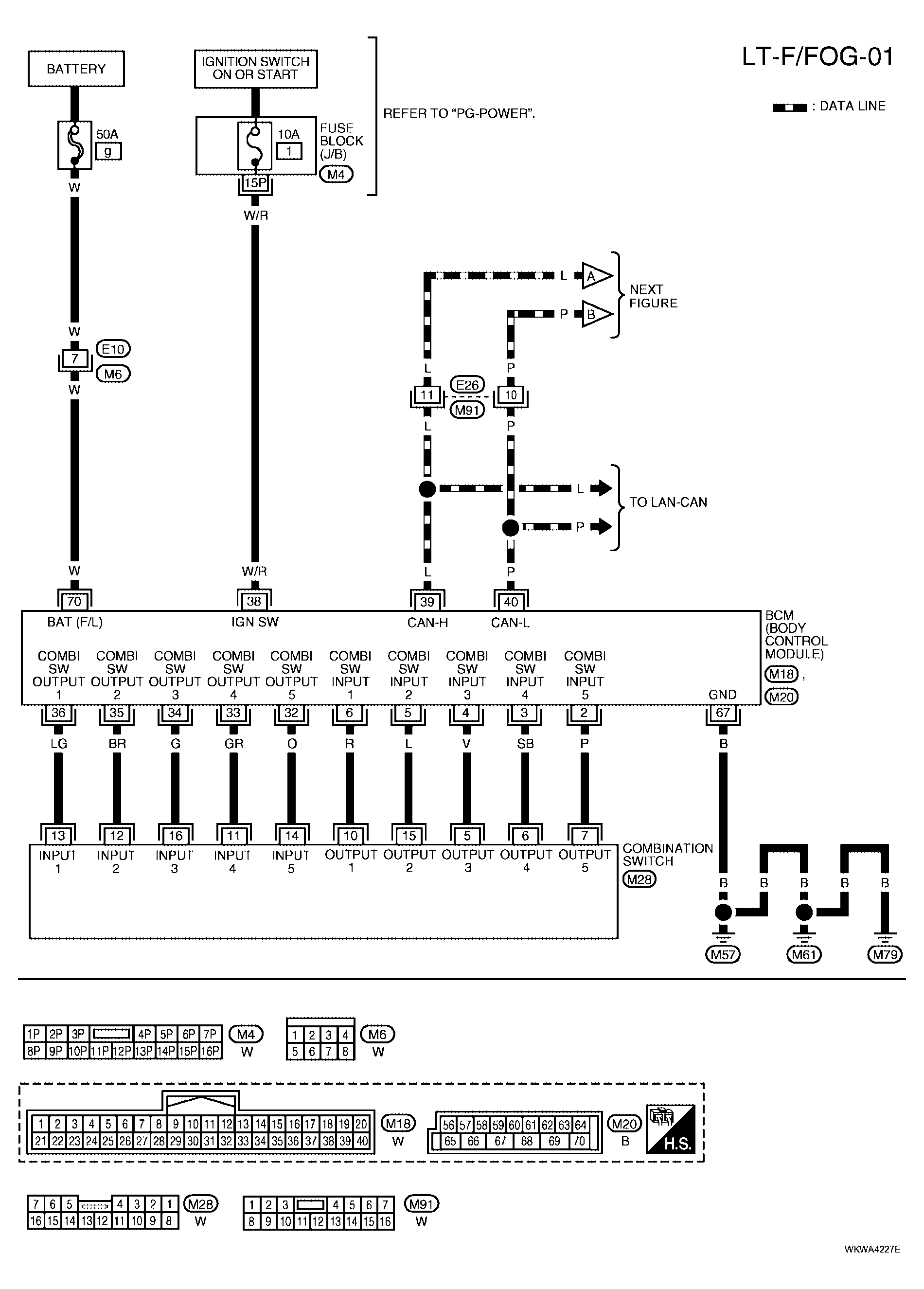

Fig 1: LT-F/FOG-01 Wiring Diagram (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

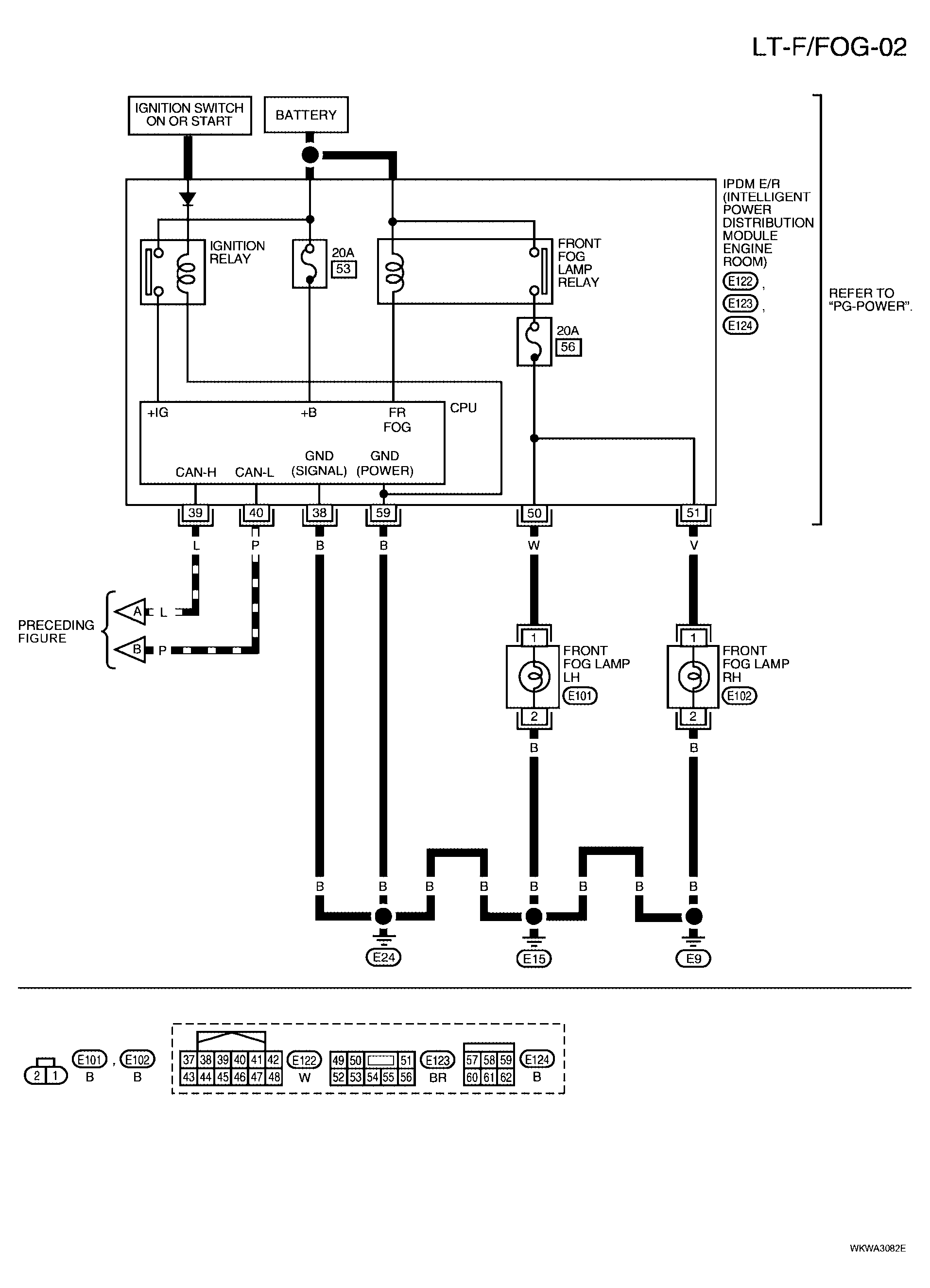

Fig 2: LT-F/FOG-02 Wiring Diagram (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
