Fuel Lid Door Lock Actuator Check

1. Turn ignition switch OFF.
2. Check voltage between BCM connector M20 terminals 59, 65 and ground.
   FUEL LID DOOR LOCK ACTUATOR SIGNAL



   Connector	Terminals		Condition	Voltage (V) (Approx.)
   	(+)	(-)
   M20	59	Ground	Driver door lock/unlock switch is turned to UNLOCK	0 --> Battery voltage
   	65		Driver door lock/unlock switch is turned to LOCK	0 --> Battery voltage

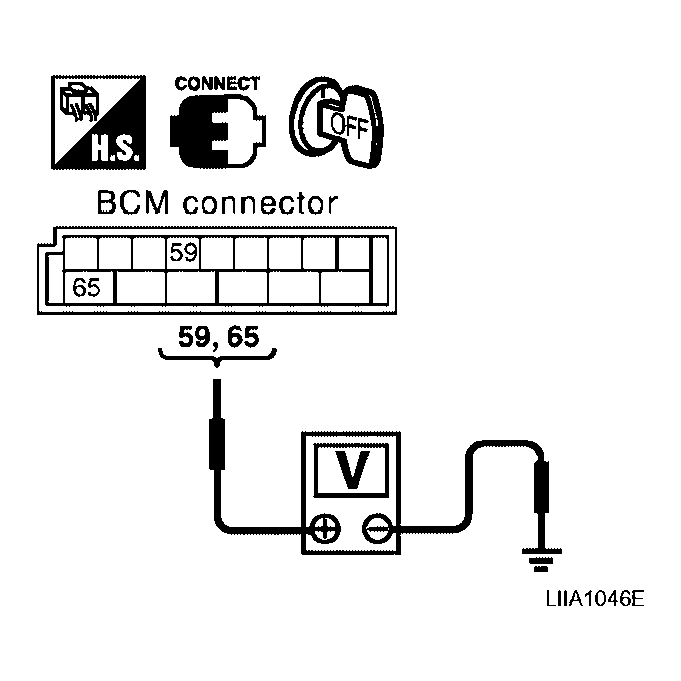

   Fig 1: Checking Fuel Lid Door Lock Actuator Signal

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: GO TO 2.

NG: Replace BCM. Refer to "REMOVAL AND INSTALLATION "

1. Disconnect BCM and fuel lid door lock actuator.
2. Check continuity between BCM connector M20 terminals 59, 65 and fuel door lock actuator connector B79 terminals 1, 2.
   BCM CONNECTOR M20 TERMINALS 59, 65 AND FUEL DOOR LOCK ACTUATOR CONNECTOR B79 TERMINALS 1, 2



   Connector	Terminals	Connector	Terminals	Continuity
   M20	59	B79	2	Yes
   	65		1	Yes

3. Check continuity between BCM connector M20 terminals 59, 65 and ground.
   BCM CONNECTOR M20 TERMINALS 59, 65 AND GROUND



   Connector	Terminals		Continuity
   M20	59	Ground	No
   	65		No

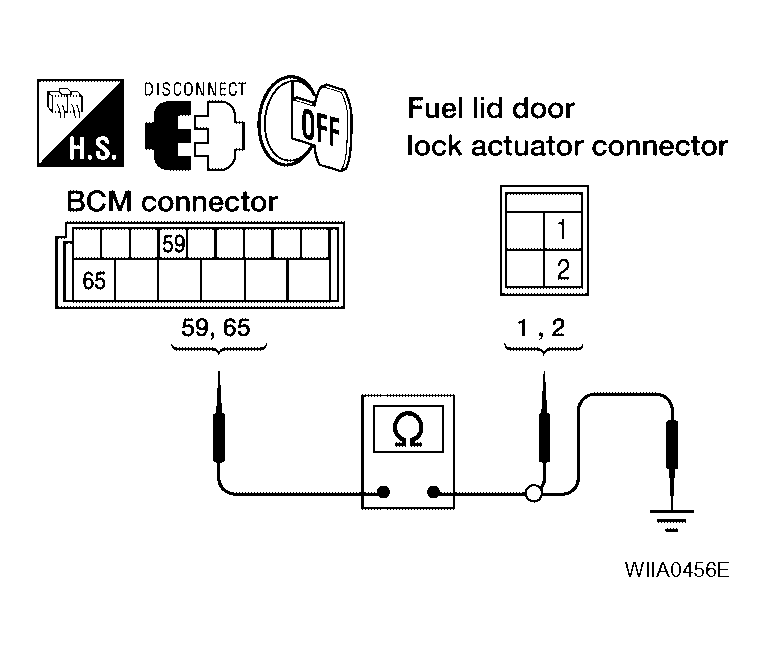

   Fig 2: Checking Fuel Lid Door Lock Actuator Harness

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: Replace fuel lid door lock actuator.

NG: Repair or replace harness.
