Turn Signal And Hazard Warning Lamps: Schematic

WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

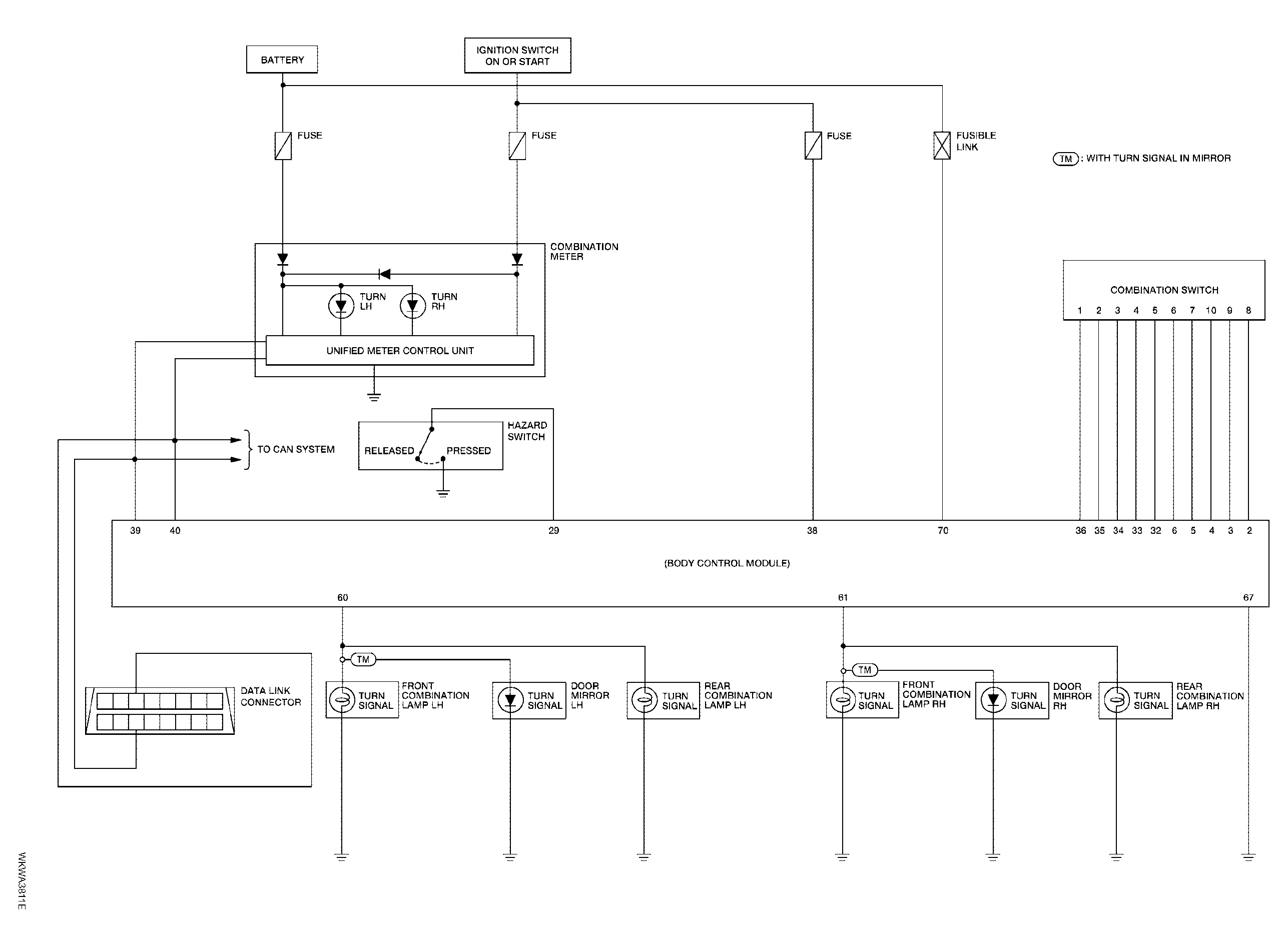

Fig 1: Turn Signal And Hazard Warning Lamps - Schematic Diagram
G04188629Courtesy of NISSAN MOTOR CO., U.S.A.
