3. Check Ground Circuit

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch OFF.
Check continuity between BCM harness connector M20 terminal 67 (B) and ground.
- Continuity should exist.

OK or NG

OK >> Inspection End.

NG >> Repair harness or connector.

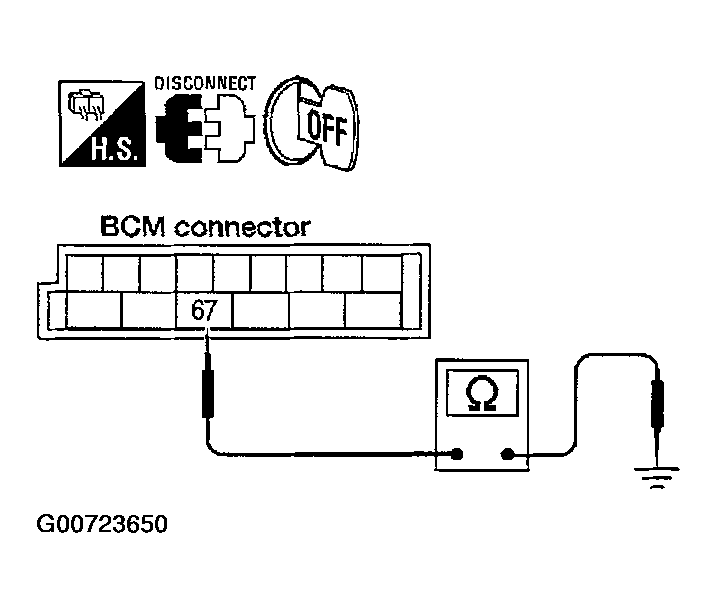

Fig 1: Identifying BCM Connector Test Terminal

Courtesy of NISSAN MOTOR CO., U.S.A.
