1. Check Fuses

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

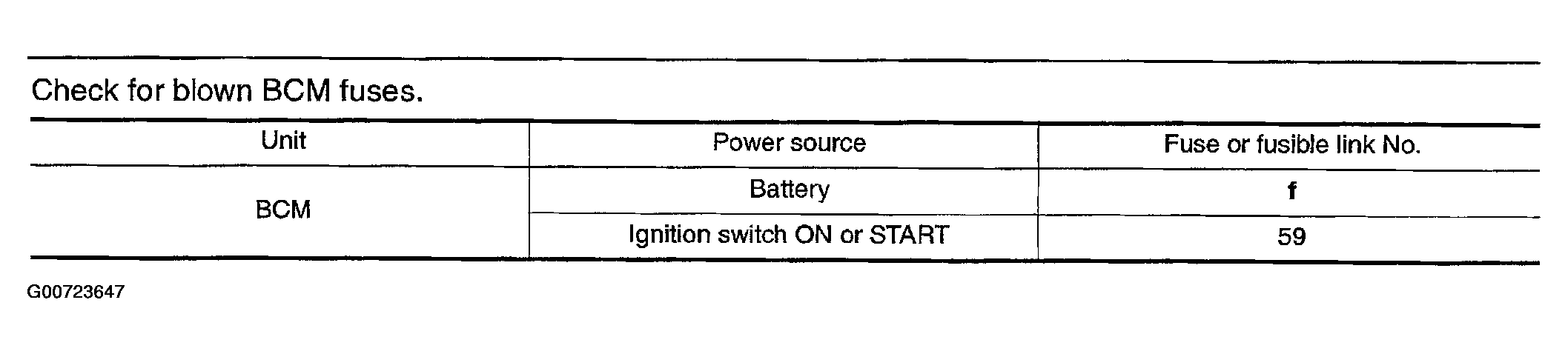

Fig 1: Fuse Identification Table
G00723647Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to WIRING DIAGRAM - WARNING CHIME .

OK or NG

OK >> GO TO 2.

NG >> If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse. Refer to POWER DISTRIBUTION .
