Rear Sonar System Off Indicator

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the rear sonar system OFF switch connector M116, and apply battery voltage (approx. 12V) to terminal 5. Check the rear sonar system OFF indicator operation when terminal 6 is connected to battery ground.

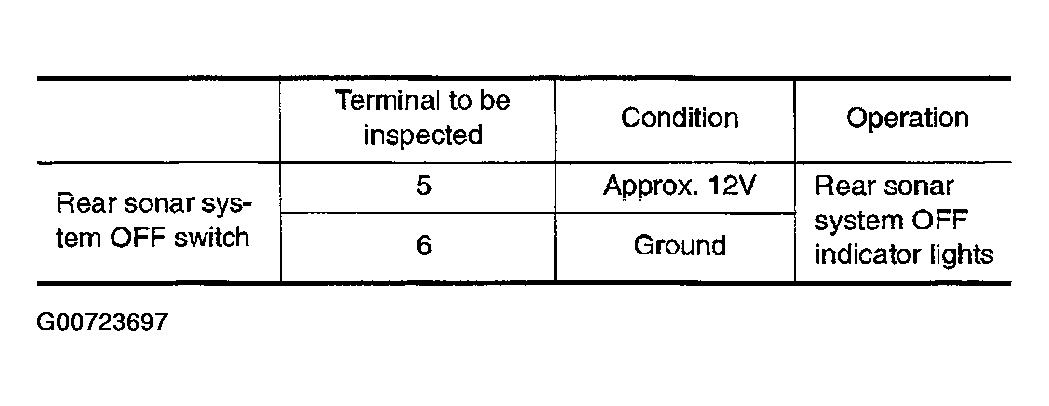

Fig 1: Rear Sonar Indicator Light Operation

Courtesy of NISSAN MOTOR CO., U.S.A.

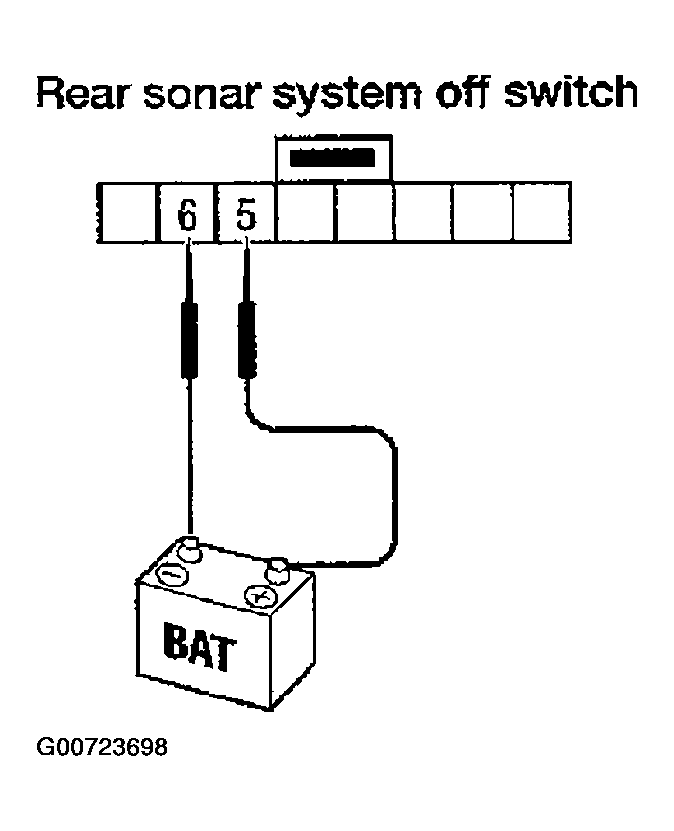

Fig 2: Off Indicator Terminal Identification

Courtesy of NISSAN MOTOR CO., U.S.A.
