Underbody Component Parts

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.

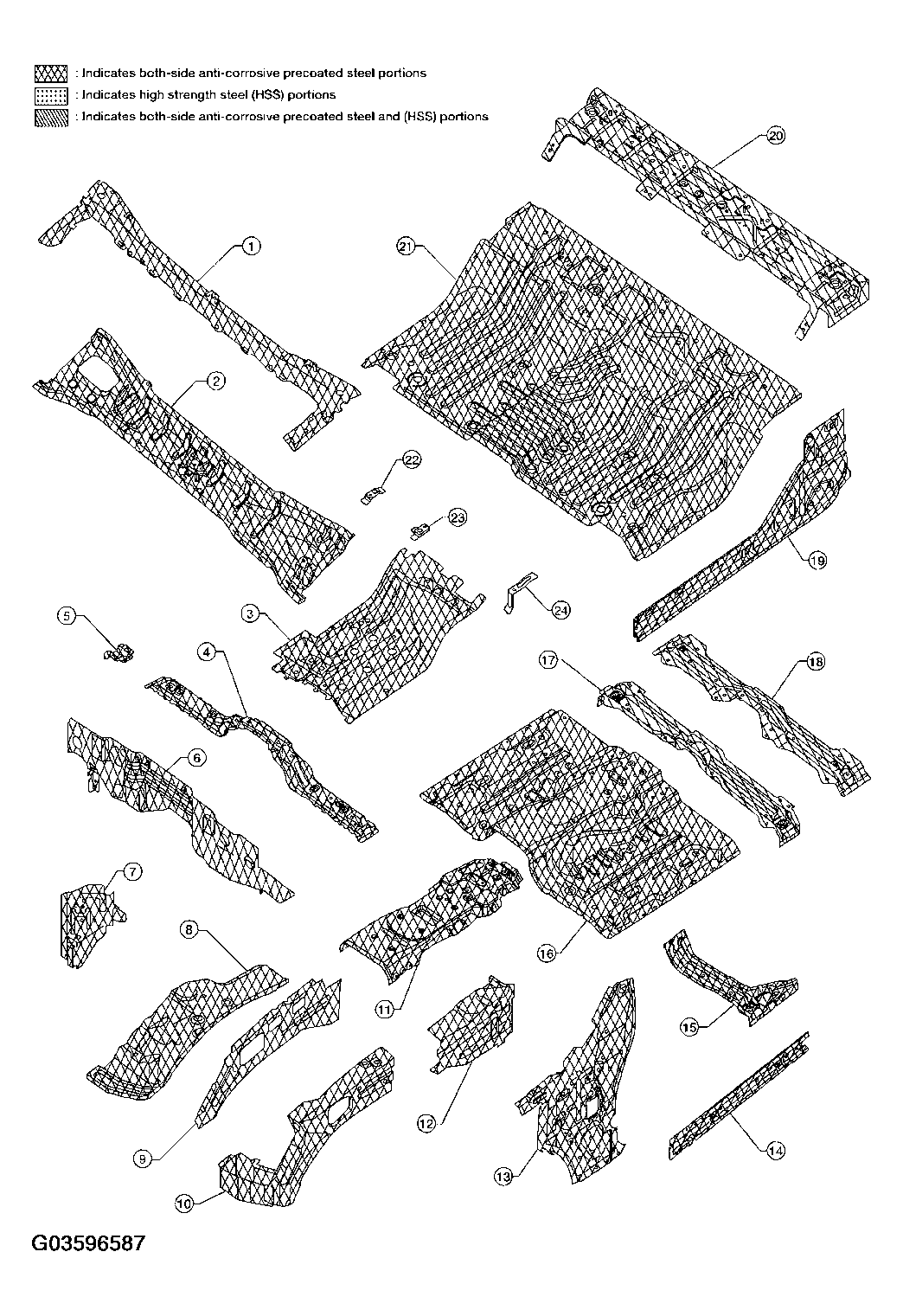

Fig 1: Identifying Underbody Component Parts
G03596587Courtesy of NISSAN MOTOR CO., U.S.A.

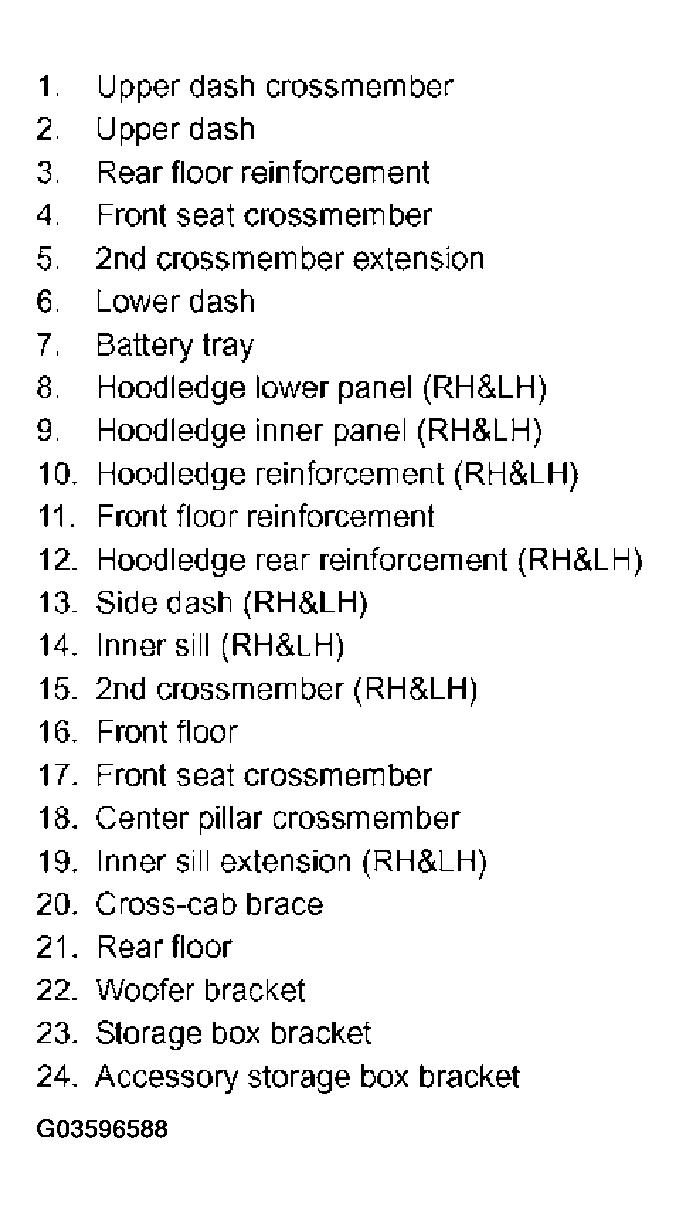

Fig 2: Underbody Component Parts Legends
G03596588Courtesy of NISSAN MOTOR CO., U.S.A.
