Terminals and Reference Values for BCM

WARNING: This page is about a different car, the 2005 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

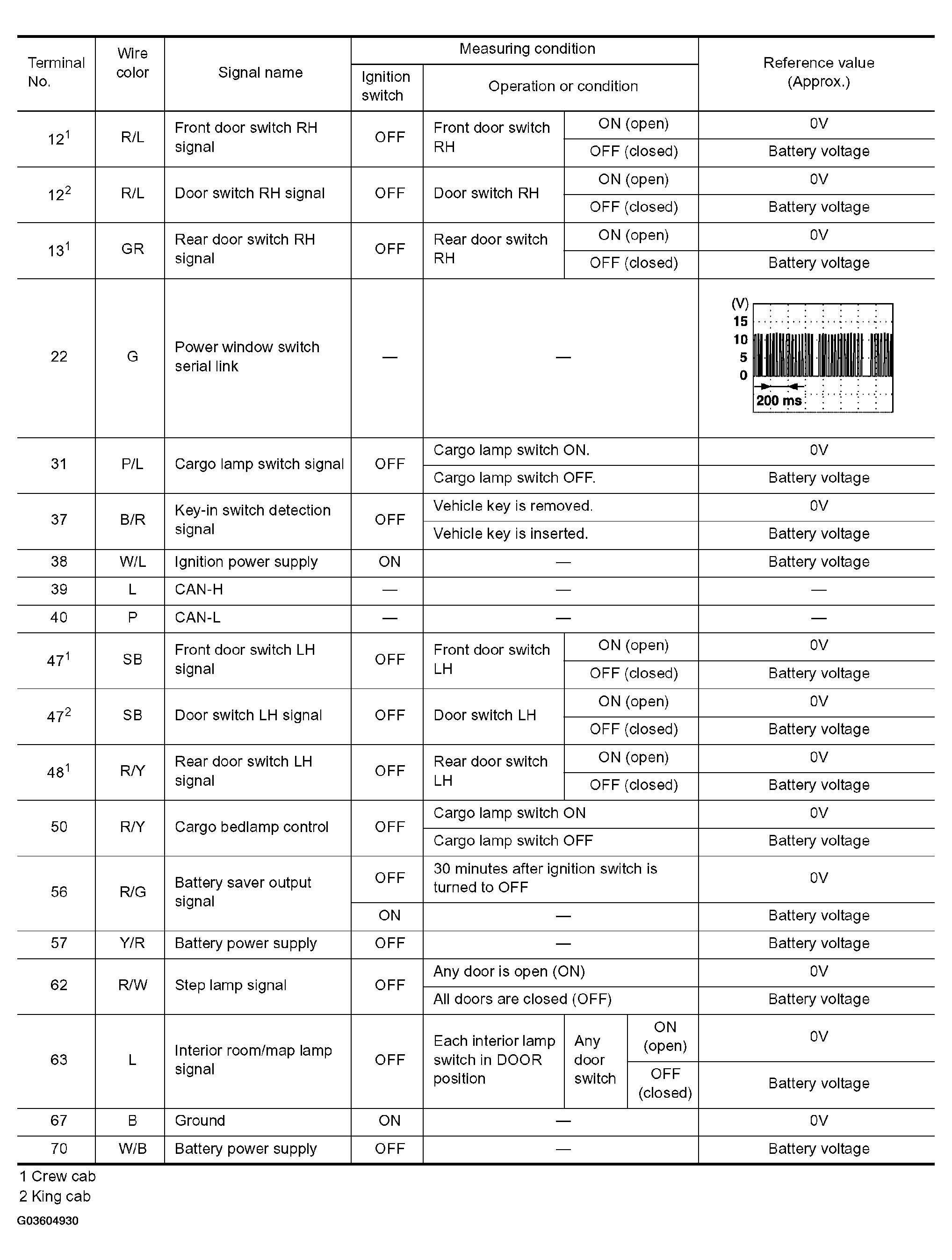

Fig 1: BCM Terminals And Reference Value Chart
G03604930Courtesy of NISSAN MOTOR CO., U.S.A.
