Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove steering column cover.
  2. While pressing tabs, pull lighting and turn signal switch toward driver door and disconnect from the base.

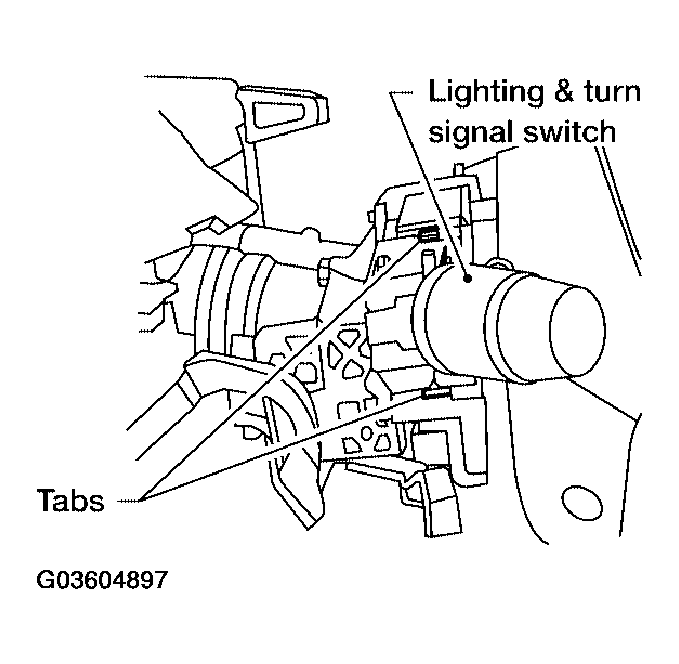

    Fig 1: Removing/Installing Lighting And Turn Signal Switch
    G03604897Courtesy of NISSAN MOTOR CO., U.S.A.
